Rotary seals and shaft seals

Tech-Etch RoHS compliant metalized nylon fabric over polyurethane foam core gaskets are setting a new standard for EMI shielding control. Nickel-plating over a highly conductive copper plated substrate provides excellent electrical characteristics ...

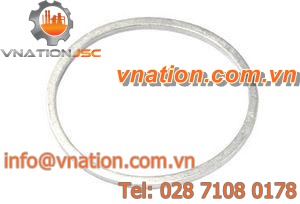

Aluminum Seal INFICON ISO-KF fittings are manufactured according to ISO 2861/1, DIN 28403 and Pneurop 6606. Our quality fittings are the standard components for all vacuum and high vacuum applications. The high quality INFICON components ...

Graphited jointings with aramidic fibre base with rubber NBR binder, with high acrylic-nitril content, asbestosfree, with reinforced stainless steel. APPLICATIONS Water; steam (even saturated); oils; solvents; fuels; chemical agents ...

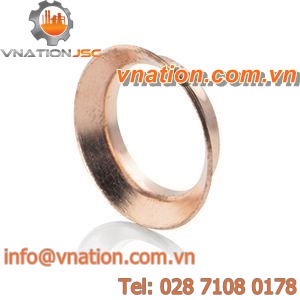

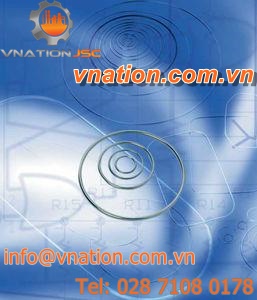

The GFD metal C-rings in this product series are static sealing elements, which you can use for machines and installations with high requirements. In addition to this, the metal C-rings are also regarded as more elastic than standard ...

Temperature limit: -54 ?C - 200 ?C
Pressure limit: 41400000 Pa
Diameter: 1.93 mm - 405.75 mm

Electric panels and machinery covers. Materials Epdm Rubber

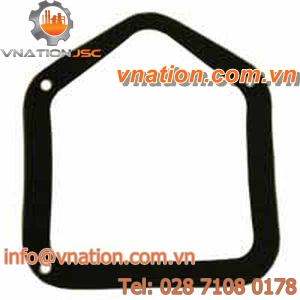

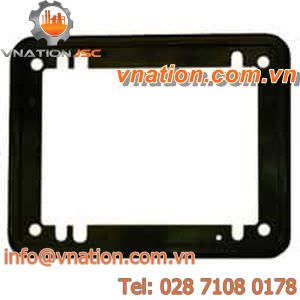

The C11416 is a panel mount sealing gasket fabricated from either ethylene propylene diene terpolymer. This sealing gasket is constructed with an outside diameter of 1.62''. It is constructed with a thickness of 0.06 inches

Features 1/4" shaft versions house two ball bearings that support the shaft of the o-ring seal for the smooth, low-torque operation usually found only in expensive motion feedthroughs Bronze bushings support the shaft on the 3/8" and ...

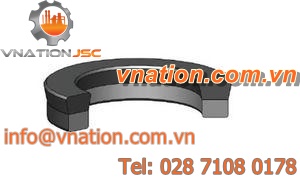

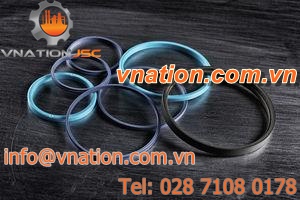

The Advancap? rod and piston seals are designed to provide a cost-effective cap seal solution that prevents extrusion and eliminates O-ring spiral failure in dynamic applications. Each seal combines a cap made from Avalon?, our PTFE ...

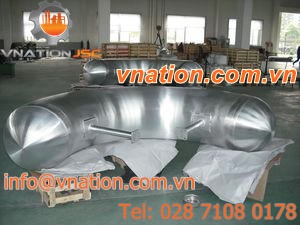

The HV shielding & connection electrodes are used in enabling test circuit to be discharge-free. They are available in tailored versions constructed to meet various custom specifications.

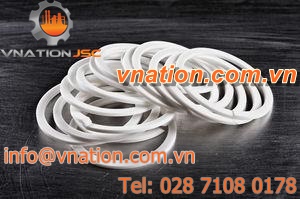

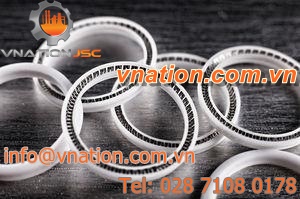

General Information The GFD spring energized PTFE seal is the newest generation of spring actuated Teflon seals. These seals consist of a special precision jacket/lip made of Teflon (or other high performance polymers) and a corrosion ...

Temperature limit: -54 ?C - 200 ?C
Pressure limit: 41400000 Pa
Diameter: 1.93 mm - 405.75 mm

Temperature limit: -55 ?C - 200 ?C

The Quick Connect Fittings C11040, C11105 Series is manufactured by LinkTech. The product is made of sturdy natural acetal (POM) thermoplastic materials, complete with a FDA/NSF grade. It also features integrated Buna-N O rings. The ...

Gasket Features Black soft EPDM closed cell foam.

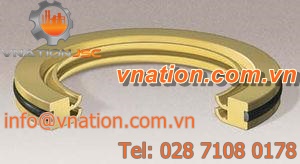

With Greene. Tweed's ACGTTV-HP/ACGTLT,,-HP seals extrusion gaps and high pressures are no longer a challenge. The ACGT-HP is a bidirectional design while the ACGTL-HP is designed for unidirectional applications. Both variations are extremely ...

Use:in combination with the section bars Part 8032P and 8018P; liquid, dust and noise seal. Material PVC.

The PTFE provides different groove rings from different high performance plastics for the valve industry. They also offer ball seats, and seals with and without grooves, with a certain diameter or angle on the sealing side. These tools ...

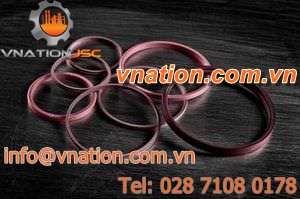

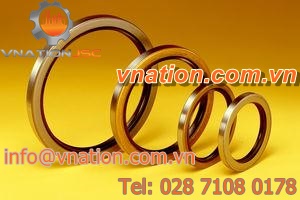

Radial Lip Seals with PTFE Sealing Lip A reliable sealing for difficult and extreme working conditions The new generation of GFD-rotary shaft lip seals were especially developed for useunder difficult and extreme conditions. The superior ...

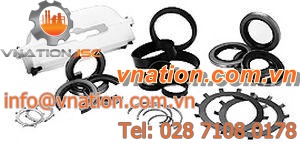

These linear bearing seals and retaining rings features internal and external retaining ring types, a size range of 1/4" to 4" along with adjustable, closed and open seal types. These bearings could either be pillow block, ball bushing ...

Diameter: 15.05 mm - 26 mm

Straight EMC Connector NW10 - NW48 "VMEVB" Range Low-ohm screened contact

Eberhard can supply gaskets in different materials and thickness to use with our latches to help water and debris from entering your door compartments and protecting your valuable items inside. Whether you are looking for EPDM or rubber ...

Seal Science designs and manufactures rod seals, piston seals, wipers, scrapers, and sealing systems for industrial hydraulic actuators and valves. These include the range from O-Rings and Urethane U-Cups to PTFE/O-Ring combinations and ...

It is a liquid material that seals various types of flange surfaces. Once cured, it forms a rubber-like elastic body, and it has excellent vibration absorption property as well as shock- and heat-resistance.

Diameter: 0.25 in - 0.75 in

The 33K system is a seal for rotating shaft, manufactured by A.W. Chesterton Company. This product features a split seal structure used for protection of bearing, gearboxes, pumps and rollers. It excludes the requirement and costs for ...

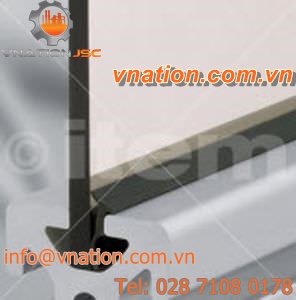

Door Lip Seal 8 - XMS, which is installed in the special groove of Profiles XMS, keeps door gaps sealed shut. Door Lip Seal 8 - XMS projects into the special rebate on Door Profile X 8 40x40 - XMS, creating an all-round seal. To accommodate ...

Diameter: 20.73 mm - 43 mm

REIKU offers EMC/EMV connectors that are used to terminate the EMI braided assemblies. The multiple piece connector has a inner metal half shell which has a star shaped inner web of teeth that "bite" into the metal brad in order to create ...

Diameter: 13 mm - 61 mm

Seal Science designs , machines, and molds pneumatic seals for static, reciprocating and rotary applications. It's quite possible that one of the designs in our PolyKing? catalog will meet your needs. Pneumatic actuation systems are ...

Brazing and Glass-to-Metal Sealing Jigs Sealing Jigs for Brazing and Glass-to-Metal Made of RINGSDORFF? Graphite Graphite jigs are used in the production of semiconductor encapsulations by glass-to-metal sealing or brazing connections. ...

Diameter: 7.65 mm - 17.17 mm

The 30K series by A.W. Chesterton Company is a bearing protection seal which features its high performance lip seal. For this specific tool, it is ideal for dynamic rotary sealing applications. Using this tool, it gives an excellent service ...

For fastening and sealing panel elements of differing thickness which are inserted into profile grooves 5, 6, 8 and 12. The version in grey blends in well with the natural anodized surface of the profile. The elastic material is resistant ...

External or Internal Interactive Sealing Solutions APM?s custom molded dynamic elastomeric seals are designed to transmit mechanical energy, either internally or externally applied, depending on your application and environmental challenges. ...

401612 -- Copper-Coat? Aerosol, 9 Wt Oz : High temperature, high quality aerosol metallic gasket sealer. Prevents compression loss on premium gaskets. Ideal for head and intake gaskets

Internal diameter: 0.09 in - 1.31 in
External diameter: 0.2 in - 2.25 in
Thickness: 0.03 in - 0.25 in

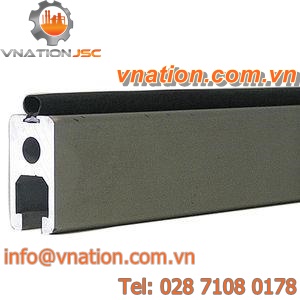

The 5-110.01 is utilized as a basic door profile for lids, doors, and in paneling. The unit is just simply pushed onto the sheet metal edges. Also, the device can be used even without the need for warping or mitering. The product ...

Coating Carriers for Semiconductor and Solar Applications Key requirements to ensure a long service life for PECVD carriers are high mechanical strength and purity, as well as a dense material structure to minimize plasma erosion. SGL ...

Temperature limit: -30 ?C - 105 ?C
Pressure limit: 150, 250 bar

Chesterton provides comprehensive engineered polymer solutions for an array of applications. Its range of polymer seals is designed to deliver outstanding performances in a vast gamut of installations spanning the pneumatic, rotary and ...

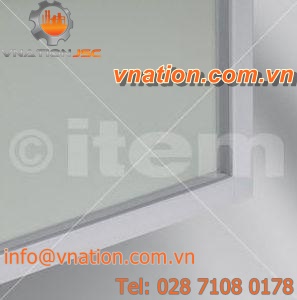

Lip Seals secure and seal panel elements that are fitted directly into the profile grooves. The new version in grey blends in well with the natural anodized surface of the profile. Thermoplastic elastomer is resistant to cleaning agents ...

The APM line of self-sealing washers and fasteners are designed to seal out air, water, lubricants and other liquid or gaseous contaminants. SEELOC? self-sealing washers are vibration-resistant, each having a silicone rubber section, ...

Seal Master? inflatable seals inflate and deflate in three basic directions of operation: th eaxial (or normal to the mounting plane) direction, the radial-in direction, and the radial-out direction. Each of these inflation directions ...

Developed in answer to industry's need for a better way of sealing components in place during manufacture, PRECOTE? 5 has been approved worldwide by automotive manufacturers and has proved invaluable in electronics, telecommunications, ...

The 5-110.02 is a channel sealing profile from Dirak. It features door seals which are made of PVC. These seals enable the application of the profile in seal channels. The door seals are available in different models for different door ...

The Ultra Black? Max. Oil Resistance RTV Silicone Gasket Maker is a fast curing formula that meets performance specifications of OE silicone gaskets. The tool is ensured to be sensor-safe and non-corrosive with low odor. It is capable ...

Temperature limit: -30 ?C - 100 ?C
Pressure limit: 250, 150, 400 bar

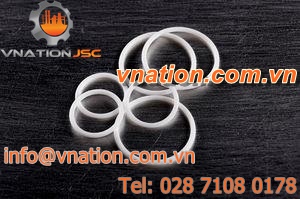

Ptfe CC manufactures a wide variety of components, which includes static seals. The static seals are available in four models such as unsplit, split, envelopes and as well as O-rings. A static seal is a sealing component that is ideal ...

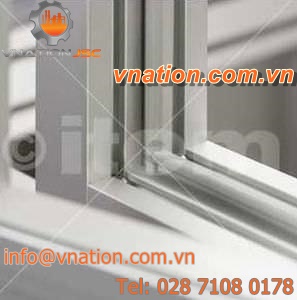

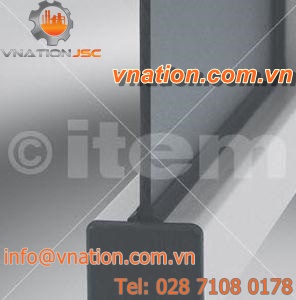

Double-Lip Seal 8 is used for fitting panel elements directly into grooves of Profiles 8. It provides a sealing function and prevents direct contact with the aluminium profile. Double-Lip Seal 8 completely encloses panel elements of thickness ...

Metal-jacketed gaskets are particularly suitable for sealing flat surfaces of heat exchangers, gas pipes, cast iron flanges, and autoclaves and similar. By their sealing efficiency, provided by exerting strong pressure on circular rims ...

Examples of ring seals, which are used for laboratory testing and production line fixtures. (The seal shown on in the image gallery on the right has an outside diameter of only one inch.)

Diameter: 11.5 mm - 520 mm

The Ultra Grey? Rigid High-Torque RTV, manufactured by ITW Devcon, is a silicone gasket maker equipped with a high durometer. It has a maximum fill gaps of 0.25 inches and an operating temperature that ranges from -54 ?C up to 260 ?C. ...

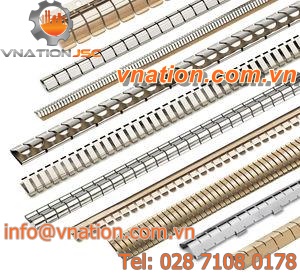

TBA Protective Solutions wide range of EMI Shielding Be/Cu Beryllium Copper Fingerstrip Gaskets are perfect for EMI shielding of enclosures, doors and racks. Be/cu fingerstrips provide maximum spring properties and excellent conductivity ...
