Spray nozzles

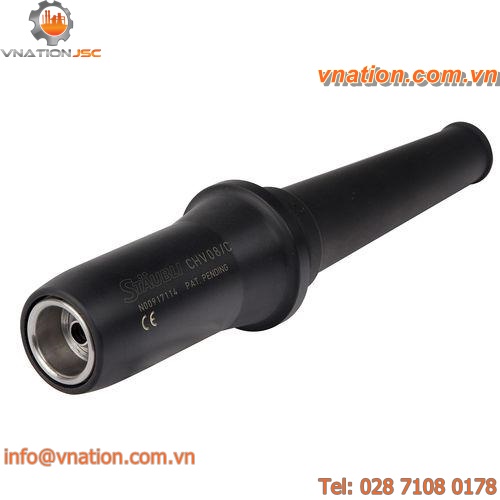

Refuelling vehicles with hydrogen in a station needs a simple and safe manual connection. Known for its expertise in connection and refuelling, St?ubli ensures users a reliable mechanical locking and total safety during handling thanks ...

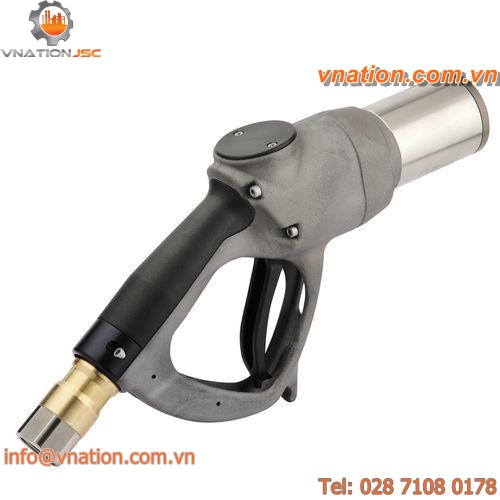

This LPG refuelling nozzle is lightweight, ergonomic and equipped with St?ubli flat-surface anti-emission technology, guaranteeing very low levels of gas leakage into the atmosphere and eliminating any risk of burning. The integrated ...

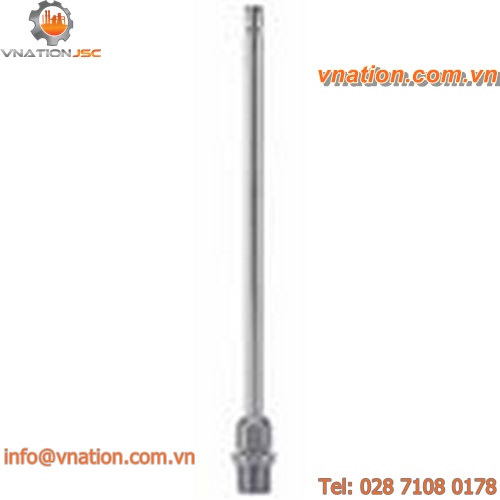

NPT Back Blow Air Nozzle has been designed to effectively blow debris and liquids from pipe or hose inside diameters, axle housings, bores, holes, internal threads and other internal part features found in hydraulic cylinders, gear boxes, more.

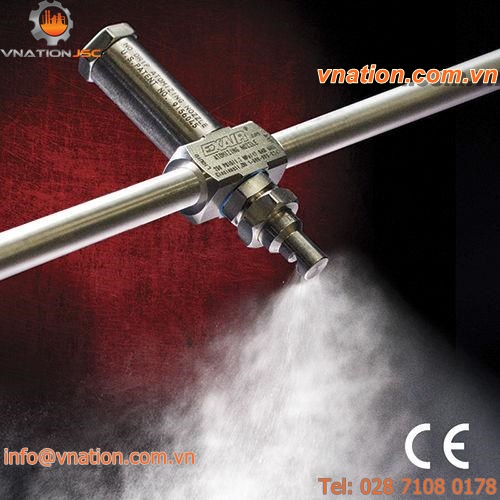

EXAIR?s new 1/2 NPT large external mix spray nozzles atomize fluids up to 303 gallons per hour. External mix nozzles are great where a high volume of liquid is needed. They can be used on liquids with a viscosity up to 800 cP.

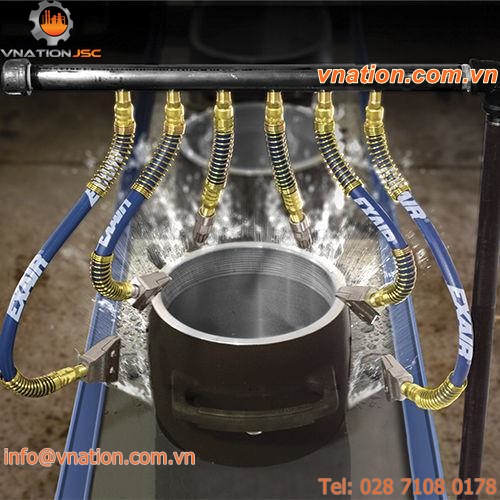

EXAIR's patented 1/4 NPT No Drip Internal Mix deflected flat fan atomizing spray nozzle atomizes fluid and sprays at a right angle to the nozzle orientation. This allows spray to be placed precisely where it is needed when the mounting ...

A simple solution to reduce excessive air consumption and noise level on compressed air blowoff operations. EXAIR Air Nozzles and Jets produce outlet flows up to 25 times compressed air consumption using a small amount of compressed air ...

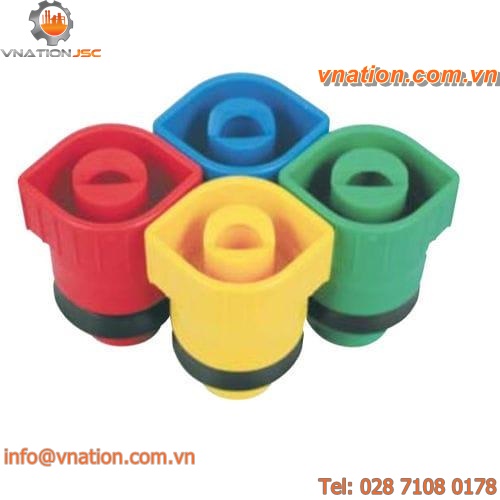

With this complete range of flat fan jet nozzles,connected to the specific sphere ZBA QQN1 D6 and suitable for any existing PNR plastic swivel clamp, you can improve your machines design and reduce maintenance time at a negligible cost. Product ...

Orifice diameter: 3 mm - 14 mm

Orifice diameter: 12 mm - 42 mm

Orifice diameter: 8.7 mm - 28.5 mm

Orifice diameter: 2.2 mm - 14 mm

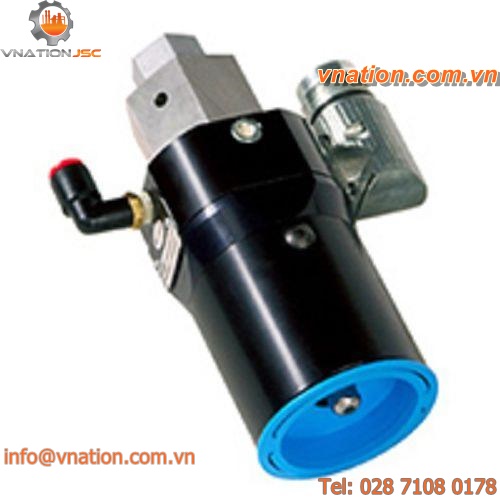

The CleanSpray XT system is designed for automatic nozzle cleaning without halting normal production. It sprays a low pressure, short-duration mist of water directly on the nozzle, washing away excess coating between lacquer sprays ...

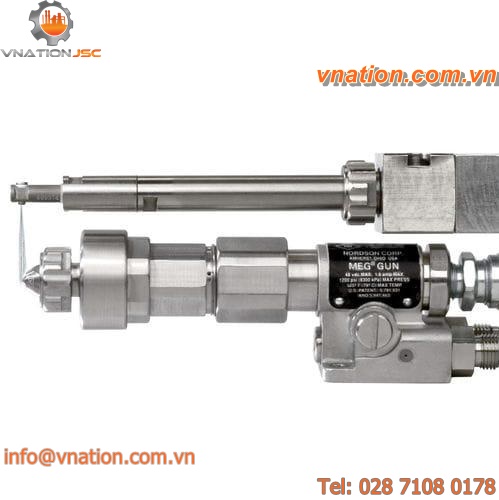

Designed by Nordson, the cSelect nozzles provide consistent accuracy and piece-to-piece performance. They have been designed to uniformly carry out the internal lacquer spray of specific can sizes and types. They have been manufactured ...

Swirl Applicator The Nordson? Swirl Applicator with its modular electric swirl nozzle dispenses material in a variety of pattern widths with fine edge definition for precise application and consistent coverage. The Swirl applicator ...

Orifice diameter: 0.05 mm - 0.76 mm

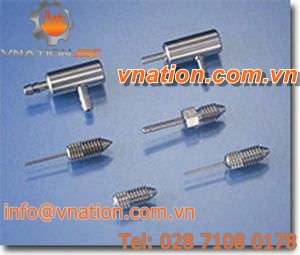

The Lee Company makes many atomizing nozzles in air-assisted and airless forms to create a 50-degree hollow cone spray pattern so that atomization is easy to manage. This unit works without an outside air supply and with a 20 psi ...

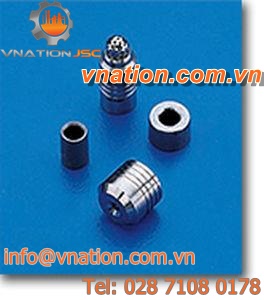

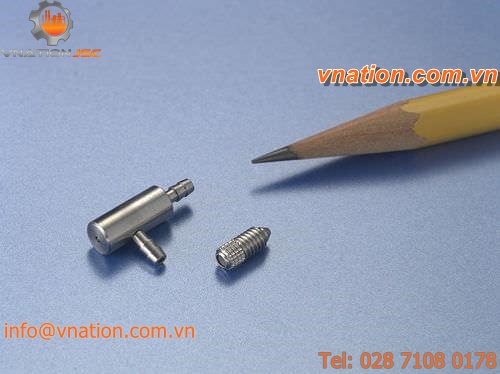

The Lee Company offers two types of miniature, precision nozzles for hydraulic applications: Atomizing Nozzles and Targeting Nozzles. Both types are constructed entirely of stainless steel and can be installed in any attitude.

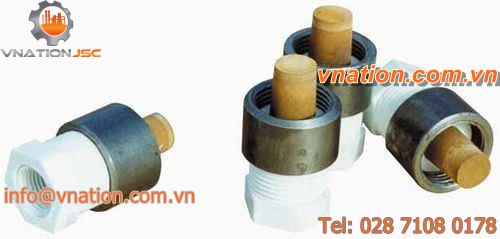

U060 and U025 are two types of aeration nozzles that can be easily fitted on silos and bins from outside. These are particularly suitable for applications such as retrofitting, and those where the inside of a bin cannot be accessed. Consult ...

Label dispenser HS/VS from cab provide are easy-to-handle and cost-friendly. Two designs are offered by cab for accurate dispensing based on position: HS can dispenses labels horizontally in a bottom leading fashion. VS dispenses ...

We think you are going to be 'blown' away with the latest products to join our VMG Blow Gun Series, making it one of the most complete ranges of its kind in the market. We have introduced two new nozzle covers made with HNBR rubber for ...

Orifice diameter: 20 ?m - 60 ?m

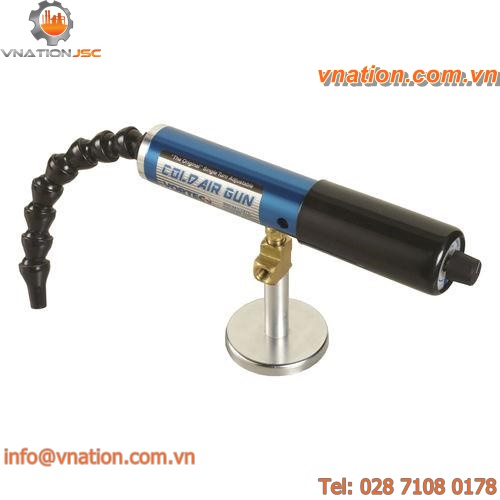

VORTEC's Model 610 Adjustable Cold Air Gun is perfect for machining applications as well as cooling parts and industrial processes. This is highly remarkable because of its adjustable features. This is very convenient to the consumers ...

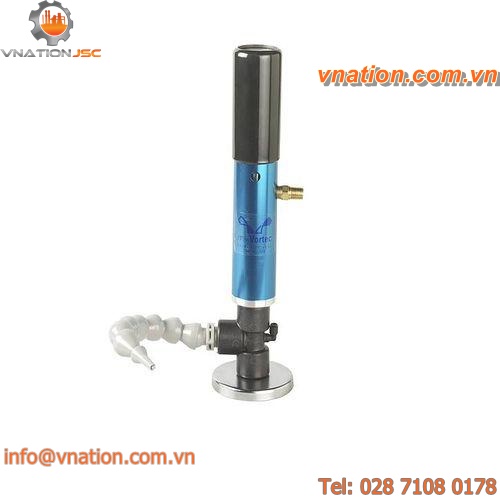

ITW vortec has introduced this cold - air gun for fulfilling the requirement of extra cooling in the applications with micro lubrication. There is a vortex tube in the device that helps in converting the normal air to cold air with a ...

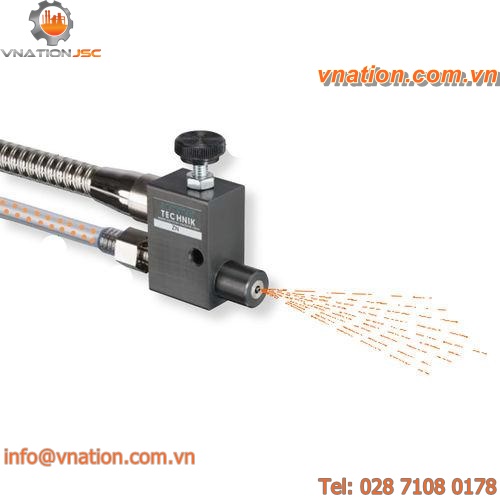

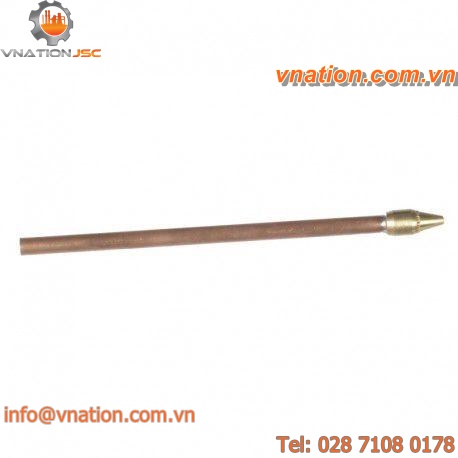

- With or without metal hose - For thin fluids To spray thin oils and fluids (max. viscosity 350 mm?/s) with a targeted effective range. Example: Oils are sprayed in manufacturing areas. The more automatic this process is, the ...

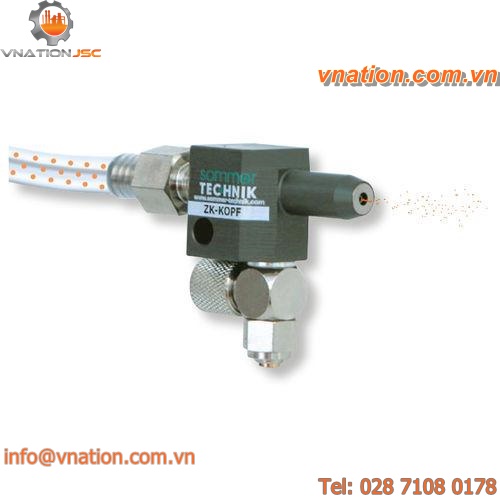

Good things come in small packages Often there is not a whole lot of space available inside machines, which can cause technicians a lot of headaches - especially if a lubricating system has to be retrofitted. The compact design of ...

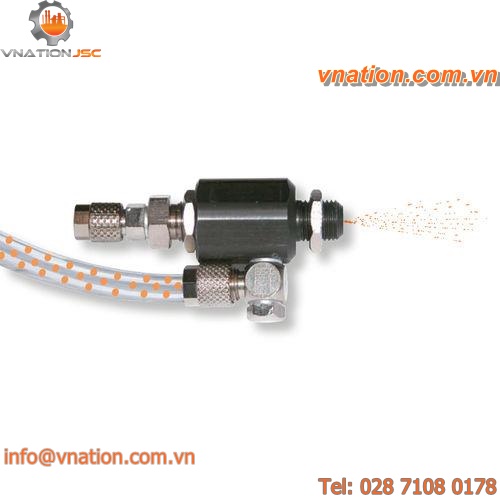

When it comes to suctioning and spraying as much fluid as possible, this atomizer is just the right one. It is ideal for scent spraying lines, water humidifying units indoors, or for direct irrigation e.g. of wood. An uncomplicated, functional ...

The new S-beam nozzle series (?straight beam?) is created to provide an unobstructed straight jet with a consistent output pressure, the result of high-quality nozzle finishing. An application repeatable process is assured for both the ...

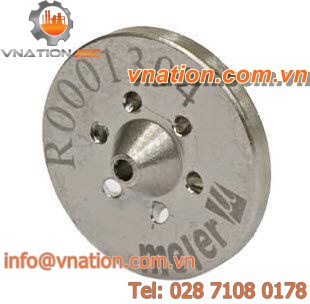

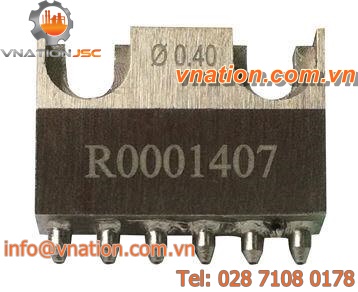

Meler multiline nozzles are fixed nozzles designed for bead application in sift-resistant systems. They are available in a range of shapes and configurations. The standard range includes three basic versions - BMV or vertical multiline ...

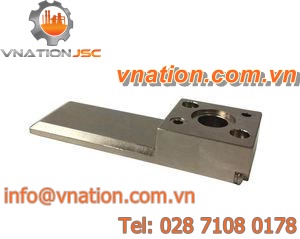

The E Series assembled by Meler, is a nozzle that features a plate shape construction, used along swirl and spray guns. It is best used with the E gun series, ECA/ECAI swirl handguns series, and spray gun. This E Series nozzles consists ...

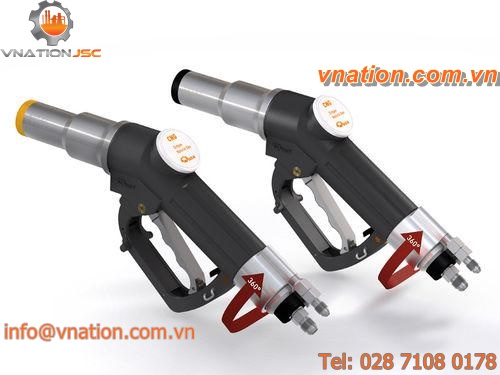

The first WEH? user friendly Pistol grip CNG fuelling nozzle has been introduced - now redesigned in the pistol grip style familiar to all fuelling station users. Retaining the same outstanding technical functionality as our TK16 CNG ...

The new S-beam nozzle series (?straight beam?) is created to provide an unobstructed straight jet with a consistent output pressure, the result of high-quality nozzle finishing. An application repeatable process is assured for both the ...

Meler multiline nozzles are fixed nozzles designed for bead application in sift-resistant systems. They are available in a range of shapes and configurations. The standard range includes three basic versions - BMV or vertical multiline ...

The E Series assembled by Meler, is a nozzle that features a plate shape construction, used along swirl and spray guns. It is best used with the E gun series, ECA/ECAI swirl handguns series, and spray gun. This E Series nozzles consists ...

FIELD OF APPLICATION Originally designed for gluing carpets, although its current application is in gluing large boxes (longitudinal seam). THE RIGHT NOZZLE FOR EACH APPLICATION Wide range of configurations. Multiple holes with ...

Superfine tips/nozzles are designed for precision spraying with the ultimate in high quality atomisation. The unique design, which incorporates a matched pre orifice within the assembly, enables users to greatly reduce fluid pressures, ...

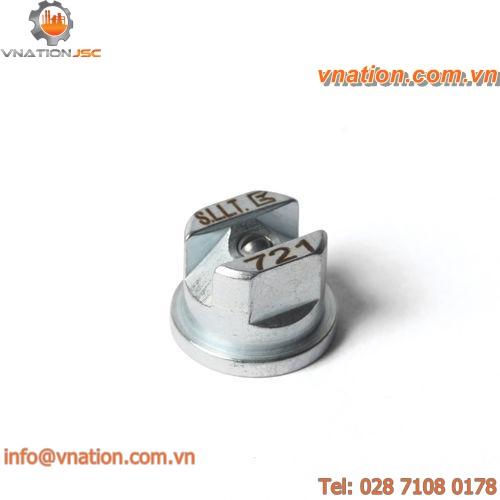

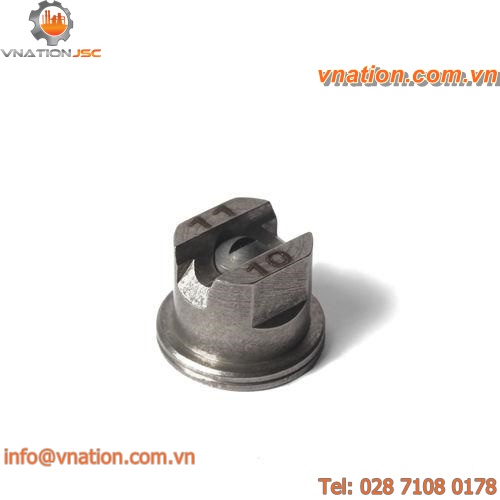

The Standard industrial nozzles/tips are typically seen on automated lines, where flow rates can vary from 1l/min to 14 l/min, with spray angles going from 10? to 110?. The cutting of the Tungsten carbide inserts is critical where pattern ...

The LM Line Marking nozzles/tips are designed for marking on roads, sports arenas, parking lots and other demanding marking applications. The cutting process of the tungsten carbide inserts is controlled so that even coverage across the ...

The Contractor I from Exitflex is an airless flat tip. The unit has a carbon steel, black zinc-plated body. All Exitflex's flat tips incorporate good quality tungsten carbide inserts, providing optimum erosion resistance for high-pressure ...

The 63-513, manufactured by Exitflex, is an air assisted airless tips that integrates high-quality tungsten carbide inserts. It is capable of providing optimum erosion resistance in all situations. Even though it has a robust design this ...

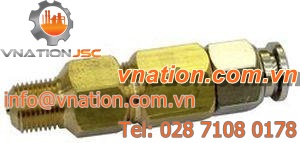

Coaxial Nozzle Flat Cone 60? Coaxial Nozzle for air/oil lubrication systems.

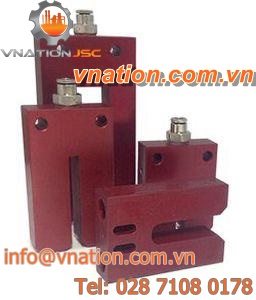

These special nozzles are specific for band saw that allows lubricating both the working area and the side surface. Available with: - 1 inlet and 3 outlet - 2 inlets and 5 outlets

Single Pipe Nozzle Flat Cone 60? Single Pipe Nozzle for air/oil lubrication systems.

Threated coaxial nozzle with cone shape spray Coaxial Nozzle with head threaded and shape spray

Orifice diameter: 0.06 in

URACA's TWK200-600 Tank Cleaning Head are controlled by high pressure water levels. The component showcases a main compact water jet, total operating pressure of 600 bar (8,700 psi), and a weight of 23.5 kg. It also allows reduced pressure ...

TWK125-1600 tank cleaning head are operated by high pressure water. It is characterized by its compact water ejection, small displacement circle and reduced pressure losses. This equipment can be used through a hose or by an established ...

Orifice diameter: 15 mm

Orifice diameter: 2 mm - 3 mm

Orifice diameter: 2 mm - 3 mm

Orifice diameter: 3 mm - 4 mm

Orifice diameter: 3 mm - 4 mm

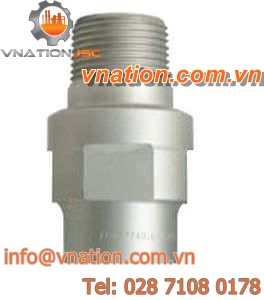

Features Comparing with conventional flat spray nozzles - EJVV can produce thicker flat spray. Spray angel: Spray thickness=3~4:1 - Minimal clogging with bigger free passage diameter. - Bigger mean droplet diameter. Applications ...

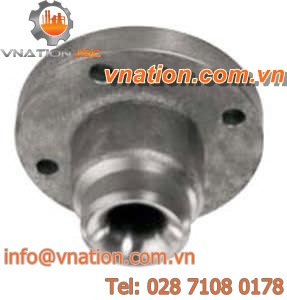

Features - Thicker flat spray pattern comparing with conventional flat spray nozzles. - Minimal clogging with large free passage diameter. - Minimal variation in spray angle, even at a high turndown ratio, 1:3. - Wide coverage with ...

Features ? Minimal angle and distribution variation at high turndown ratio. ? Suitable for high turndown ratio. Applications ? Cooling: steel plates (continuous casting mold lower part and upper zone...etc), slab, casting, ...

Orifice diameter: 1 ?m - 20 ?m

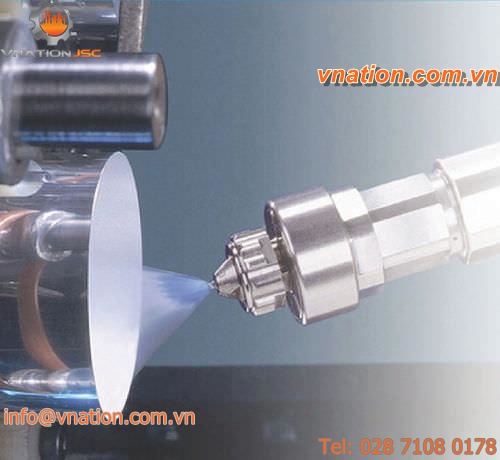

This type of atomizer uses a vaned, serrated or perforated disc rotating at high speeds. The centrifugal energy provided by means of an electric motor or an air turbine drive translates into formation of a fine horizontal droplet spray. With ...
