Motion control cards

Preset Fixed Speed Stepper Control using on-board DIP switches or variable RPM via 0-5 VDC input. 7 Dispense Modes. Automatic current reduction, with stall detection & restart. Compact Size: 3 1/2" x 3 1/4" x 1 1/4 " ...

Feature - Control section with integrated driver - 2-phase, unipolar current driving method - 4 axes (with a liner interpolation function) Axis Control Specification - Number of axes : 4 axes (with ...

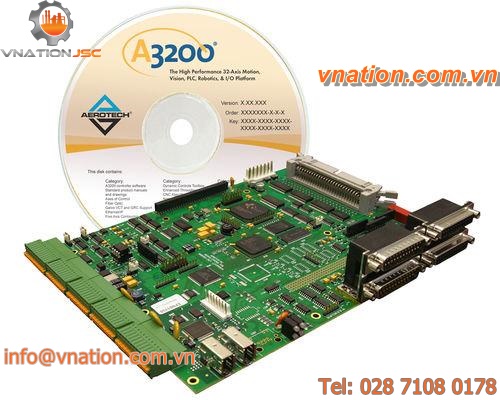

... Nservo-OEM Control Card from AEROTECH, completes motion capabilities like velocity profiling, trajectory modification, and fast input-output. It is configurable in native RS-274, C, .NET, ...

The Corvus PCI is a stepper motor controller that is ideal for use in lesser than or equal to 3 axis in a PCI port. The unit has a rated resolution of lesser than or equal to 690,000 pos./revolution, and a rated velocity ...

... semiconductor production device, a multi-axes robot or an X-Y robot that permits linear interpolation at multi-axes interval. This motion control board for PCI has the ability to use an encoder supporting differential, ...

... for NT/ 2000/ XP/ Vista. The superior quality apparatus is also made with a driver software mainly for the isel-CAN-CNC controller.

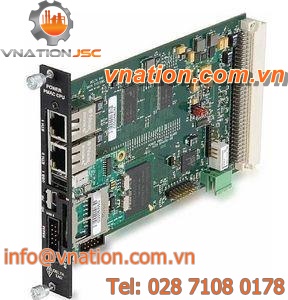

... and most flexible controller that Delta Tau presently offers. It is intended to be used in a 3U UMAC Rack, which is a modular rack format permitting the user to configure his or her rack with whatever I/O, servo control ...

... independent, bypass or non-stop switch, driver commutating, door-opening delay button input etc.; Combined with car top control board EC-CTB.

... in I/O.The Clipper Controller offers a full Turbo PMAC2 CPU and provides up to 32 axes of servo or stepper control with 32 digital I/O points.

Car top control board EC-CTB CAN communication, RS485, RS232 communication available; Analog weighing input and switching value weighing modes available; Up to 64 floors control; Arrival ...

... monitoring can be done with the host computer?s Ethernet interface. Hardware and software are controlled by 16-bit three-axis analog and digital galvanometer control technology, which ...

Control Modes Gearing [Accelus] Position [Accelus] Velocity, Torque Command & Communications RS-232 Stepper commands [Accelus] Master encoder [Accelus] ?10V position [Accelus] ?10V velocity/torque PWM velocity/torque Feedback Digital ...

... series multi-axis motion controller is a network-type, modular motion controller. The control card fulfills the basic motion planning, ...

... applications. All the I/O boards are widely applied in various fields of automation systems. In brief, digital I/O boards are for monitoring and controlling logic signals such as button, switch, relay, ...

Control Modes Indexer, Point-to-Point, PVT Camming, Gearing Microstepping Servo Mode Command & Communications CANopen DS-402 RS-232 ASCII Stepper commands ?10V position/velocity/torque PWM velocity/torque Master encoder Feedback Digital ...

... realizes real-time multi-axis motion. The GTS motion controller is therefore suitable for some fields which require accurate motion control such as CNC and robotic. The ...

The RS485 I/O Controller is a versatile LED display control board that connects to the RS485 Bus of Pertronic Fire Alarm panels as an LED Mimic type. A hardware peripheral board allows it to be used for ...

... Architecture - IEEE 1394 - Digital drive network - Industrial PC Based Controller - Pentium powered with up to 32 axis of control - Flash RAM MotionBASIC System Card ...

... based multiply-axis point-to-point motion controller can control 1-4 servo or stepper motors. Thanks to its simplified wiring structure, this low cost controller has excellent and reliable ...

... motors so that positioning in the nanometer range is possible with highest performance. One of the big advantages of our SMC-controllers is the possibility to drive the stages with extreme high resolution.

... , 19200, 38400, 57600, 115200. Applies 66MHZ main frequency, 32 bits of RISC CPU; 4-axis servo/step control; kinds of single-axis or multi-axis motion; Random 2-4 axis linear interpolation, cache interpolation ...

... navUp to 8 axes of motion control navControls servo motors, step motors, and hydraulics navMaximum encoder input rate up to 22 MHz (Accelera) navNon-volatile program memory navMultitasking of four independent programs ...

... rest 2 channels used to control laser power; One channel switch signal for laser control, one suppression signal for first pulse, one channel PWM signal; 9 channels general digital ...

Motion Control Card 600 Series This card is an easy-to-use, plug-and-play and cost effective solution for single and multi-axis motion control applications. It may ...

1)RTEX BUS motion control card for welding machine 2)Supports any parameter of axis servo 3)independent control 4)ISO2008,CE Description: 16 axes RTEX motion control ...

... is a family of advanced technology controllers for all motion applications, bringing full-feature capability for the most sophisticated requirements.These controllers give you blended ...

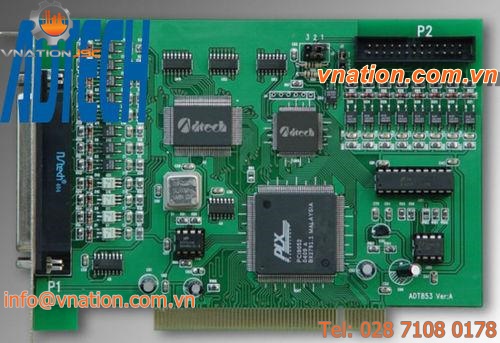

1) 2-axis PCI Bus Motion Card 2) 32-bit PCI bus, PNP 3) Error is lower than 0.1% 4) 16 input, 16 output; The ADT853 card is a high performance two-axis motion ...

The RDC-20 module of ACTIS Computer is a two channel resolver/ synchro to digital interface according to the ANSI/VITA-4 1995 specification. The RDC-20 module can receive at its inputs all formats of resolver or synchro ...

... mode: pulse + direction, pulse + pulse; 6-axis servo/stepper motor control; each axis can control independently; 2-6 axis linear interpolation ,arc interpolation,multi-axis continuous ...

The RDC-20 module of ACTIS Computer is a two channel resolver/ synchro to digital interface according to the ANSI/VITA-4 1995 specification. The RDC-20 module can receive at its inputs all formats of resolver or synchro ...

... manufactured by Pro-Dek, and is a PCI bus-based motion controller that has the capacity to accommodate up to 10 axes of user-definable servo and stepper motion control. Each axis of ...

The PCIx series, manufactured by Pro-Dex, Oregon Micro Systems, is an advanced multi-axis programmable motion control card. It is equipped with two or four axes which support both servo ...

The 3XDAC card is designed for controlling galvo-controlled servo mirrors or XYZ piezo-controlled devices utilized in fluorescence microscopy: when using the mirrors, ...

The product is a motion controller, MAXv. It is used for motion control of a stepper and/or motor control with the help of the VME/VME64 8 axis motion ...

The technology module MC 2000 motion coordinator can control up to four servo axes of the ARS 2000 servo drive series in a multi-axis-coordinated way. With the MC 2000, complex motion control ...

The MAXnet 5-axis motion controller for stepper plus servo motor control utilizes a single 4 x 6.5" card, complete with either an Ethernet and/or a RS232 communications interface. Operators ...

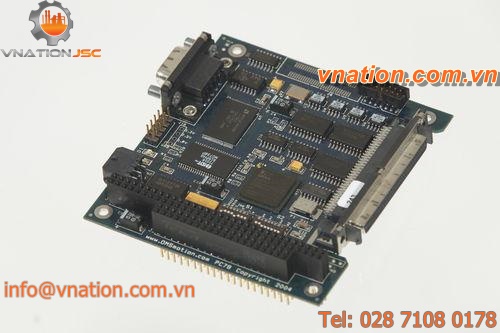

The PC78 Multi-Axis Motion Controller is equipped with 4 axes of stepper control with encoder feedback or servo control. The encoder feedback functionality supports quadrature encoders ...

JVL has developed a driver that is compatible with the Parker Hannifin Digiplan in terms of connectors as well as functionally. The JVL Driver also has improvements in many areas such as - high efficiency and MOS FET technology which ...

... Stand-alone Operating System (DiSOSTM) is available for the SuprStik, that provides local control through the use of switches and displays in addition to full control from an optional host computer.

... -10%, 50/60 Hz. Electronic control system with microprocessor and internal memory for recording operating parameters. Up to 5 red seven-segments display to indicate temperature and humidity value. Up to 5 leds. Digital ...

... Configurable virtual encoder output for external position control or master digital shaft / gearing Encoder input for digital shaft / gearing slaving RS232 serial port and RS485 serial ...

... Size 17 to 42 motors ? Auto current reduction ? Opto-isolated step and direction ? NV RAM for stand-alone operation ? 32 axis control from one COM port ? Speeds over 60,000 steps/second ? Limit, Home, Go and Soft Stop ...

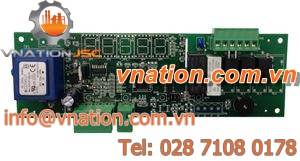

... extremely versatile hardware platform particularly suitable for the control of refrigerators systems and industrial blast chillers. The board provides, in fact, three analog inputs for the sensors management, ...

... safety interruption Configurable virtual encoder output for external position control or master digital shaft / gearing RS232 serial port and RS485 serial port for multi axis controler ...

? Over 30 powerful motion commands ? Single, 24 to 40 Vdc power supply input ? 2k byte non-volatile memory storage ? Limit A, Limit B, Home, Go, Soft Stop inputs ? Serial communications, 1-32 axes ? Bi-polar chopper drive ...

... outage / safety interruption Configurable virtual encoder output for external position control or master digital shaft / gearing as an option Configurable Digital inputs available as ...

Interfaces: PCI, USB The RLC-PCI and RLC-USB control cards provide high precision, flexibility and easy integration. Windows-based DLLs are included. Scanning motion and laser control ...

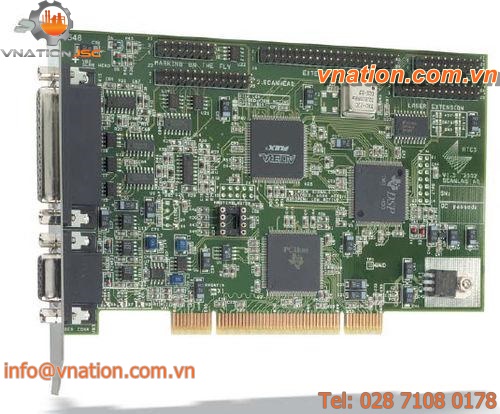

... presents RTC? PC interface boards and RTC? SCANalone standalone boards. The PC-based solutions are very user-friendly. They are useful for controlling laser scan applications. With straightforward software ...

Your benefits The SP-ICE-1 PCI PRO control card offers highest precision, flexibility, and easy integration. Windows based DLLs are included. Scanning motion and laser control ...

... Every 10 ?s, a 16-bit control signal is transmitted to the scan system. The RTC board?s processor performs vital steps such as micro-vectorization and image field correction. System integrators can access ...

This very small board (48x35 mm) provides simultaneously a power stage (70W) and a speed and position PID regulator for DC motors (with brushes and encoder). The I2C bus, that is used as a communication protocol, allows ...

The CU-3D is a map of multi-axis motor control, manufactured by SmarAct. This product is designed without manual control elements, display and housing. It is a single-board version of ...

... device allows driving up to three motor control devices FMod-IPECMOT 48/10 through an Ethernet network. The user has a trackball (allows for a userfriendly interface) to control two axes (XY) and a keyboard ...

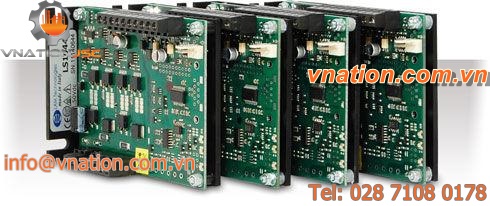

The LS10 stepper motor driver series offers an excellent price/performance ratio. They are realized in open design and are easily mountable on the panel thanks to the L-shaped support integrated into the product. Dimensions are contained ...

Boards for control systems of the step motors and servo-drivers All boards are made with the size 160x100 mm, Euro-bus connection with 64 pin connector

The product weighing 0.5kg is extremely compact with 163.5x60x26 dimensions.The position, current and speed loop is closed by IMD. The power supply is maximum of 750DC and maximum of 2KW. The auxiliary power supply is between 18 & 48 ...

... perfectly integrable with the electronics control in mono or multi-axis applications. There are 12 different models split in three current sizes and four different functionalities. Some models are controllable ...

The motion control board is manufactured by Robox, and is capable for Parker Hannifin drive, which utilizes microprocessor of power PC Motorola MPC5200 in 400 MHz to 760 MIPS. It also utilizes up to 32 interpolated axes, ...

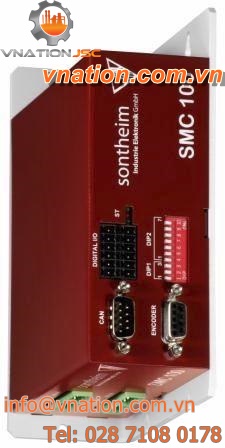

The SMC 100 is built into a compact aluminum housing with the possibility for screw or top hat rail assembly. Its major advantages are a high phase current of up to 10A as well as a comfortable handling. The interfaces are on the front ...
