Outside micrometers, thickness gauges

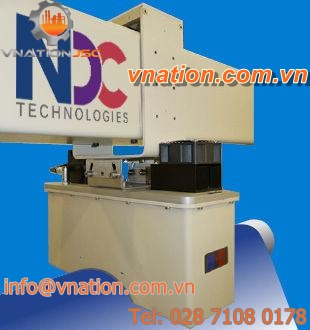

NDCs X-Ray transmission gauges provide absolute thickness measurement of a moving web. Three versions of this gauge are available as follows: Model 312AN X-Ray Transmission Gauge for film, sheet, foil, textile and converted web applications Model ...

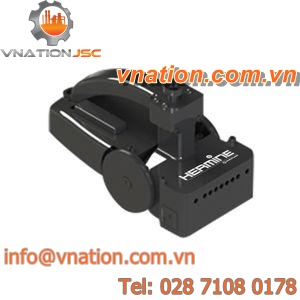

Several patents have been registered by ROBOPLANET, which includes devices designed for metal thickness measurement performance, by means of ultrasound technology. Several advantages are offered by this technological breakthrough, including ...

The OptiMike? OM190 optical micrometer provides direct, single-sided thickness measurement for non-metallic sheet and thick film products. The sensor incorporates a light emitting diode (LED) array that projects a beam of light across ...

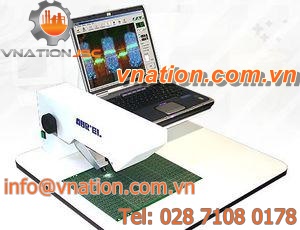

The CS1222 is designed to conduct non-contact measurement of solder paste thickness printed on PCB-SMt. It operates with a Standard and Fine Pitch technology. This system can be used in an array of materials such a stencils, substrates, ...

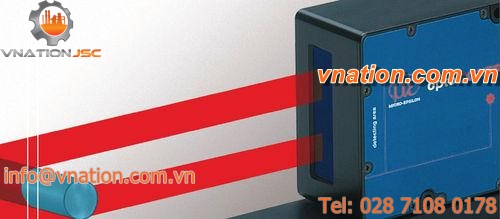

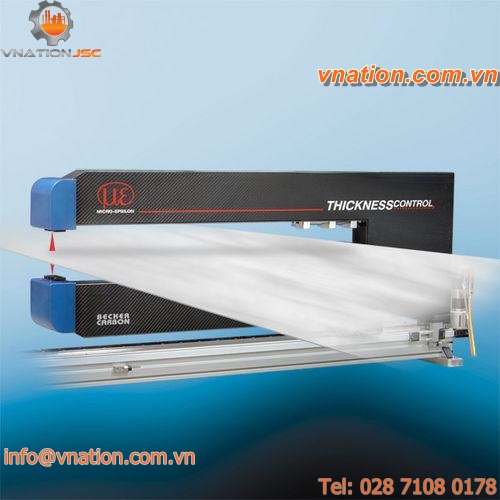

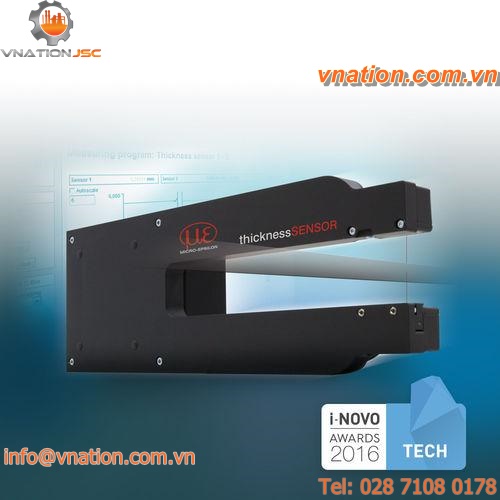

Laser-optical thickness measurement The new thicknessSENSOR from Micro-Epsilon opens up even more diverse application possibilities in terms of non-contact thickness measurement. The sensor works extremely precisely combined with ease ...

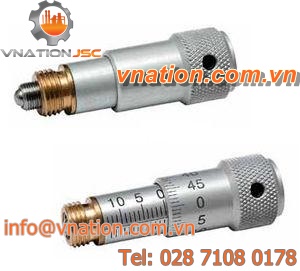

Precise adjustment screw 870-0010 with 13 mm travel has 1 ?m sensitivity and 0.5 mm thread step. Micrometer screw 870-0020 with reading marks has the same travel and thread step as 870-0010. The division value of 870-0020 is 0.01 mm ...

Measuring range: 40 mm - 60 mm

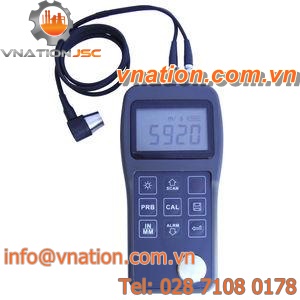

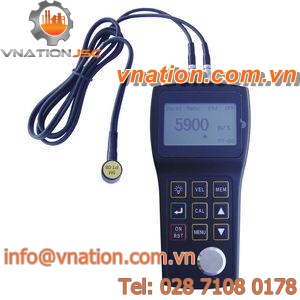

The ultrasonic thickness gauge is used to measure wall thickness, which is key information to calculate the exact inner pipe diameter. It is important to know the exact wall thickness, especially in smaller pipes. Features: Capable of ...

Measuring range: 40 mm - 40 mm
Resolution: 0.1 ?m - 0.1 ?m

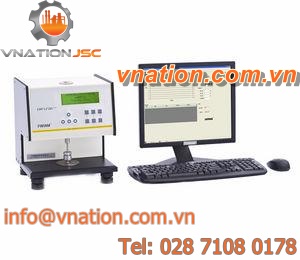

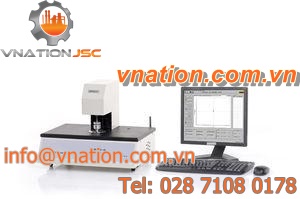

Applications -- Films and Foils Testing, Paper and paperboard testing, Textile and non-woven fabrics testing, Metal Sheet testing, Food packaging Testing Test Property -- Thickness Test Method -- Table Type Contacting method Standards ...

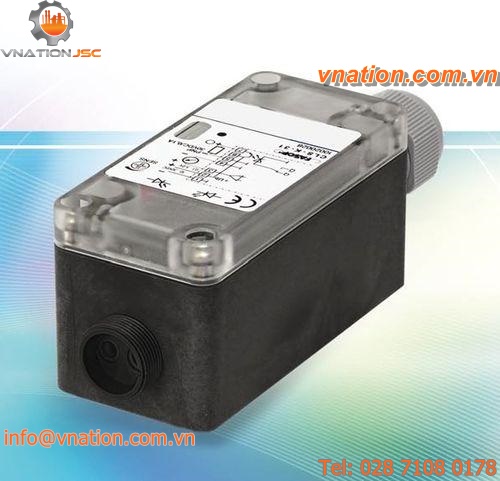

The optoCONTROL CLS-K-6 is a Fiber optic sensor head that has a response time of 120 ?s, frequency of max. 4 kHz. The device has an fiber opic sensor that have an integrated measurement function. in addition to measuring the prescence ...

Applications -- Films and Foils Testing, Paper and paperboard testing, Textile and non-woven fabrics testing, Metal Sheet testing, Food packaging Testing Test Property -- Thickness Test Method -- Table Type Contacting method Standards ...

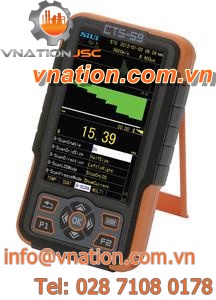

The CTS-59 is a thickness gauge manufactured by Siui. It is suitable for use in a wide range of applications like corrosion operations. The gauge features a measurement range of 0.5mm to 600mm. It has a 5" color TFT-LCD monitor with ...

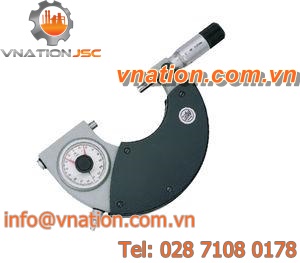

DIN 863 Comparator gauge DIN 879 Micrometer reading 0.01mm Tungsten carbide-tipped measuring faces 8mm Spindle pitch 0.5mm Spindle clamping with lever Lifting device approx. 2.5mm with push button Constant measuring force, spring-loaded ...

These series includes thickness gauges able to measure thickness even through paints and coatings. In presence of non metallic coatings applied on metallic substrates, they can operate on Through coating mode, across paints , to detect ...

Measuring range: 1000 ?m - 2000 ?m

Ultrasonic thickness gauge combine high accuracy and simplicity of use with compactness and strength. Centesimal resolution, calibration plate, internal memory and the possibility to download data with the dedicated software and data ...

Measuring range: 1250 ?m

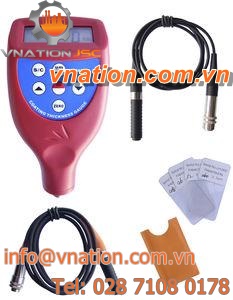

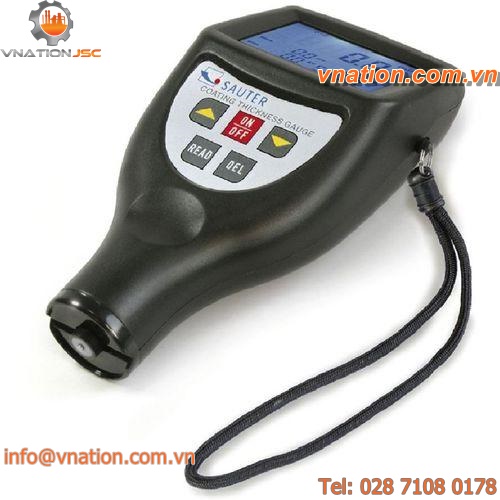

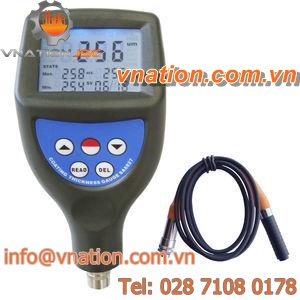

Coating thickness gauge for ferromagnetic and non ferromagnetic bases. Coating thickness gauge allow to measure many type of layers and coatings, in order of tenths of a micron, quickly ,accurate and non destructive. Combine agility and ...

Brand new thickness gauges series redefine quality standards of the sector,keeping unchanged all arrengements that make their predecessors winners and introducing new types increasing functionality. Coating and paint layers meters series ...

Measuring range: 0.26 in

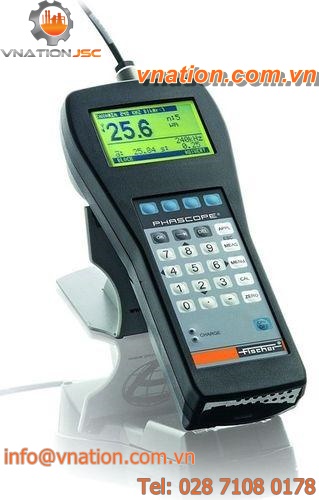

The Phascope PMP10 Duplex by Fischer is a Portable coating thickness gauge which used for identifying different variation of lacquer thickness. May it be measure from zinc of iron coating or on an aluminum coating. This is the ideal tool ...

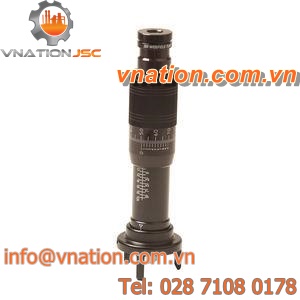

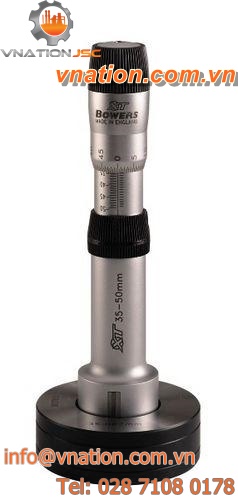

The XT Analogue bore gauge provides an accurate shop-floor bore measurement. The extended mechanical travel of two or three point gauges eliminates the need for exchanging measuring anvils. Designed with a rugged construction, the model ...
