Gauge blocks, granite surface plates, feeler gauges, setting rings

Designed by Mitutoyo, the rectangular gauge block is a practical master gauge for dimensional measurement. There are four classes of gauge available: Class K, Class O, Class 1 and Class 2 as well as two types or ceramic and steel gauge ...

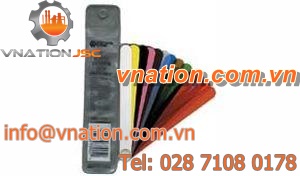

-Contains thirteen blades riveted together for on-site convenience -Made of the highest quality plastic material: -001" to .005" - Polyester -0075" to .030" - Vinyl -1/2" wide blades are available in 5" & 12" lengths -Color indicates ...

Measuring range: 0.1 mm - 250 mm

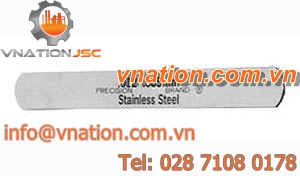

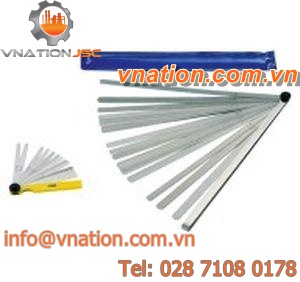

-PRECISION BRAND Stainless Steel Thickness Gage is made from 1/2" wide 300 Series Stainless Steel -Used in manufacturing, tool & die, or maintenance of a technical nature where stringent, corrosion resistant and low magnetism ...

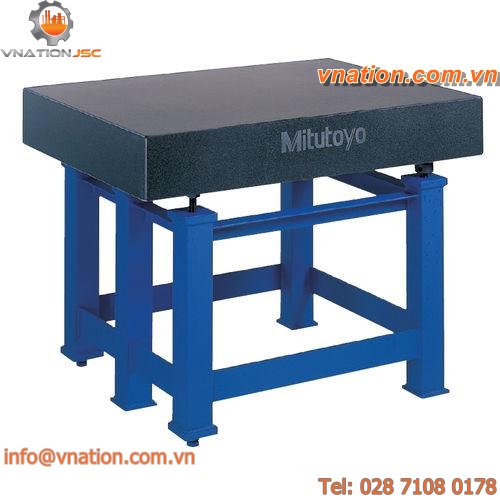

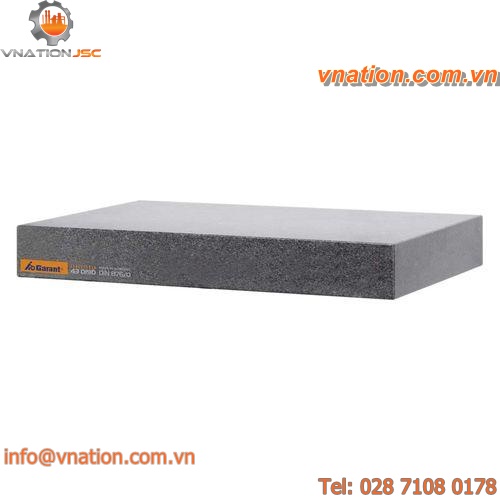

The Black Granite Surface Plates SERIES 517 is twice as hard as cast iron, non magnetic, low thermal expansion, free from wringing, so there is no interruption of work, free from burrs or protrusions because of the fine grain structure ...

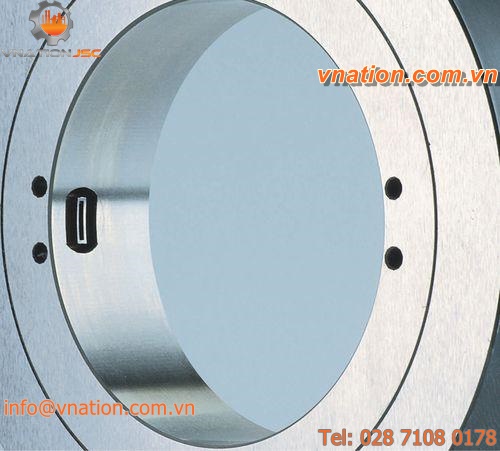

The pneumatic ring gauges from Jenoptik are the ideal means of checking workpieces under particularly tough operating conditions. They are extremely resilient and easy to maintain. Even when subjected to extreme stresses, the pneumatic ...

Schaeffler Feeler gauges are suitable for measurement of radial internal clearance. This is particularly suitable when mounted on tapered shaft seats and adaptor and withdrawal sleeves.

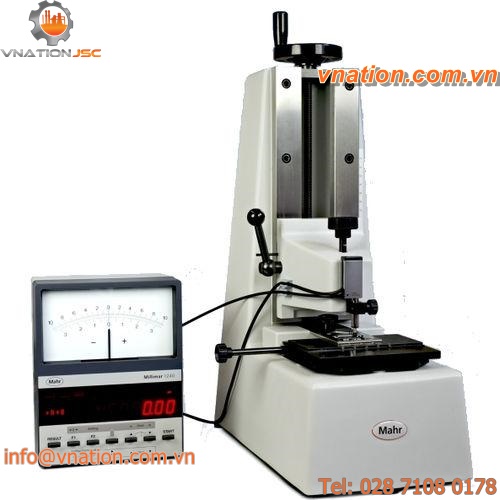

Product features The 826 PC gage block measuring instrument is quick, reliable and highly accurate. An open and extremely rigid L-shaped stand forms the base for the two counteracting precision measuring probes and the absolutely level ...

Mahr Metrology 107 G is a rust-proof surface plate that highly standardized in construction due to its high density structure. It is magnetic-resistant and non-conductive, suitable for layout work, measuring tasks, touching up, and ...

The 31020 is a precision plane table with a column, manufactured by Norelem. The apparatus is a suitable holder for dial gauges. This tool is made out of black granite, with 3 times more wear resistance than traditional granite. Its granite ...

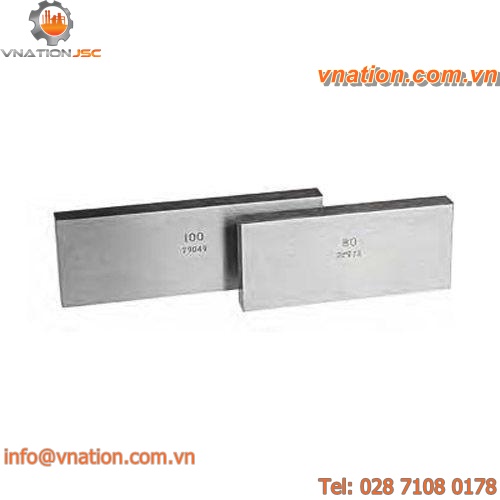

According to ISO 3650/1 - DIN 861 Section: 30x9 mm until 10.0 mm - 35x9 mm from 10.5 mm.

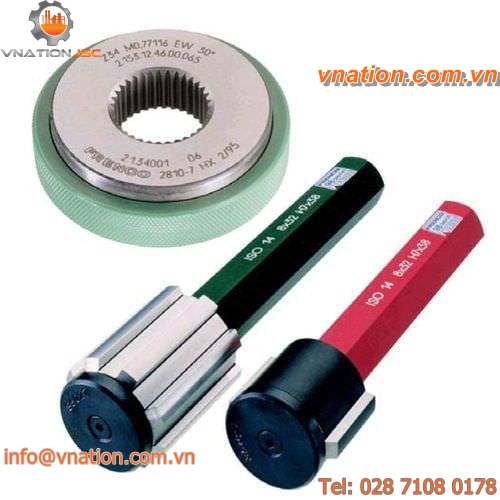

The Spline Gauge is ideally designed to promote a good quality performance and functionality for very specific purposes. It is mainly intended for use as a fast inspection device for splines integrated with several involutes, straight-sided ...

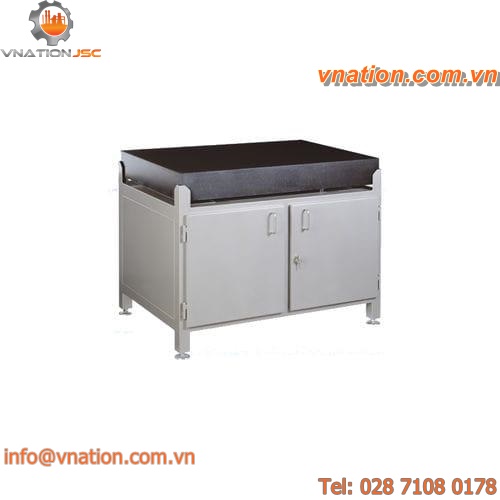

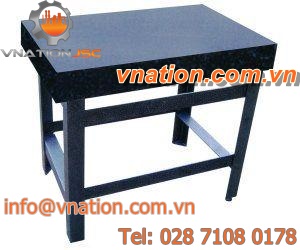

All granite surface tables are manufactured to DIN 876-83 and supplied with a steel stand with adjustable levelling and a calibration certificate.

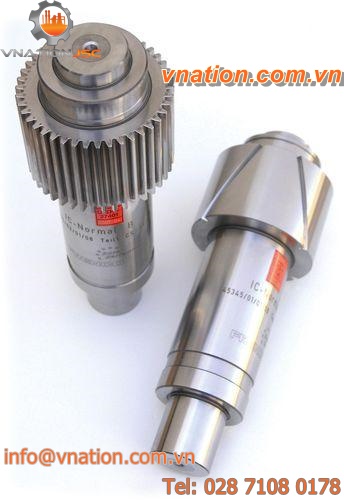

The Standard Tooth IC is manufactured by Frenco. The product represents artifacts, in near perfect form, the geometrical features of the gearing. It features a calibrated and traceable to national artifacts. The artifacts are the highest ...

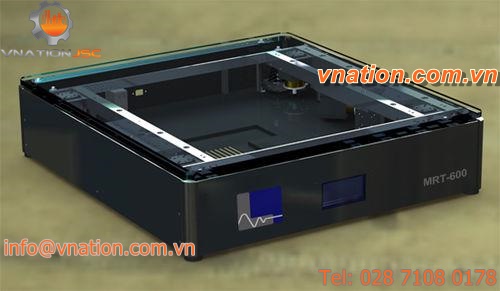

1.the active eletric-controlled air-driven vibration-isolating system can be adjusted in six dimensions,and high horizontal precision can be maintained in vertical and horizonal planes with efficient real time modulation. 2.The company ...

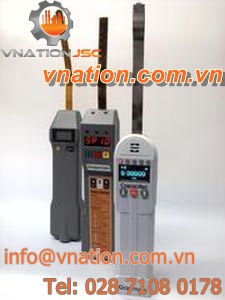

The Gapman? Gen3 Portable Electronic Feeler Gage can be employed in measuring gaps within a broader spectrum of applications. It is well suited for use with assembly operations and aircraft manufacturing industry. The gage is also compatible ...

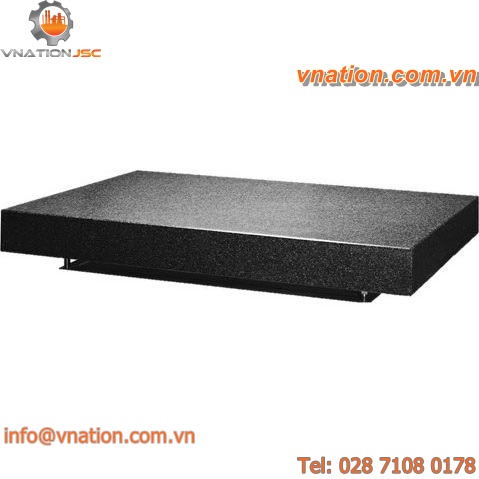

Made of natrual south african granite, produced in air-conditioned room gefertigt, measuring surface to DIN 876.

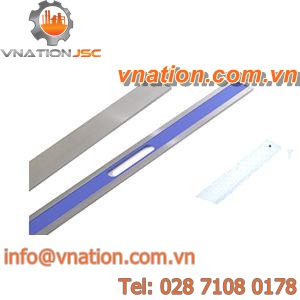

Precision-model, edges and flat sides most accurately worked, extra light.

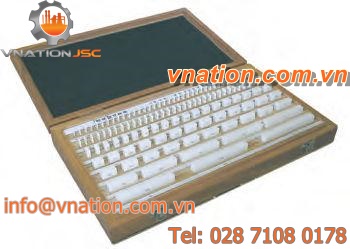

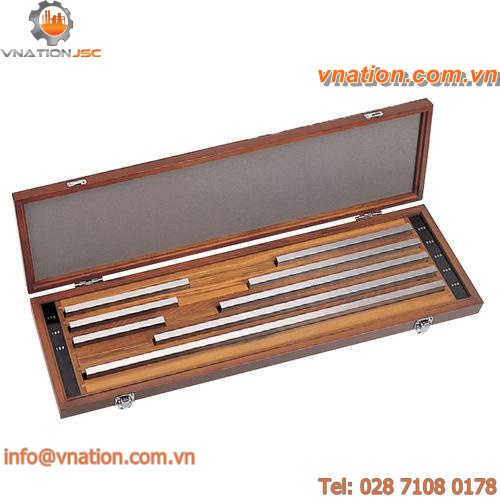

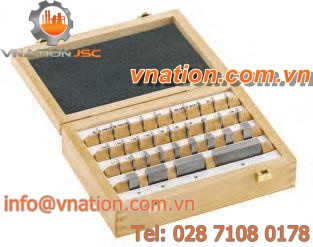

DIN EN ISO 3650 Each gauge block marked with nominal size and identity number Delivered in wooden box

DIN EN ISO 3650 Each gauge block marked with nominal size and identity number Delivered in wooden box

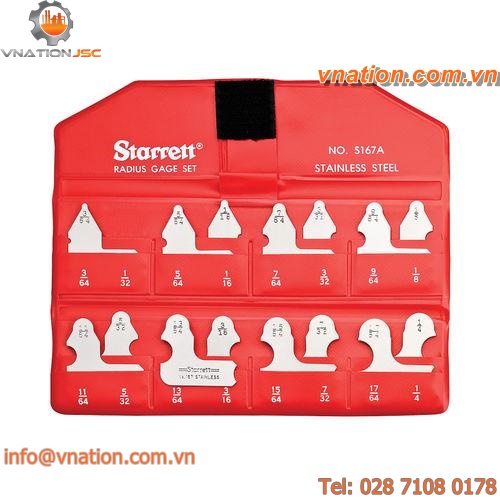

The Starrett S167 Radius Gage Inch Set without Holder features 1/32-17/64" radii range, 64ths increments, and 16 gages. SET, 1/32-17/64 by 64ths, 16 Gages without 110 Holder. The Starrett 178 Series Fillet or Radius Inch Reading Gages ...
