Variable area flow meters

Volumetric flow rate: 1.5 l/h - 60000 l/h

Hedland manufactures over 7,000 varieties of VA flow meter for measuring the flow of liquids and gases. The rugged in-line meters may be installed in any position and include a rotatable English/metric scale for easy viewing. Calibrated ...

Housing made of PP, PVDF and PFA > Very high media resistance Easy to dismantle > Straightforward glass change > Simple to clean Measuring tube made of Duran? glass > high corrosion resistance All sealing surfaces and ...

Process pressure: 10 bar
Process temperature: -24 ?C - 54 ?C
Volumetric flow rate: 20 l/h - 500 l/h

? Dosage of aggressive gaseous media ? With fine adjustment valve ? High chemical resistance ? Optional light barrier ? Optional electronic control

Process pressure: 10 bar
Process temperature: 0 ?C - 100 ?C
Volumetric flow rate: 50 l/h - 60000 l/h

Process pressure: 10 bar
Process temperature: 0 ?C - 100 ?C
Volumetric flow rate: 2 l/h - 1000 l/h

Process pressure: 10 bar
Process temperature: 0 ?C - 60 ?C
Volumetric flow rate: 1 l/min - 170 l/min

Process pressure: 10 bar
Process temperature: 0 ?C - 60 ?C
Volumetric flow rate: 1 l/min - 170 l/min

Process pressure: 30 bar
Process temperature: -20 ?C - 80 ?C
Volumetric flow rate: 0.1 l/min - 120 l/min

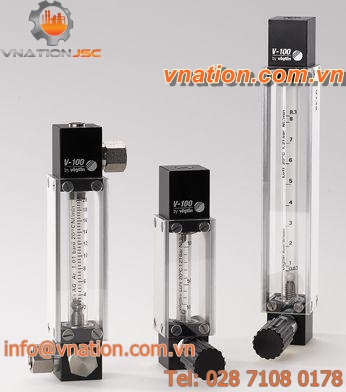

The V-Flow Model is a variable-area flow meter developed by V?gtlin Instruments. It comes with compact and slender design. This unit includes a mm scale, product scale, and a user-defined scale. It has a standard FKM, EPDM or Buna-N seals. ...

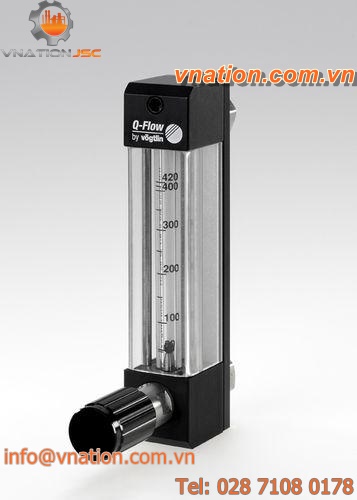

Variable area flowmeters Q-Flow for air & water The proven variable area flowmeter with compact, intelligent and attractive design. Measuring tubes in 3 sizes: The flow meters are available with three different glass tube lengths Measuring ...

The SVN/KSR flow switch is designed to deliver efficient services at extremely low volumes. Its switching range incorporates fixed points that are set at 2-(160) 25o cm3/min when used with water-based applications and 50-6000 Ncm3/min ...

The VKP type is a viscosity compensated variable-area flow meter that runs on a specially suspended float principle and is equipped with a measuring tube. This variable-area flow meter is integrated with a spring-loaded float with orifice ...

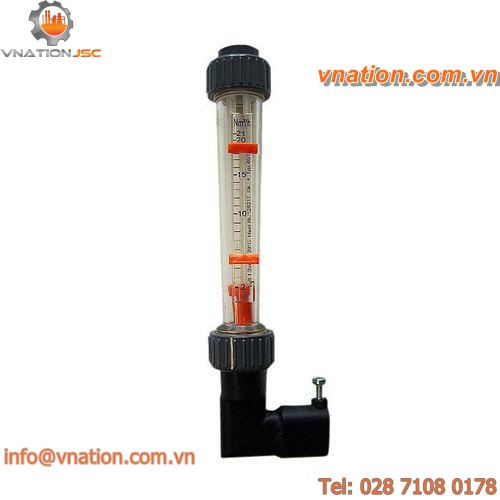

The KS M model of KOBOLD plastic flow meters are used for cooling circuits,water treatments and plant engineering.Based on the float principle,the floats move freely in the measuring tube without friction. The indication point is ...

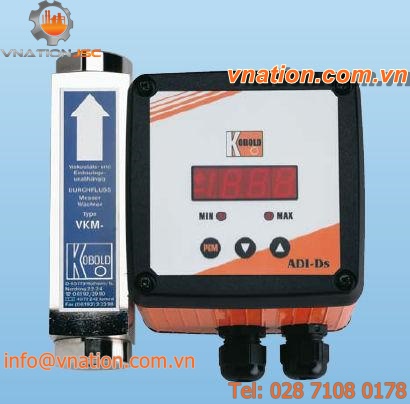

The model VKM belongs to KOBOLD's lineup of viscosity compensated flow meters and switches that is fitted with a spring equipped float, which slides in a cylindrical designed measuring tube and has a crucial orifice wich is regarded ...

The KDF/KDG from KOBOLD is designed with flow meters and switches that are used for liquids and air works that are suspended float of standards. The installation position is vertical and the control of flow is from bottom to top. These ...

Process pressure: 12 bar
Process temperature: 100, 115 ?C
Volumetric flow rate: 0 m?/h - 80 m?/h

Process pressure: 8.9 bar
Process temperature: 54 ?C
Volumetric flow rate: 15 l/min - 375 l/min

Process pressure: 12 bar
Process temperature: 115, 100 ?C
Volumetric flow rate: 0.1 l/min - 37.5 l/min
