Motorized positioning stages
electromechanical positioner / rotary / vertical / 1-axis
QR-WP-TT-10kN DR=0900
Payload
: 10 kg

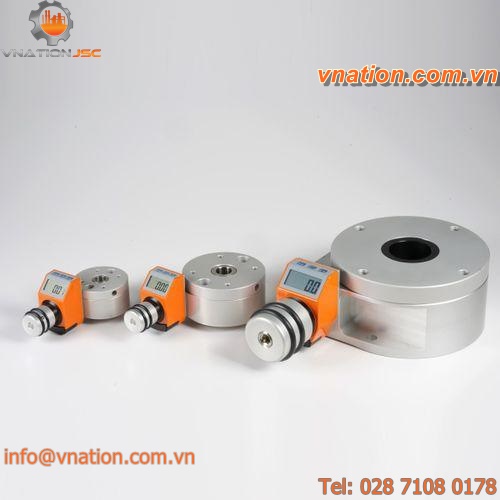

electric positioner / rotary / 1/2-axis / digital
ZB, JB series
Payload
: 34 kg - 450 kg
rotary positioning stage / motorized / prism
ZB, JB series
The MiniMech? Prism Table may be obtained in metric or inch forms, and the MacroMech Prism Table has mounting holes to accommodate both types of hole pattern. On each version, a height-adjustable cross-member or arm is used to hold the ...

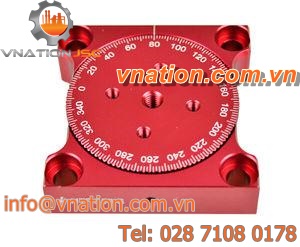

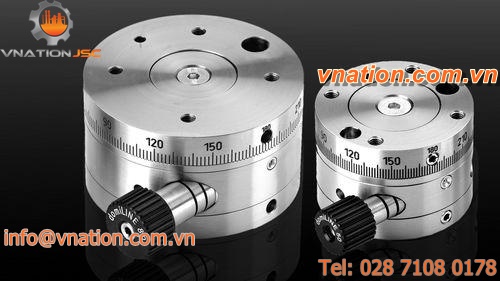

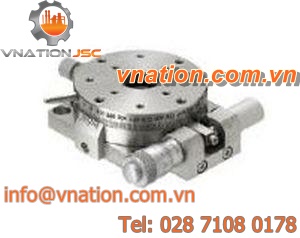

rotary positioning stage / manual / 1-axis / precision
481 Series
The 481-A High performance rotation stage model from the 481 series is a rotary stage which is suitable for the pure adjustment of a component after operating it at a particular angular position. It has an internal platform which rotates ...
rotary positioning table / motorized / compact / ball screw
PLR190
Primatics PLR190 Series rotary positioning tables offer a variety of options for systems in need of small, stiff angular corrections. An innovative drive system creates arc-second accuracy and fast settling times, making the PLR190 ideal ...
rotary positioning stage / 1-axis / ball bearing
ZB, JB series
MiniMech? Rotary Stage ? Compact ? Rotation 360? coarse, 6? fine ? Lockable ? Radial ball bearing design The MiniMech? Rotary Stage provides a full 360 degrees of rotation from a stage supported on radial ball bearings. Coarse and fine ...

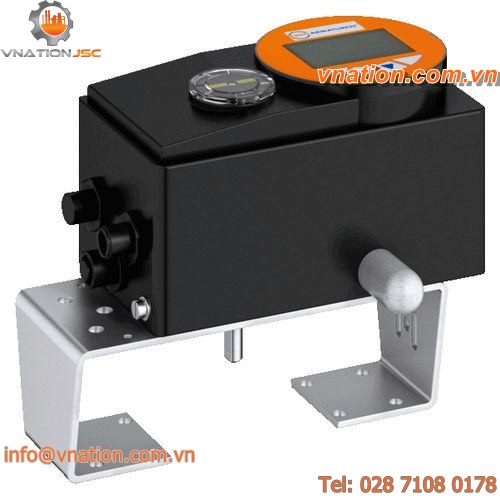

rotary positioner / linear / digital / compact
EP 501
Digital Electropneumatic Positioner Type EP 501 Operating voltages: 24 VDC +/- 10% Setpoint setting: 0/4 to 20 mA and 0 to 5/10 V Analogue feedback: 4-20 mA, 0-20 mA 0-10 V, 0-5 (optional) Binary input: 1x galvanically ...
rotary positioning table / motorized / precision
PLR350
Primatics PLR350 Series rotary positioning tables offer a variety of options for systems in need of small, stiff angular corrections. An innovative drive system creates arc-second accuracy and fast settling times, making the PLR350 ideal ...
rotary stage / XY / 2-axis / with rotating base
MG series
Stroke
: 110, 120 mm
rotary positioning stage / motorized / 1-axis / high-precision
RF series
Compact rotary axis type. High-precision bearing specifications are also available. 1. Positioning repeatability in one direction. 2. The maximum speed may vary depending on the moment of inertia.
rotary positioning stage / motorized / precision / miniature
PRD75
Primatics PRD75 is a miniature precision rotary stage. The integrated step motor is mounted below the stage providing a low profile, small footprint area well suited to stacked configurations. The drivetrain uses a toothed belt with pulley ...

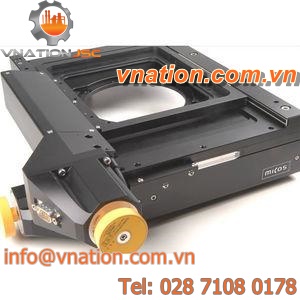

rotary positioning stage / XY / 2-axis / for microscopes
MS-4 series
Stroke
: 0 mm - 102 mm
Speed
: 0 m/s - 0.09 m/s
rotary positioning stage / motorized / multi-axis / with built-in controller
RF series
Rotation Module - Hi-Precision Motorized Rotary Stage 5 Axis Manual Positioning Adjustment (X, Y, Z, C, Theta) Variable Rotational Speed Adjustment / Fixed Jog Speed Horizontal or Vertical Mounting Bracket with ...
manual positioner / rotary / 1-axis / analog
XYR1
The XYR1 is a low profile XY axis translation stage with continuous rotation about the Z axis. The central SM1-threaded through-hole allows the stage to be used in an imaging application that requires illumination from underneath the ...

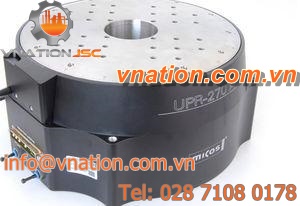

rotary positioning stage / motorized / 1-axis / precision
UPR-270 AIR series
With best values for flatness and wobble you can reach highest accuracies due to the high precision air-bearing. All rotation stages UPR-270 AIR are directly driven by a torque motor. The UPR-270 AIR is equipped with an angular scale ...

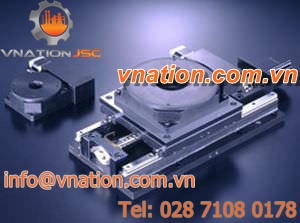

linear positioning stage / rotary / motorized / single-axis
RF series
Linear with Theta Single Axis Motorized Linear Stage Motorized Rotary Stage, Three Jaw Chuck and Mounting Plate Variable Speed Adjustment Stage Travel: Application Specific Mounting Assembly with Manual Positioning ...

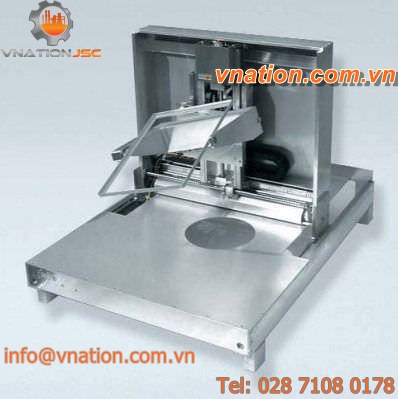

rotary stage
XYR1
Transmission and Reflection Stage For easy and accurate reflection and transmission measurements of glass and thinfilm, the Avantes Stage is the ideal companion. With a height of 420 mm and three individually adjustable devices, almost ...
rotary nanopositioning stage / 1-axis / open-center / ball screw
KDT180-DC
Stroke
: 60 mm
linear positioning stage / rotary / XY / motorized
RF series
Stroke
: 4 in - 6 in
motorized positioner / rotary / precision
XYR1
Performance characteristic 1.Small and flexible structure 2.Adopt high-precision servo and reduction box,high precision 3.Fast running speed and high efficiency 4.Easy operation and strong adaptability Ample structures 1.Double-column ...
rotary positioning stage / tilt / 1-axis / precision
Phi-Tilt
The Phi-Tilt stage by NUTEC is a limited rotation rotary stage for small ?0-5? motion, typically used for alignment purposes. Designed for continuous operation 60 x 40 mm footprint x 42 mm high Miniature brushless 3-phase servo motor. 0.36 ...
rotary positioning stage / 1-axis / ball screw
MT130-DC
Stroke
: 50, 80 mm
Speed
: 0.03 m/s
linear positioning stage / rotary / XYZ / motorized
RF series
Stroke
: 2 in - 6 in

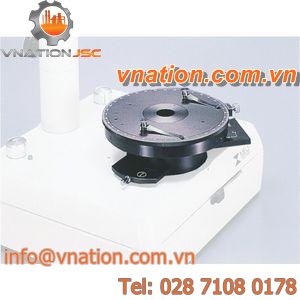

rotary positioning stage / 1-axis / for microscopes / sliding
MA761
Rotatable stage with polarizer and 1/4 wave plate in sliding mount, reading to 1? rotation, 150mm diameter, for RZT and RZBD stand.
rotary positioning stage / piezoelectric
TrAC
Large Tip Tilt mechanisms are widely required in Optronics since they provide precise pointing for space telecom transmissions. Commonly available mechanisms may be divided into two main categories. The first is based on magnetic technology: ...
piezoelectric positioner / rotary / 1-axis / digital
OPP120SM
This piezo positionner OPP120SM uses the amplified piezo actuator of CEDRAT TECHNOLOGIES normal type of actuator and some extra guidance to move the target vertically with perfection. The features available with this are Strain Gauges, ...
motorized positioner / rotary / 1-axis / digital
300 series
Payload
: 90 kg
rotary positioning stage / motorized / 1-axis
RF 1
The RF 1 utilizes a low play toothed belt drive, which has a stepper or DC servo motor. The device consists of an electromagnetic brake, with 60 nm capability. Also, it has a CNC controller, and a step motor drive. In addition, the ...
rotary adjuster
MDV 55, MDV 80
Rotary adjuster MDV 50 and MDV 80 for manual operation with high-quality screw gear. Features - max. radial torque on the plate: 5 Nm - max. clamping force: 10 Nm - main dimensions: ? 55 mm - weight: 610 g / 1600 g
rotary positioning stage / 1-axis / compact / roller
RT
The RT is a rotary table manufactured by IKO. It is equipped with a crossed roller bearing for delivering high accuracy and rigidity. The unit adopts an optical encoder with high resolution. It also ensures high-speed performance. ...
rotary positioning stage / manual / 1-axis / stainless steel
MP
rotary positioning stage / 1-axis / precision / roller
AT
The IKO Alignment Table At rotary positioning mechanism for precision angle correction utilizes a high rigidity steel table and bed fitted with the IKO Crossed Roller Bearing for table support. The device converts the linear motion produced ...
rotary stage / tilt / translation / 2-axis
NT 40, NT 65 series
The NT 40 and NT 65 are normally mounted horizontally and are considered high-resolution tilting elements. The axis of rotation is determined by the center of the two accurate steel balls. The tilting angle will be adjusted using a fine-thread ...
rotary stage / tilt / 2-axis / aluminium
DNT 40 series
This equipment has been developed as part of OWIS'S optical components. The stages are made from highly durable aluminum with a reflection-resistant black anodized coating. It can be easily adjusted with thread screws or micrometers. ...

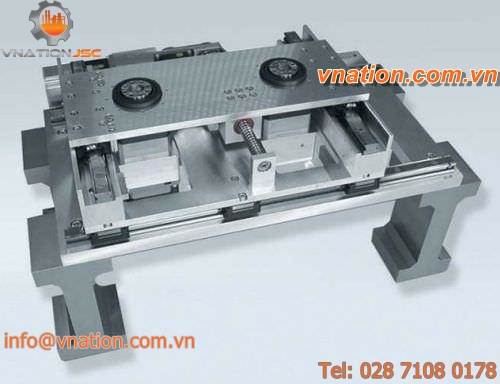

linear positioning stage / rotary / 1-axis / sliding
max. 150 x 150 mm, max. 200 mm/s
This is a Linear and rotary positioning stage manufactured by Jenaer Antriebstechnik which comes with a fitted X-Y table having a 2 synchronous rotational axes. With this tool, it can be used mechanically and electrically ready for a ...
electric positioner / rotary / 2-axis
IRPB A series
Payload
: 250 kg - 750 kg

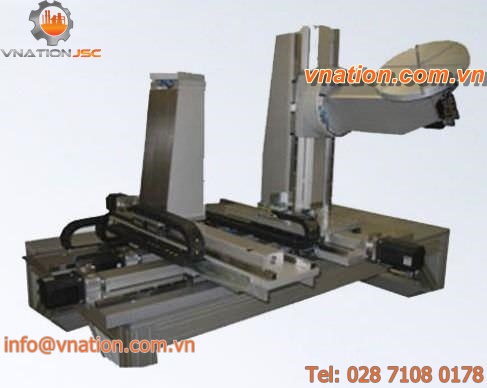

electric positioner / rotary / multi-axis
max. 500 x 500 x 300 mm, max. 400 mm/s
The 5-axis Handling System features x,y and y axes and 2 rotation (? and ?) axes. It has dimensions of 600x800x400 mm?, and is designed for simple and easy mechanical and electrical connection. Spindle drives are mounted on x, y and y ...
motorized positioner / rotary / multi-axis
max. 700 x 850 x 510 mm
The Completely Fitted Handling System is ideally designed to provide a good quality performance and functionality. It is built with several axes including the x1, y1, ?1, x2, y2, z2, ?2, ?2 and more. It is available in a custom-made adaption ...

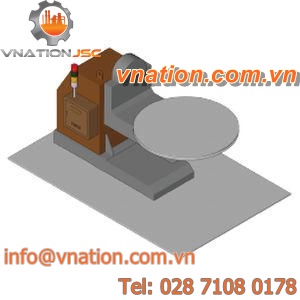

motorized positioner / rotary / multi-axis / parts
RJB series
Payload
: 250 kg - 1000 kg

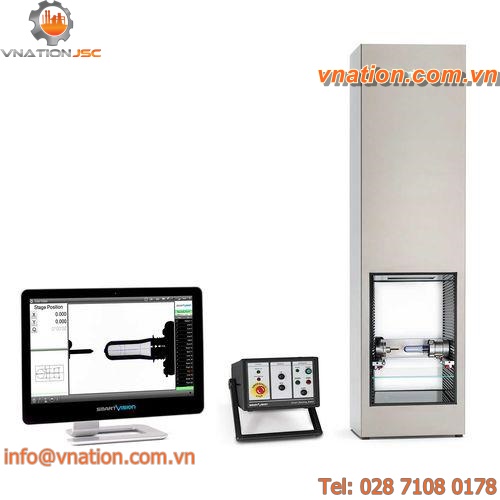

motorized positioner / rotary / 1-axis / for coordinate measuring machines
Smart_Rotating_Robot
The innovative Smart_Rotating_Robot is designed to extend the Smart_Projector?s range of application, allowing control quality check to cylindrical parts and any other item that needs to be examined on different projection planes at defined ...
pneumatic positioner / electropneumatic / rotary
CRP-3/M, CRP-3/M-EP
The CRP positioner consists of a diaphragm exposed to the regulating signal pressure, of a feedback spring and a double acting spool valve connected to the diaphragm and feedback spring by the rod. The CRP-3/M-/EP positioner (fig. 2), ...

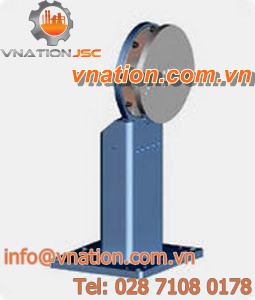

hydraulic positioner / rotary / multi-axis / parts
G-series
The G-series line of tailstocks are specially designed to supplement a on-axis positioner. They are specifically optimized for use with either WD or WH series headstocks, although it is possible to integrate the G-series tailstocks with ...

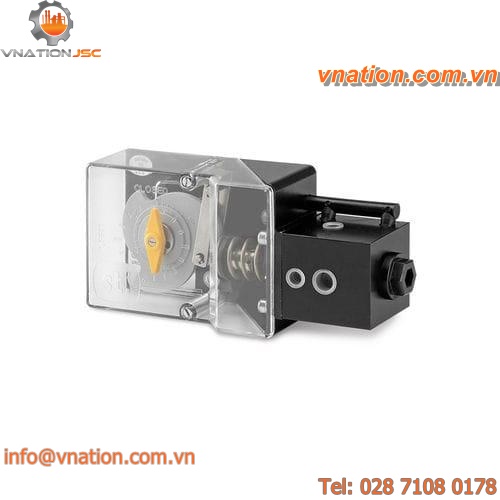

pneumatic positioner / rotary / cam
SR/CCK
SR-CCK positioner is designed for the proportional operation of rotary single or double acting actuators, to actuate butterfly, plug, ball valves, etc. It is usually located in the control circuit between the regulator and the actuator ...
motorized positioner / rotary / 1-axis / line-point-plane base
KFM101
Elliot Scientific KFM101 flip mount has a compact, robust design, only 12.7 mm thick. It is mostly used in optic industries, to move optics from the beam path when interruption is needed, and to return them later, to the exact same position. ...
rotary positioning stage / manual / multi-axis
M6E-2200B
Stroke
: 6.5 mm
tilt positioning stage / manual / multi-axis
M5F-460A561
Stroke
: 5 mm - 12.7 mm
linear stage / rotary / manual
ø 82 mm | KSMR5A-100
KSMR series uses cross ball screw bearing. The device offers motion performance, runout and adjustment for related index and different angles. It also provides micrometer and screw that ensure high sensitivity. The instrument can be used ...
rotary stage / precision
HTRS Series
Features: 1.360? rotation 2.1/4-100 Fine Thread Screw 3.High Precision, Good Stablity 4.There are standard mounting holes on the upper and bottom plate.
motorized positioner / rotary / 2-axis / optical component
T-OMG Series
The T-OMG Series Miniature Motorized Gimbal Optic Mounts with Built-in Controllers from Zaber is engineered with a bi-axis gimbal mount with a +-7? range. It is capable of dealing with 25 mm optics. The unit also has an integrated controller ...
tilt stage / single-axis / 2-axis / precision
HTTS Series
Features: 1.Single or Two-axis Tilt Adjustment 2.Micrometer Head 3.High Precision, Good Stablity 4.There are standard mounting holes on the upper and bottom plate. 5.Spring Reset
rotary positioning stage / manual / 1-axis
860-0140
M30?1 diameter platform insert two 25 mm (1 inch) retaining rings centered platform insert Inch version 860-0140E is available We offer fine rotary stage 860-0140 with a micrometer screw. Fine motion range is 15? with resolution of 1 ...
rotary positioning stage / manual / 1-axis / with position indicator
DT36008-PA(E), DT36012-PA(E), DT36025-PAE
If you turn the adjusting knob clockwise, you will rotate the turn table counter clockwise as well by means of a worm gear. In addition to this, when it comes to the accurate rotary positioning, it is suitable for all component types ...

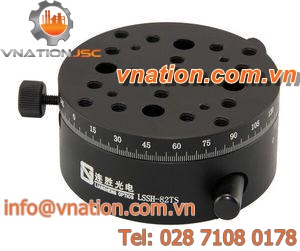

linear stage / rotary / manual / high-accuracy
LSSH-82TS
Features: 1. The platform can be rotated in 360?. 2. The stage can offer fine adjustment in a certain range with fine screw drive, spring reset, high resolution, without backlash. 3. Precise axial design, high accuracy, excellent stability. 4. ...
linear stage / rotary / motorized / precision
LSDH Series
Features: 1.Standard Stepper Motor and Standard RS232 Interface 2.Can be added with Photoelectric Zero 3.Recommended Controller:LSKZ Series 4.High Precision, High Load Capacity and Long Service Life 5.Platform can be rotated in any orientation 6.Preload ...
