Junction boxes, terminal boxes

Ex II 2 G D Ex e ia ou ib IIC, Ex tb IIIC IP 66 / IP 67 From -50?C to +60?C 2 Sizes: 120x120x90 and 160x160x90 mm

The highly efficient ATEX electrical connectors and boxes are basically junction boxes that are built with reinforced polyester resin with fiber glass and graphite that are especially suited for producing electrical connections in various ...

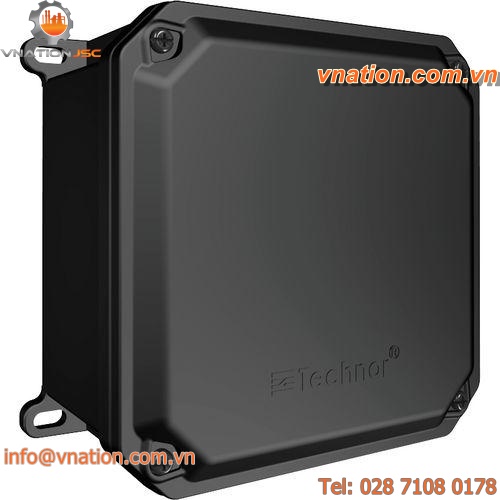

Technor? AQ and AR Series are manufactured to house Ex-e and Ex-i terminals. Terminal changes limitations adjusts on the foundation of terminal section, surrounds operating temperature and the needed temperature class. This series are ...

AQ/AR series are utilized to house Ex-e and Ex-i terminals. Most extreme number of terminals changes on the base of terminals area, working temperature and variation in temperature range. These measurements could be redone up to 1000mm ...

The CP../CPS.. range of enclosures are extensively sued for terminals wiring as per Ex-d or Ex-e mode of protection. The boxes feature an aluminium construction with low copper content and threaded hubs connection suitable for cable glands ...

Junction Box for Heat Tracing - Pipe Mounted Series TEF 1058 High degree of protection, IP66/67 standard, IP68 can be delivered upon request Drainage flange in box prevents penetration of water Manufactured in acid proof ...

These Junction Boxes Series 8102 feature a durable enclosure made of of glass-fibre reinforced polyester resin, and is equipped with 1 PE connection and 4 sheath terminals. Equipped with 4 sheath terminals and 1 PE connection. Terminal ...

Enclosure in glass fibre reinforced polyester resin 3 different sizes available with 4, 5 or 8 terminals as a junction box with integrated miniature fuse: 3 terminals and 1 miniature fuse 7 terminals and 1 miniature fuse 6 terminals and ...

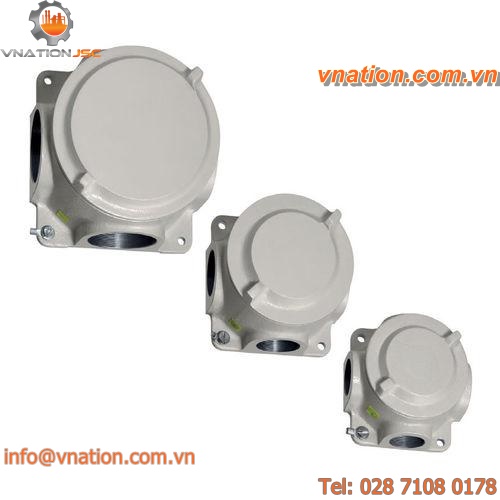

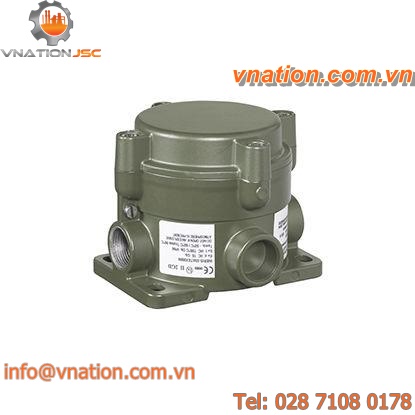

This Ex d enclosure is made up of copper-free aluminium to make it immune to saltwater and its corrosive effect. This is available in 3 varied sizes and is powder coated with DIN rail for standard terminals. There are holes drilled in ...

The Enclosures are designed for a variety of applications, Mostly suited for office and information technology environment. With it's slick and top of the line design it would be preferred by many. It features hinges / cam locks or screw-on ...

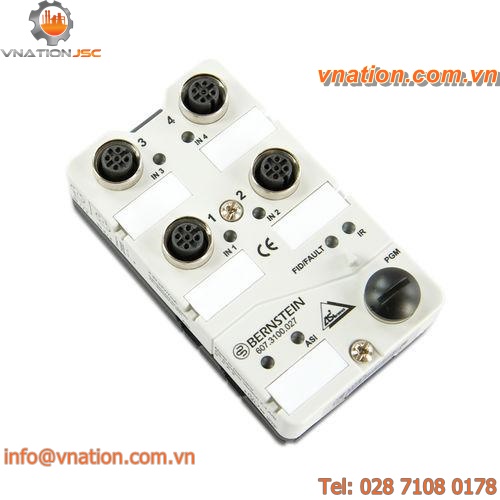

The standard connection box has an ASI address and integrates up to four non-safety sensors/switches in the ASI system. The connection box is equipped with LEDs that indicate the status of the connected user.

Branch for AS-i profile cable. The connection under the cables is effected when opening the cover

The 19" Splice Box for ST from Lapp Group is non-populated which can be pulled out easily. This 483 x 44.5 x 244 mm splice box is made of 1.5 mm steel plate that can be used for up to 12 or 24 fibres and has maximum 4 splicing cartridges.

The LAPP Group Splice Box Compact features a maximum capacity of 8 splicing cartridges or 4 splicing cartridges plus one distribution plate. This top of the line splice box is lockable and boasts a panel mounting and distributor plates ...

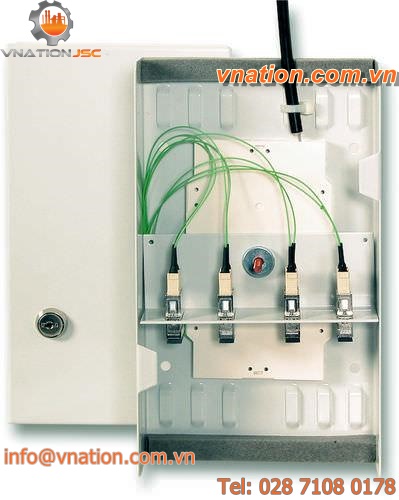

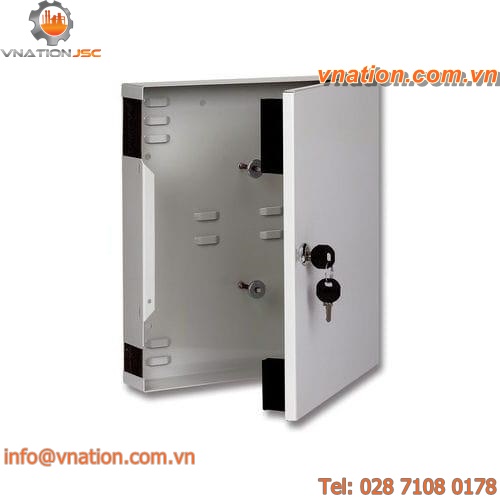

This product has a panel mounting and can be locked. It has a maximum capacity of 4- or 8-splicing cartridges as well as one distribution plate. It comes with accessories for the mini wall mounted rack which are as follows: distributor ...

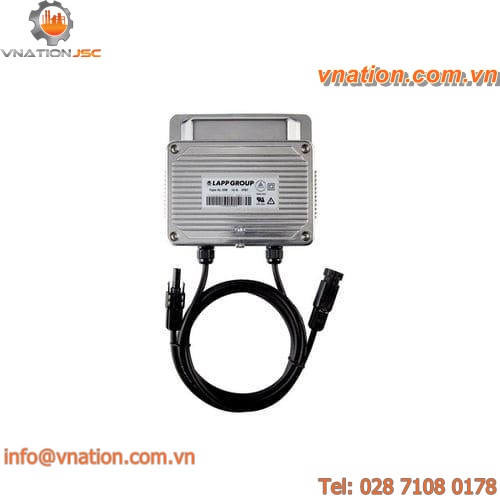

Introducing a top of the line product from the LAPP Group Products. The EPIC? SOLAR AL008 an ingenious component designed for a variety of applications. It features Extremly resistant and durable PV-junction box in aluminum; Aluminum ...

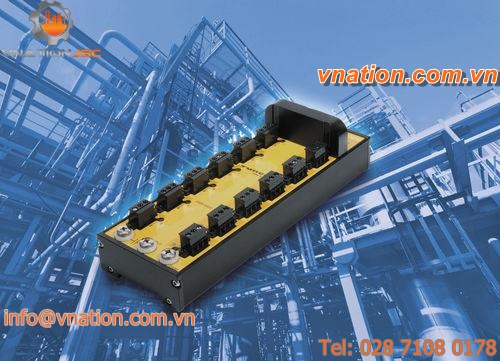

These T20 junction boxes by Turck are ideally suited for Foundation Fieldbus and Profibus PA networks. In case of Ex area in zones 1, 2, 21 and 22 and the other safe areas, you can easily use the fieldbus junction boxes of the JRBS series. ...

Junction box and connection enclosure certified in accordance with EN 61 439, MPA checked as per DIN 4102-2 and EN 1363-2, functional integrity in the feed-through 30 minutes for cable E30, suitable for max. 5-pole E30 cable, maintenance-free ...

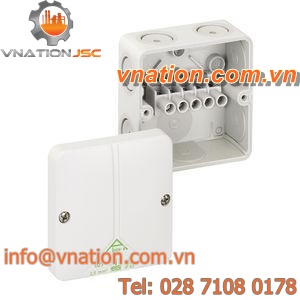

The Q 12-2,5? Series, manufactured by Spelsberg, is a junction box equipped with 3 surface openings, including fixing positions and polypropylene cover. This junction box has a length and width of 85 mm, ambient temperature of 2,5 mm? ...

white, with 5-pole HandyGrip terminal 2.5 mm? Junction box acc. VDE 0606, Surface mounting, 7 entries, 1 bottom entry, central quick lock lid

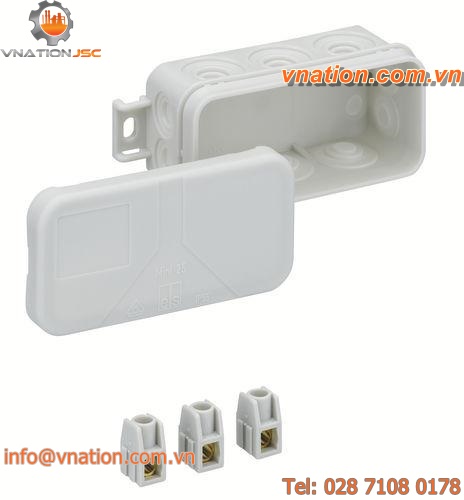

The Mini 25-2,5? series of junction boxes from Spelsberg are engineered with 10 entries, 2 of which are floor entries. This makes these devices ideal for applications in small and confined spaces like ceilings and cable ducts. They also ...

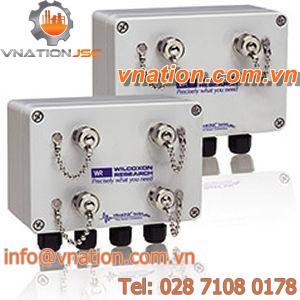

Meggitt enclosures are designed with the user in mind, providing quick and safe data acquisition in the harshest industrial environments. Our enclosures are cost-effective and backed by lifetime warranty. CB series Meggitt's CB ...

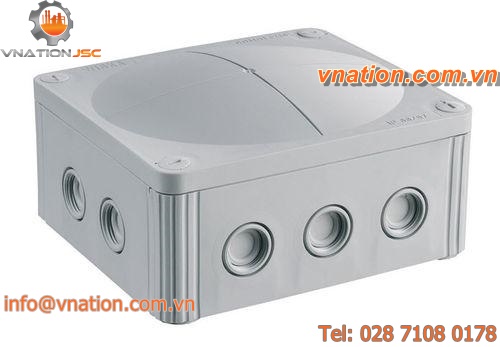

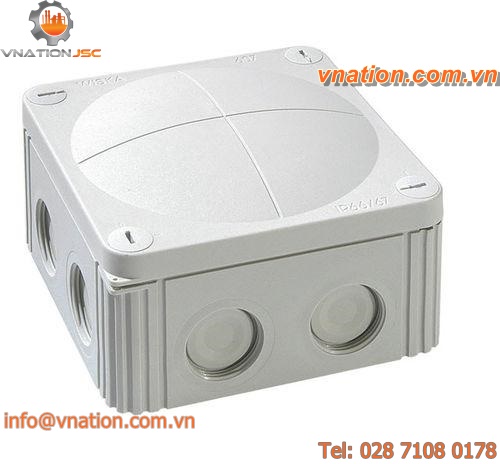

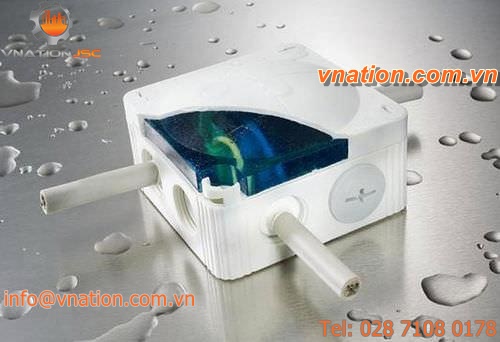

Wiska Combi 1210 is a junction box that is equipped with a self-sealing membrane feature. This allows a clean construction for cable outputs from the wall. An expanded interior property enables an easy installation of electronic components, ...

The Combi set is a series of junction boxes manufactured by Wiska. It is suitable for ports and shipyards, car wash plants, tunnels and flooding areas. The device is protected from moisture due to its IP 68 protection. The IP 68 allows ...

The COMBI 108 Series features units designed with a polypropylene, and thermoplastic elastomere construction. Built with an IP66 protection, these units are manufactured with 2.5 mm? poles, and toughened glass fibers. They function with ...

The Combi 308 is a series of junction box manufactured by Wiska. The device is constructed from a polyproplene and reinforced glass fibre. It is built with a protection class of IP 66 which can withstand a temperature range of -30C up ...

The Abox-i 025-2,5? series of junction boxes from Spelsberg are engineered to be compliant with DIN EN 60670 standards. These products are designed to be resistant to weathering and shock, and to be halogen-free. They also provide self ...

The versions of this sturdy polyamide enclosure with moulded-on Pg 11 cable gland reduce processing time and work 5 sizes Versions with or without screwing systems Quick-release fastener versions Transparent lids ...

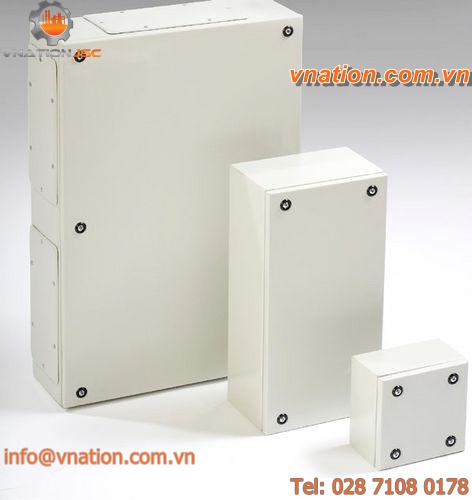

Mild steel terminal box Material:1.2 mm mild steel. Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing. Four M6x13 studs for bottom profiles / mounting plate fixation. Gasket: Sealing is ensured by an ...

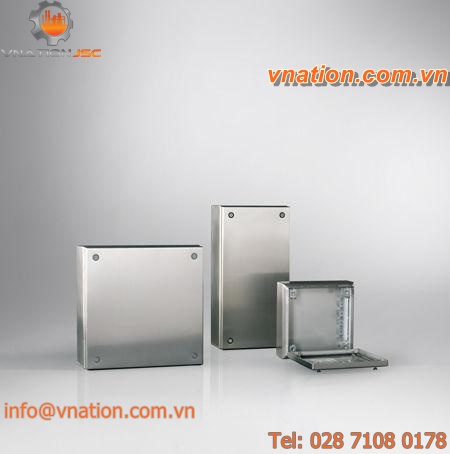

Stainless steel terminal box Material: AISI 304 pre-grained stainless steel / AISI 316L (on request). Body: 1 mm. Cover: 1.5 mm. Body: Folded and seam welded. Four M6x13 studs for bottom profile / mounting plate fixation. Gasket: ...

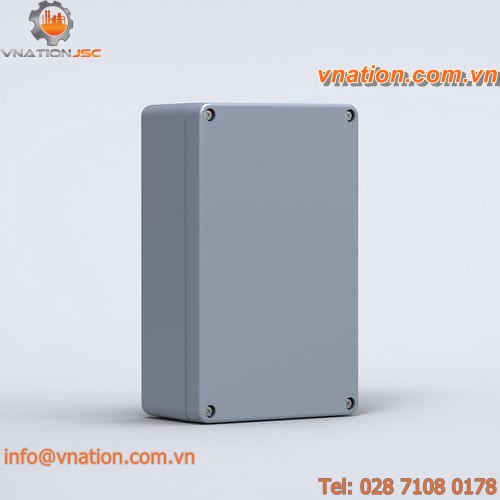

Aluminium terminal box Material: Aluminium alloy AlSI 12. Gasket: Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request. Temperature resistance: -30?C to +80?C. Protection: ...

Polyester terminal box Material: Glass fibre reinforced polyester. Gasket: Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request. Temperature resistance: -40?C to +100?C ...

ABS terminal box Description: ABS box, halogen-free, suitable for indoor use. Low UV radiation resistance. Material: ABS. Gasket: Polyurethane gasket integrated in the box cover. Temperature resistance: -40?C to +60?C. Flammability: ...

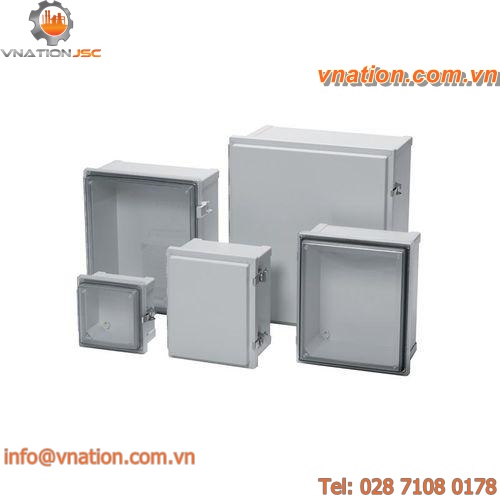

The new ARCA non-metallic enclosures from Fibox give users of classic electrical junction boxes an easy upgrade path to a high performance enclosure which features 21st century technology. The ARCA enclosures are precision, injection ...

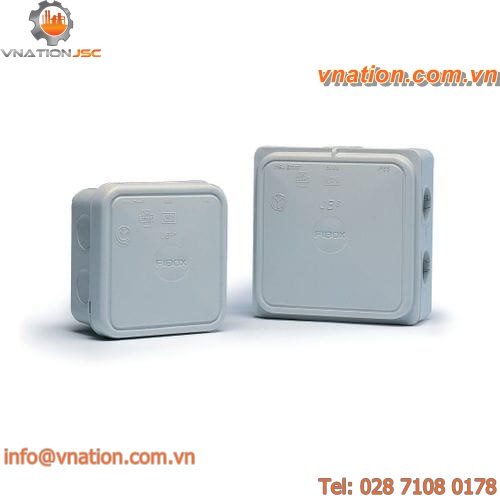

Fibox JB electrical junction boxes are designed for indoor and outdoor use. Enclosures are maintenance free and corrosion resistant. Aesthetic design maximizing installation space ? easy installation. Membrane entries allow flexible ...

Our Data Concentrator solutions offer unparalleled support for smart metering deployments while providing upgradability to comprehensive Smart Grid capabilities via a range of hardware and software product options. This infrastructure ...

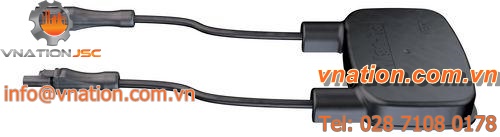

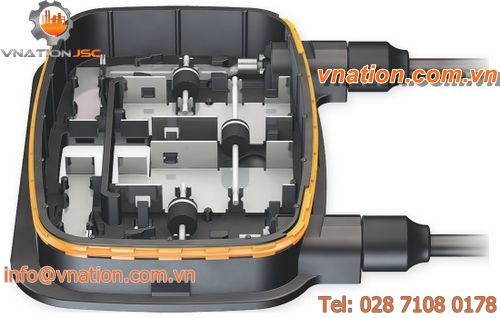

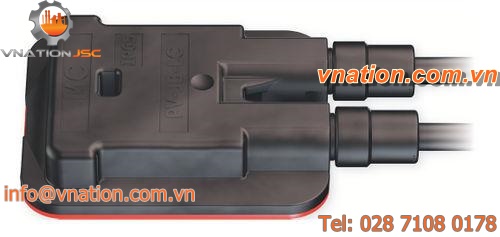

The PV-JB-LC Series of photovoltaic junction boxes is created out of copper and tin-plated materials. It is equipped with a maximum system voltage that ranges from 600 V up to 1000 V. This device carries the ability to work under a temperature ...

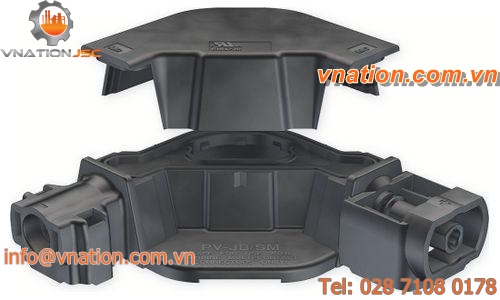

Multi-Contact PV-JB/SM series photovoltaic junction box has rated current of 10A and rated voltage of 600V (UL) and 1000V (IEC). It has been developed especially for fully automated assembly and thin film PV modules. The box has a temperature ...

The rated current and rated voltage are designed in a copper and tin plated materials. They have ambient temperature ranging from -40?C to +85?C. These valves have bus ribbons orientation digit of 10a 1500v dc iec to 600v 1000v dc ul. ...

Junction box PV-JB/Westlake is now IEC certified for 1500 VDC and 1000 VDC UL. The multi-contact PV junction box Westlake (PV-JB/WL-H) can be used in high performance PV modules anywhere in the world. It is a flat box ready for installation ...

The Selco E5520 series engineered by Littelfuse, is a breakout box intended for TDC and crank angle sensor applications. In addition, it highlights a CE label certification.

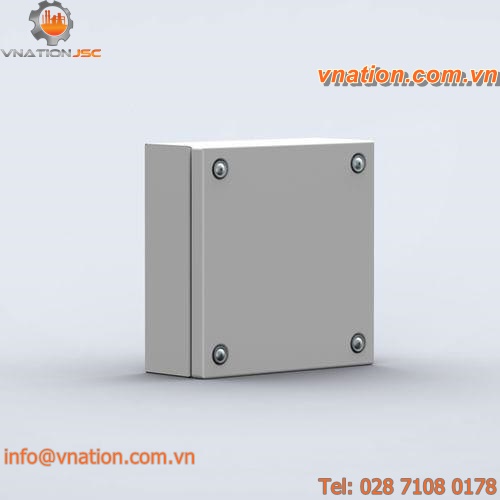

The SDF model manufactured by ETA, is a sheet steel junction box that offers an IP66 degree of protection. This apparatus consists of a box and a lid that is composed of sheet steel. In addition, its lid is fixed by captive screws. This ...

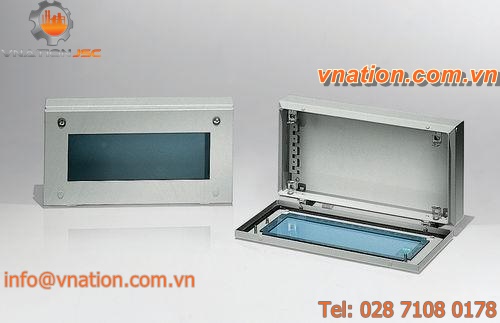

The SDVX by ETA is a set of terminal boxes which has a transparent lid. The whole set comes with a box and lid which is made of sheet steel. Its lid has a hinge which are fastened by screws and plexigas for internal inspection. Its body ...

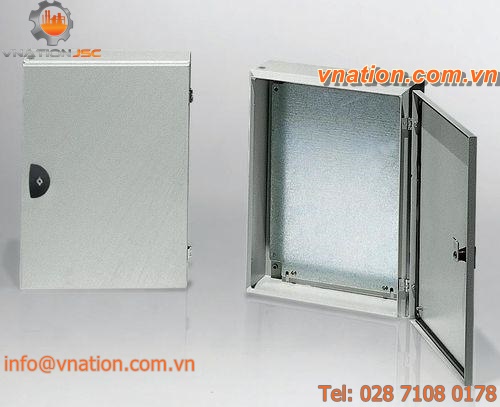

The SDP Terminal Box is designed with box and door made of sheet steel. The door has a dual bar key locking mechanism. This terminal box is manufactured with 9 different standard sizes. It is also under the IP55 protection grade. The ...

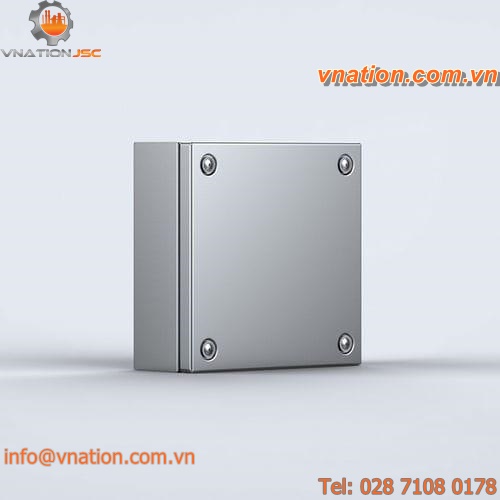

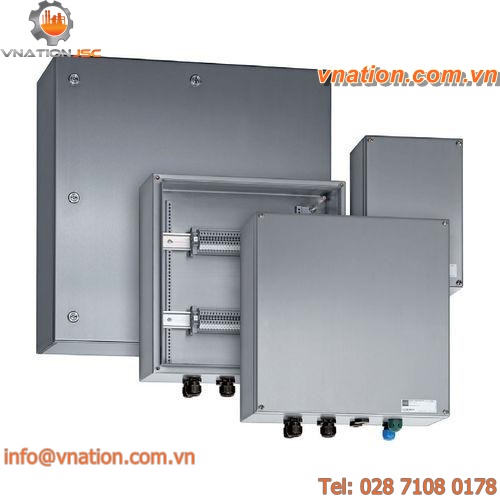

The Stainless Stell Junction Box E GRAN is made from AISI 304L stainless steel sheet or AISI 316L upon request. It comes available with top covering and stainless steel captove screws. Also, it is available with silicone seal and patterned ...

The Work-area Outlets is manufactured by the TE Connectivity. The units are available in a vast range of variations including flush mount, surface mount and finally, and furniture mount styles. It effectively allows customization of individual ...

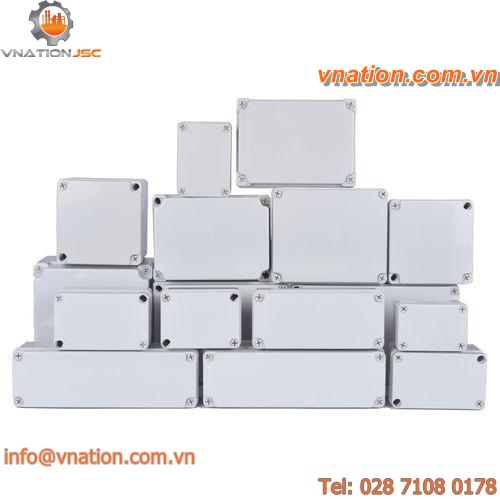

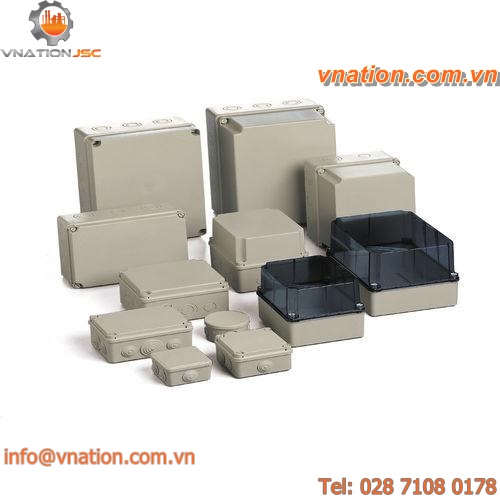

AG Series Waterproofing Elecrical Junction Box/ Enclosures 1. IP rate: IP66 2. Material: ABS (housing) PC(cover) 3. Installation: Wall-mounted by screw holes inside 4. Cable input/output: Avaiable for any size hole for cable glands ...

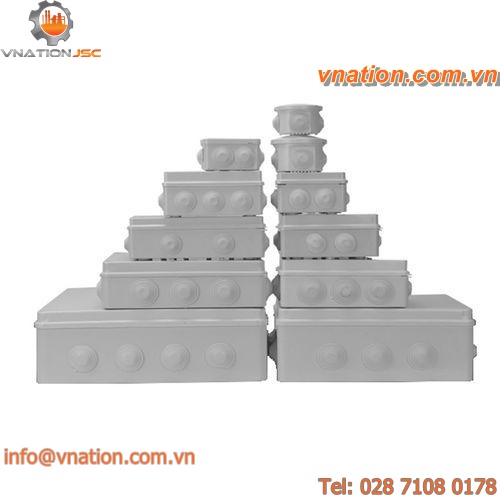

BA Series Pre-opening Hole Junction Boxes 1. IP rate: IP65 2. Material: ABS 3. Color: Grey Size: Please check attached spec in DirectIndustry or contact us for more info!

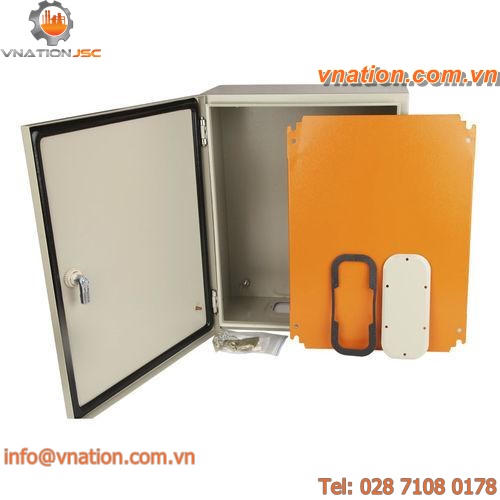

IP65 Metal Distribution Box 1. Material: Cold-roll Steel sheets 2. Color: Grey 3. Dimension: 300x400x200mm 400x500x200mm 500x600x200mm 600x800x200mm

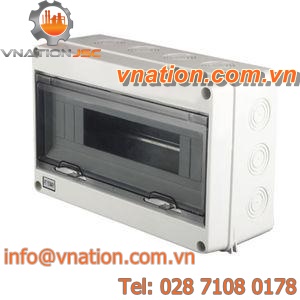

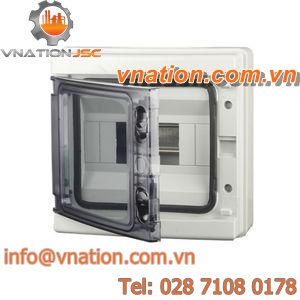

HA Series Plastic Distribution Box with transparent side-opening cover 1. Housing-ABS + Transparent PC cover (flame retardant) 2. IP65 Waterproofing 3. DIN NS35/7.5 rail provided Dimension: Series Code Dimension(WxLxH in ...

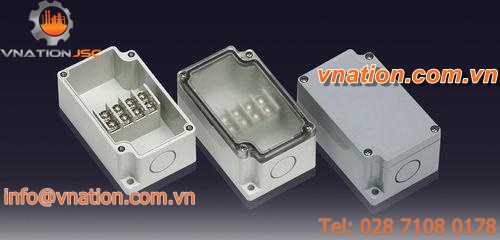

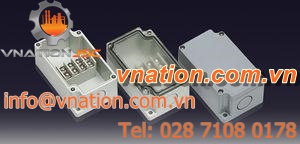

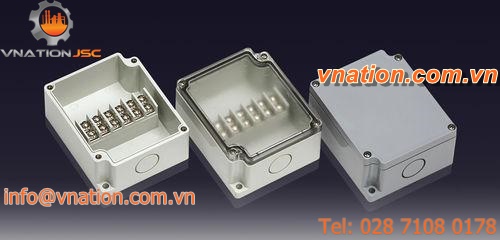

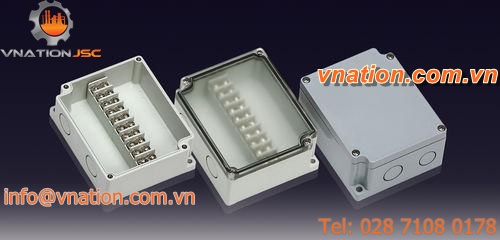

1. BOXCO's terminal block box is made from flame-retardant material. 2. It has an integrated 4P terminal block and there are 21mm molded knockouts on each end. Level of dustproof and waterproof IP 66/67 Impact test IK 07/08 ...

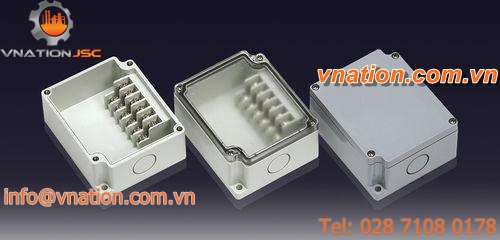

1. BOXCO's terminal block box is made from flame-retardant material. 2. It has an integrated 6P terminal block and there are 21mm molded knockouts on each end. Level of dustproof and waterproof IP 66/67 Impact test IK 07/08 ...

1. BOXCO's terminal block box is made from flame-retardant material. 2. It has an integrated 4P terminal block and there are 21mm molded knockouts on each end. Level of dustproof and waterproof IP 66/67 Impact test IK 07/08 ...

1. BOXCO's terminal block box is made from flame-retardant material. 2. It has an integrated 6P terminal block as T type(stair type) and there are 21mm knockouts on each end. Level of dustproof and waterproof IP 66/67 Impact ...

1. BOXCO's terminal block box is made from flame-retardant material. 2. It has an integrated 10P terminal block and there are four knockouts with 21mm on two sides. Level of dustproof and waterproof IP 66/67 Impact test IK ...

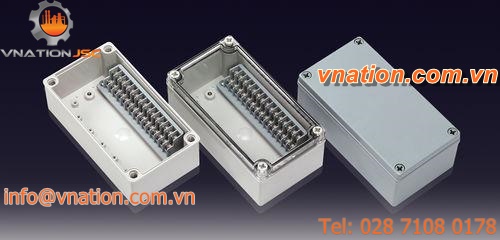

1. It is 15P product and available to use in T type. 2.Terminal block can be separable so it is easy to work. Level of dustproof and waterproof IP 66/67 Impact test IK 07/08 Temperature range ABS : - 40 ~ + 70 ? PC/ABS ...

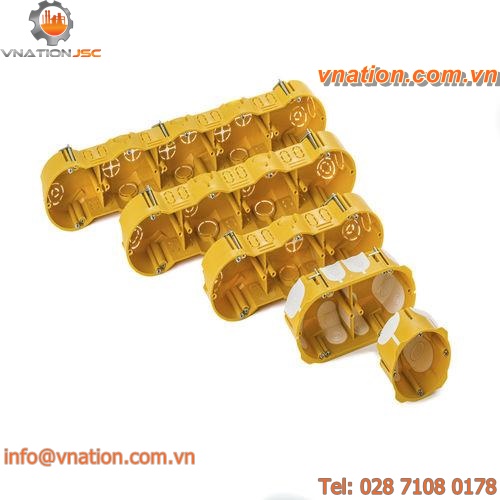

Mechanism and junction boxes for hollow walls. Mechanism and junction boxes specially designed to be installed in prefabricated walls (such as plasterboard, wood, fibreboard, etc.). Manufactured with high-quality and high-strength ...

The LIGHT Series of tight derivation boxes are constructed from halogen free long lasting plastic material and are sealable. The EV versions include 25 m and 40 mm conical cable glands, the EX versions have premolded entries and the EL ...

The device TECNO is a series of metal terminal boxes manufactured by IDE - I DIVISI?N EL?CTRICA. They are specifically designed for indoor electric equipment basically to control, bypassing and distribution of industrial equipment. The ...
