Guide shafts and rails

Rail length: 1.5 m - 5 m

Diameter: 5 mm - 100 mm
Length: 3500 mm - 6700 mm

The Haydon? LRS? Series of Precision Linear Guide Rail, manufactured by Haydon Kerk Motion Solutions, is mainly used to provide controlled positioning along the axis of a robust aluminum linear slide. This device is composed of stationary ...

SA-OUV Cast Iron Open Shaft Support SA-OUV-AL Aluminium 60? Open Shaft Support BASE-OUV-AL Aluminium Double 60? Open Shaft Support

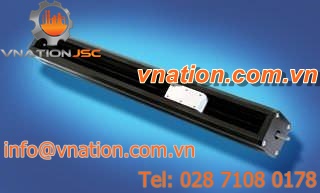

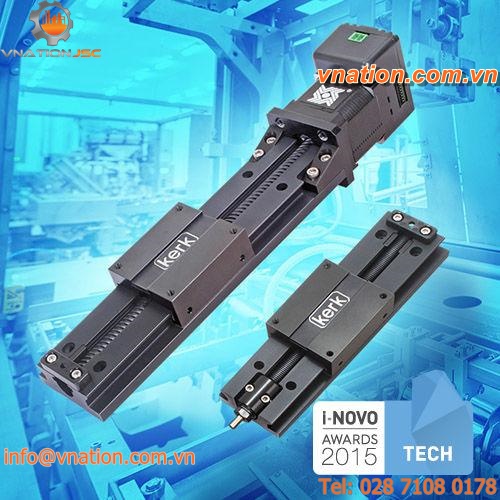

Made of the same quality components used in the RGS? series, the Kerk? WGS Linear Slide utilizes a screw-driven carriage that offers reliable, continuous linear speed while maintaining accurate positioning. The length and speed of the ...

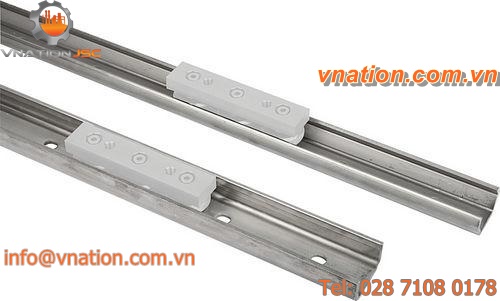

SLIDE RAIL BEARINGS represent the latest in sliding friction - low profile rail guide - technology. Slide Rail's unique 45 degree load plane ensures moderate load/speed capacity coupled with easy, quiet linear motion. Slide Rails are ...

The BGS Linear Rail combines many technologies into a single integrated linear motion platform. The system provides excellent load capability and is engineered for both normal and overhanging loads. High roll, pitch, and yaw moment loading ...

Rail length: 0 mm - 2000 mm

Rail length: 25 mm - 700 mm

The Mechrail rail system assortment has different configurations and sizes as well as extruded aluminum profiles. The intricate designs have flanges and T-channels and create profiles that come with maximum strength. This give the unit ...

Diameter: 0.19 in - 2 in
Length: 0'00" ft - 12'00"

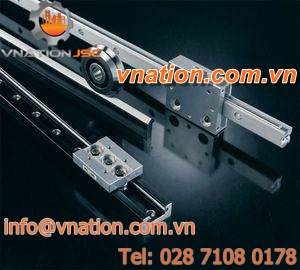

This guide roller and V profile rail is developed by Norelem. It features a galvanized surface finished version and is made with steel materials. The fixed bearing rail is the mainly responsible for absorbing of radial forces and axial ...

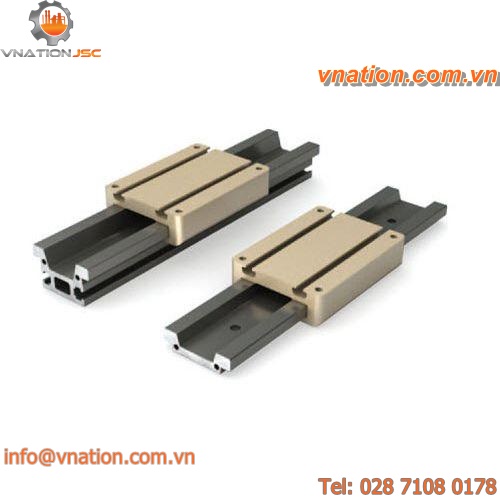

The aluminium linear rail D409 is machined to the length of the customer. The rails are fitted with one or sereval aluminium runner. Each runner support a given load. Increasing the number of runners increases the admissible load by ...

Type M/V Plastic-coated sliding guides friction value 0.06 - 0.1 at an area pressure of 0.5 N/mm speed up to 15 m/min at high transverse forces or transverse accelerations, vibrations and impacts for high-frequency, extremely short strokes V-rail ...

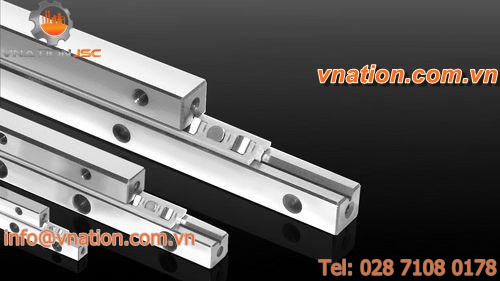

Cross-roller guide rails type R/K - low friction coefficient (M = 0.003) - speed of up to 50 m/min - Type R (roller guide) is used in large load and highest precision requirements - Type K (ball guide) is less dirt sensitive and suitable ...

Diameter: 22 mm - 68 mm
Length: 20 mm - 80 mm

Diameter: 6 mm - 25 mm

Diameter: 6 mm - 10 mm
Length: 66 mm - 120 mm

The linear guide rail, manufactured by Reliance Precision Limited, is used for light load applications. The device is a cost-effective product with a minimum frictional drag and long wear life. The device is made of a center less ground ...

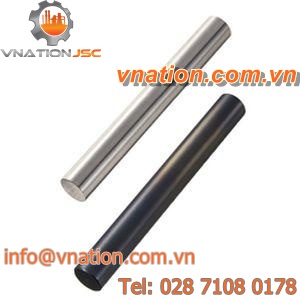

The precision shaft and pings, manufactured by Kinto, are made with highly efficient CNC machines. This device is suitable for all kinds of applications.
