Data acquisition cards

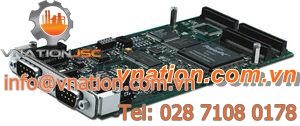

Technical Details intelligent PMC CAN field bus controller PMC Interface Single PMC mezzanine slot required 32 bit PCI bus (PMC form factor) 3.3 V / 5 V 32 bit PCI interface 33 MHz bus clock frequency CAN/CANopen IBM PowerPC 405GPR, ...

4-port PCI Express Intelligent GigE Vision Frame Grabber PCI Express? x4 compliant GoE (GigE Vision Offload Engine), FPGA image reconstruction, No packet loss, No CPU workload GigE Vision, GENiCAM and GENTL Compliant Automatic IP ...

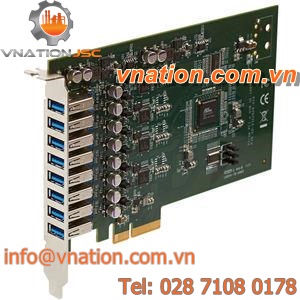

PCIe x4 Gen2 interface 8 USB 3.0 ports 4 Independent USB 3.0 Host Controllers User-configurable 900mA and 1500mA current limit Supports Windows XP/7/8 and Linux Compliant with USB 3.0 specification Rev. 1.0 and Intel® xHCI specification ...

2-port PCI Express Intelligent GigE Vision Frame Grabber PCI Express? x4 compliant GoE (GigE Vision Offload Engine), FPGA image reconstruction, No packet loss, No CPU workload GigE Vision, GENiCAM and GENTL Compliant Automatic IP ...

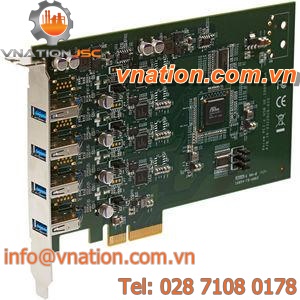

PCIe x4 Gen2 interface 4 USB 3.0 ports 4 Independent USB 3.0 Host Controllers User-configurable 900mA and 1500mA current limit Supports Windows XP/7/8 and Linux Compliant with USB 3.0 specification Rev. 1.0 and Intel® xHCI specification ...

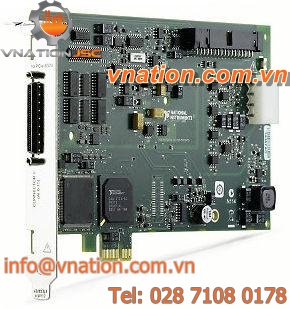

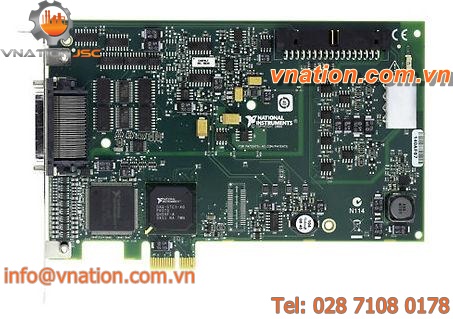

Utilizing the latest software engineering , NATIONAL INSTRUMENTS created another addition to their top of the line legacy devices , the NI PCIe - 6320 the X Series Data Acquisition. provides optimum performance each and every time in ...

National Instruments NI PCI-6220 data acquisition devices feature 24 digital I/O, 32-bit counters and digital triggering. The use of NI-MCal calibration technology leads to more precise measurements. PCI-6220 offers NIST-traceable ...

16 analog inputs, 250 kS/s, 16-bit resolution, ?10 V Two analog outputs, 900 kS/s, 16-bit resolution, ?10 V 24 digital I/O lines (8 hardware-timed up to 1 MHz) Four 32-bit counter/timers for PWM, encoder, frequency, event counting, and ...

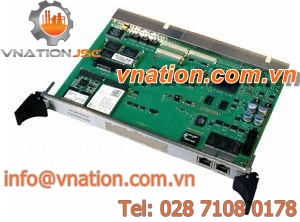

The CSBX-6315 Single Board Computer offers a unique platform for embedded applications requiring a flexible architecture for data acquisition and monitoring with a large non volatile storage capabilities. As based on the CompactPCI ...

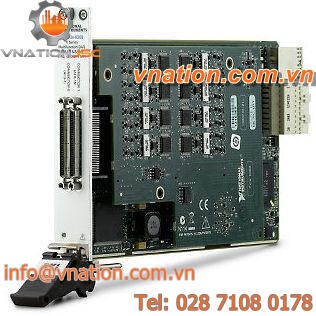

National Instruments NI PXIe-6366 simultaneous X Series Data Acquisition devices include 8 simultaneous analog inputs at 2 MS/s/ch with 16-bit resolution and 16 MS/s total AI throughput. Also included are two analog outputs, 3.33 MS/s, ...

PCMC Card, for photon counting measurements on 3 channels The 10 KHz Photon Counting PCI Board is designed for high temporal resolution (fast kinetics) measurements of fluorescence. The card was designed to eliminate the need of switching ...

The mvHYPERION-CLb is a frame grabber manufactured by Matrix Vision. It provides a continuous data rate of 200 MB/s through the PCI Express®. The unit features a trigger and flash control for cameras on-board. It operates with ...

DCA2D200K Card, for frequency-domain applications The dual channel data acquisition board is designed for time-resolved data acquisition using the frequency-domain technique in conjunction with Fast-Fourier-Transform (FFT) routines. ...

The PC2-COMP Express frame grabber is a cost effective video capture board designed to meet the dynamic requirements of general-purpose video applications. Available as half-size PCI Express x1 form factor board, the PC2-COMP Express ...

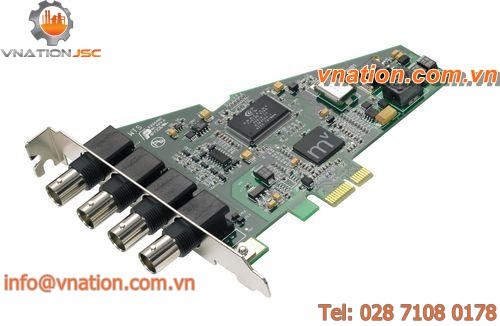

mvSIGMA-SQ / -SQe is a frame grabber with four channels for gray scale or standard color video signals. There are 16 independent units for easy switching between the four channels which makes it perfect for surveillance applications. ...

The PC2-Vision Express frame grabber is a high-performance, PCIe image acquisition board developed for cost-sensitive machine vision applications. The board’s acquisition circuitry is exceptionally versatile and designed to interface ...

The APCI-3701 has length measurement that can be directly connected and acquired up to 16 half-bridge or LVDT transducers. The calibration software or "ConfigTools" that guides you through each step of the deployment, starting with the ...

The IDS is a company which manufactured the Eagle with Rev. 3.1, PCI interface. The device is a high quality color and monochrome frame grabber integrating the features of an industrial product which provided for a minimal cost consumption. ...

The DFG SV1 is a frame grabber designed with PAL/NTSC and RS-170/CCIR video formats. It features two composite video inputs and a single Y/C input. The PCI bus and software are included to generate the device. Moreover, this tool can ...

The FALCON Rev. 3.0 is a PCIe analog frame grabber manufactured by IDS. It is suitable for medical technology. The device is equipped with one SVHS video input and two CVBS-video inputs. WDM, VfW driver, ActiveX, TWAIN drivers are ...

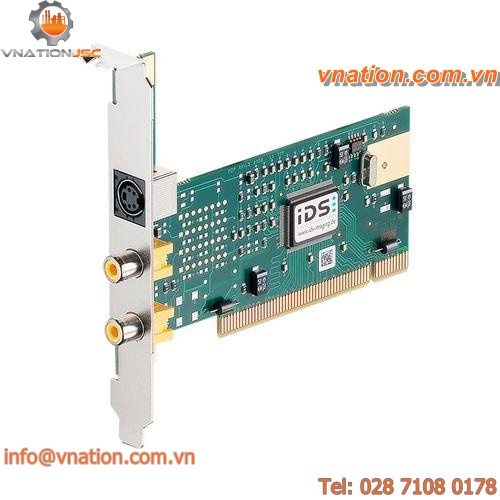

This is a top quality LOW PROFILE color and monochrome frame grabber integrated with PCI interface. The main application of use is medical technology. There is one SVHS video input and two CVBS-video inputs in the device. Users can expect ...

The SuprDAQ is a high performance data acquisition and control system with up to 48 analog and digital inputs and output channels. An on-board microcontroller provides stored program operation, as well as conditional data storage, limits ...

The FALCONplus Express is a PCIe analog frame grabber manufactured by IDS. It is suitable for safe engineering and medical technology. The device is equipped with 4 CVBS video inputs, and 1 CVBS video output. It has 12 digital inputs, ...

The DAQ-1212ETM is a unique product in the data acquisition industry. It provides eight channels of analog input and eight channels of analog output, both with 12-bit resolution. Eight digital inputs and eight digital outputs round out ...

IDS presents FALCONquattro with 4 frame grabbers on a single board and PCI interface. It is ideal for safety engineering and medical technology applications. It features 4 parallel video channels, 16 CVBS video inputs, 1 CVBS video output. ...

The TPCE-I is a 4 channel analog input data acquisition card with galvanic insulated inputs. Each input is insulated to each other and to ground. This makes the measurement more simple in setups where a ground connection is not favored ...

The FastX1703 framegrabber series is for users who anticipate a demand for extreme I/O requirements and/or higher bandwidth, complex image processing and real-time high-speed storage in a cost effective platform. The base FastX1703, is ...

Elsys TPCE transient recorder modules are digitizers with high-precision and high-resolution. They include up-to-date features such as continuous data acquisition, advanced triggering, digital input lines (markers), differential inputs, ...

The success of the FrameLink and VCE series of PCMCIA frame grabbers has positioned IMPERX as the world's leading supplier of frame grabbers for laptops. Using this experience as leverage, we have developed the FrameLink Express, a Camera ...

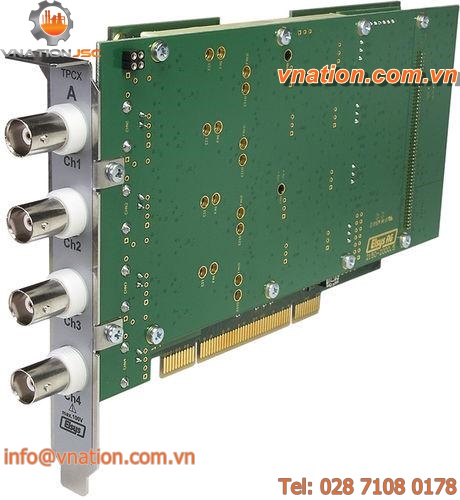

The TPCX Data Acquisition card of Elsys has extensive precision and resolution digitizers. The DAQ provides up to 240 MS/s sample rate, and 14-bit and 16-bit vertical resolution. This can be used both digitally and analogically. For digital ...

X-GCU is the data acquisition and control board of Detection Technology?s next generation digital X-ray detector sub-system platform. X-GCU together with DT?s digital X-Cards provides a complete detector sub-system for X-ray image ...

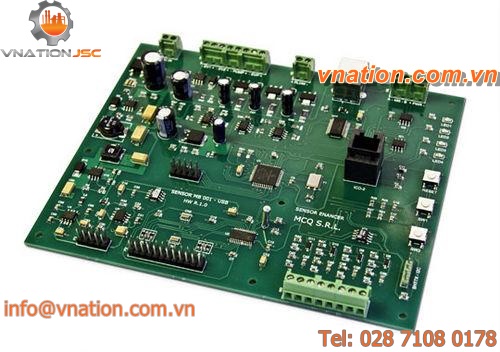

The MCQ data acquisition board is the ideal unit to use for complete data acquisition within test and measurement applications, and can also be used to control a number of different types of actuator. This high efficiency unit can collect ...

myDatalogEASYpcb Application Integration of rapidM2M in your instruments for: Measurement amplifiers Analysis instruments Machines Probes Features: 4x Inputs (analogue/digital) 1x Open Collector Output Optional DC/DC Converter f?r Sensorsupply 1x ...

The BKPF-L601C is an A to D converter board that modifies a 525 or 625-line material analog video signal to a material serial digital video signal. In combination with other BKPF-L Series function boards, the BKPF-L601C can set up in ...

Fast and Flexible Genesis High Speed offers a wide selection of input cards with sampling rates of 20 kS/s to 100 MS/s Data acquisition cards of the Genesis High Speed family combined with the mainframes offer maximum flexibility. ...

This is a ten-bit 4:2:2 Frame/Line Synchronizer BKPF-L Series function board that is integrated with a Freeze control which allows for phase adjustment and can be field/frame auto/manual selectable. No more timing problems because it ...

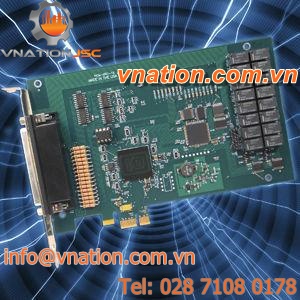

16 optically isolated, non-polarized digital inputs Switchable filters on inputs for electrically noisy environments Optically isolated channel to channel and channel to ground Can detect input state change and assert interrupt 16 electro-mechanical ...

4 ch 3G/SDI Video Capture Card HD, H.264 High Profile Hardware Compression Review/Record resolution up to 1920x1080p @30/25fps per channel SDI Embedded Audio

There are various features available for this model, including support for a 32bit 5V PCI bus, as well as 16bit A/D resolution. The sampling rate is up to 100kS/s, while the differential analog inputs are 32 single-ended channels of 16 ...

Matrox Morphis is a cost-effective peripheral board that features a dual or quad decoder design for fast camera switching or simultaneous acquisition of up to four live video streams, and includes real-time JPEG2000 compression/decompression. Key ...

Matrox Solios eV-CL is a value-packed PCIe? x4 frame grabber that supports the full-range of Camera Link? interfaces (dual-Base, single Medium/Full, 10-tap and PoCL) and offloads typical pixel pre-processing tasks. Benefits * perform ...

The PCI-20428W Series Low-Cost PC Data Acquisition Boards are ideal for general-purpose data acquisition, test, measurement and control applications. They include all the basics: analog inputs and outputs, digital inputs and outputs, ...

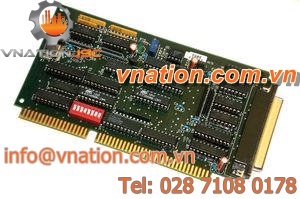

The PCI-20041C-2A and PCI-20041C-3A (DMA version) are customizable data acquisition boards that interface directly with the internal bus of ISA (PC/XT/AT) computers. The boards have 32 points of fully buffered digital I/O already on board, ...

32 SE/16 DI Analog Inputs Sampling Rates up to 1.25 MHz 12/16 Bit Resolution 2 Waveform Analog Outputs at up to 500 kHz per Channel Option, 32kSample for Output Buffering 16 digital I/O, which can be synchronised with the Analog Inputs. 4 ...

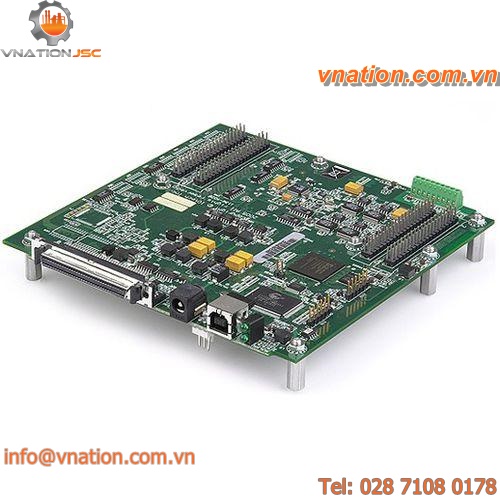

Key Highlights Compare the USB-2600 Series and USB-2500 Series. Designed for OEM and embedded applications 16-bit resolution 1 MS/s sample rate Up to 64 single-ended analog inputs Up to four 16-bit, 1 MS/s analog outputs 24 digital I/O Four ...

Key Highlights Compare the USB-2600 Series and USB-2500 Series. 8 to 64 analog inputs 16-bit resolution 24 digital I/O, counters/timers (including quadrature encoders) Up to 4 analog outputs 1 MS/s sample rate 4 thermocouple inputs Ideal ...

The IVC-100G-RS is a video capture solution, and is manufactured by the IPO Technologies. The video card has 4 video input channels and a sum of 30 fps each channel. It also has an 8 built-in GPIO relay channels (4 in/4 out) and an I/O ...

The PCI-ADC is a PCI-compatible halfcard which provides analogue and digital input/outputs and counter/timers. Eight differential or sixteen single ended analogue inputs are available with 12-bit resolution and programmable gain to allow ...

The PCI-DIO is a PCI-compatible half-card which provides isolated digital inputs, outputs and counter/timers. There are 16 galvanically isolated, current-limited digital inputs available on the board, which will accept up to 50 volts ...
