Clamping plates

The KP04, manufactured by Siko, is a clamping plate that is ideally used for shafts with a diameter of 815 mm. It provides that user with a choice of clamp lever positions. Furthermore, this product offers easy mounting and retrofitting.

The machinging zero point is defined by the centre of the chuck in the GPS 240 system. The chuck can be mounted on the machine table of any machine tool. The standardised hole pattern allows clamping from below of workpieces, fixtures ...

Jergens Workholding Solutions offers 5-Axis Top Plates for mount fitting that are built with mounting holes, but cannot be paired with the QLS grid. These are designed with 1018 Steel and toughened brushings. They also have a 0.0005"/ft. ...

Mount fixtures that already have mounting holes that do not match the QLS grid. Picture for category 5-Axis Blank Fixture Plates Available in Round or Square styles Material: 1018 Steel Thickness Tolerance: +/- 0.005 (.13mm) ...

The AL 50 x 120 T5 is a belt end joining clamp plate, but is not made to adjust or alter the belt tension. The aluminum plate is 120 mm long x 50 millimeters wide, with a T5 toothed belt measuring at 25 millimeters.

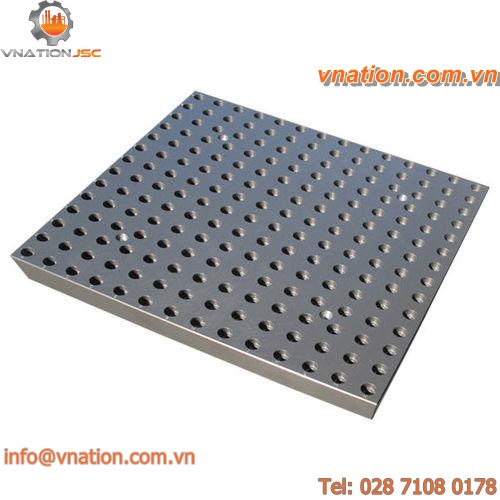

Here you can find our screw-thread grid plates. These are produced of tool steel and are therefore very precise. Screw taps are located over the whole surface in a pre-determined raster.

Base plate for the plane table Specifications - High-strength aluminium, Altef?-coated (50 HRC) - Grid profile 25 mm with peg-out bores ? 12.5 mm H7 - For non-torsion fixing of adapter plates and clamping elements with ...

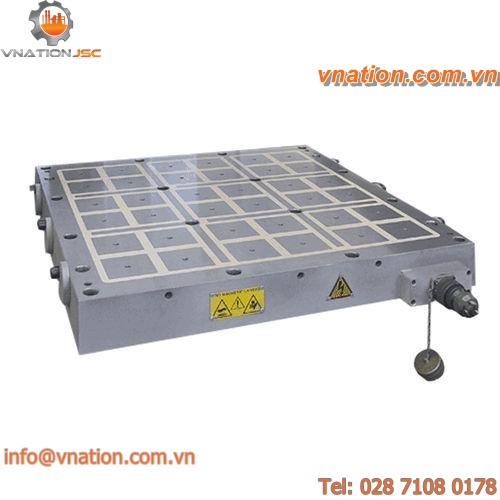

with electro-permanent magnets Magnetic clamping systems with square pole technology offer diverse application possibilities in machining. The arrangement of the magnetic poles guarantees a safe compensation of machining forces in ...

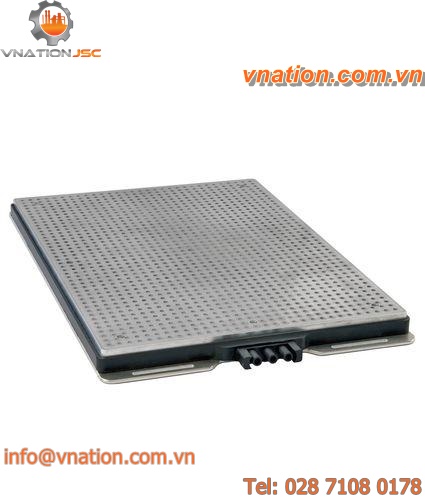

These anodized aluminum plates are for vacuum clamping with flexibility on each T-groove plate with a 4mm foamed caulking strip freely laid along its pattern for sealing it and a hose connectors at the suckers for 6mm hoses. It is able ...

The unit 01060 is manufactured by Norelem. It has a tampered steel material in 1.1181 that was finished naturally.

The unit 01130 is manufactured by Norelem. It is a precision steel plate that is rectangular. The unit is intended for base plates on the fields like mechanical engineering, device construction industries and even on the tool making industries. ...

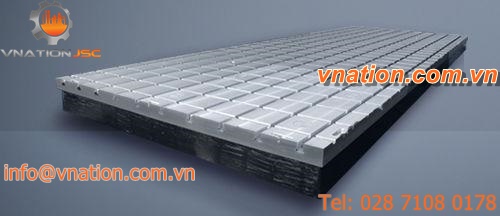

Material: Stabilised GJL 250 grey cast iron or EN AW-7075 On request: Length 800 mm en grey cast iron

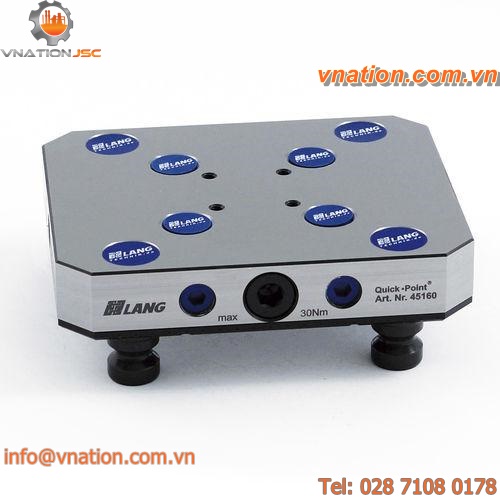

Quick-Point Adaptor Plate - guarantees highest zero-point clamping flexibility! The modular concept of the Quick-Point system allows to chang quick and easy from the 96mm to 52mm grid, in order to clamp small and medium-sized 5-axis ...

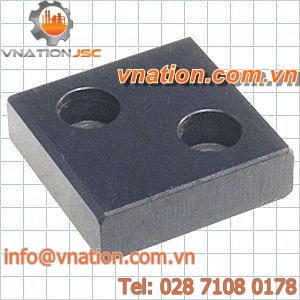

The JIG LEG PLATE is a type of a Precision rest pad that has a large contact area. This device is suitable in accurate high location. It is mounted with two socket-head cap screws that are not furnished. This plate is ideal for it can ...

FEATURES: Precision four-sided tooling block for machining-center pallets. All four faces are accurately finish ground to tight tolerances, and qualified to the base. All multipurpose holes are spaced within .0008" of true position (.0004" ...

CARR Lane Manufacturing Co. provides modular clamping plates that are suitable for many milling machines. These rectangular tooling plates allow connection to generate a selection of length and width combinations. For mounting options, ...

Features: Parallelism: 0.01/100 mm Clamping surface faces: smoothed Hardness: unhardened Material: case-hardened steel Alignment hole and centre hole: with hardened bushes in accordance with DIN 179 Base surface : with hole pattern according ...

High-strength aluminium, suitable for double clamping station K10.2 Note: On request, we can incorporate mounting holes according to your specifications in the fixture plate. On request: Other dimensions, insertion dimensions and ...

High-strength aluminium, suitable for double clamping station Note: Fastening bores for handles are attached to the end faces of the interchangeable pallets. See dimensions table L1 and G1. We can incorporate additional fastening bores ...

High-strength aluminium, suitable for double clamping station Note: Fastening bores for handles are attached to the end faces of the interchangeable pallets. See dimensions table L1 and G1. We can incorporate additional fastening bores ...

STOLLE face plates are produced in a process which excludes inherent stresses and delivers high strength and stability. We can manufacture our face plates according to your preferences. The dimensions of the face plates can thus be designed ...

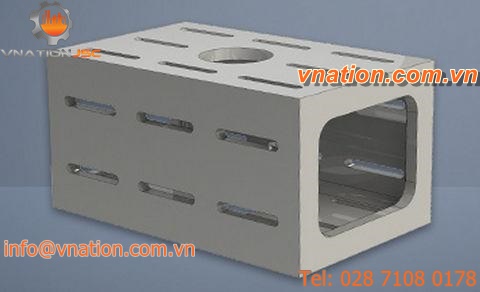

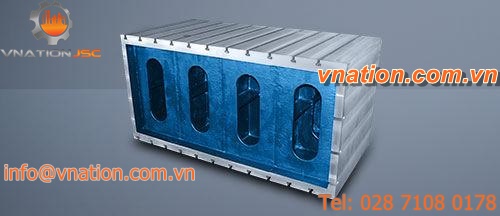

The four-sided clamping blocks from STOLLE with clamping slots offer a wealth of opportunities for the alignment and clamping of your work pieces for machining. We supply these clamping blocks with up to five clamping surfaces. DIN 650-compatible ...

- Material: special cast iron with steel alloy - Wear-resistant surface - Surface according to 876/III machined - 2 frontsides parallel to the clamping surfaces - 4 sides with clamping slots - 2 sides open

The ADP1E is an emergency universal adapter plate. The device measures 6" diameter and 1" tall. The plate is made from 6061 aluminum material. The device consists of one ADP1E and 2 locating pins. A detailed dovetail programming and inspection ...

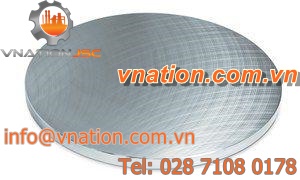

These circular plates are designed from premium steel that underwent thermal treatment for stress alleviation. Available in milled and segment/precision ground thickness variations, these plates can also be incorporated with chamfers ...
