Absolute rotary encoders

Together with Pluto, rotational absolute encoders can be used for safe position determination of machine movements. The encoders are available in both single and multi-turn versions. Main benefits Easy safe communication with the ...

Rotary encoders can be used in all applications that require monitoring rotation rate, speed, acceleration and direction. These sensors can be utilized in many applications found in mechanical engineering, the conveyor industry, material ...

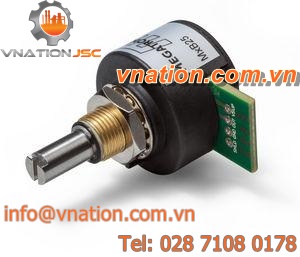

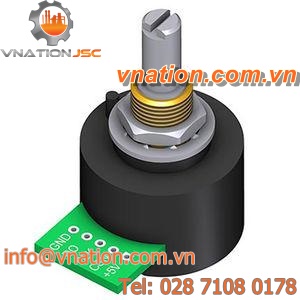

The very economically priced absolute angle sensor MAB25A offers high life time with its polymer bearing. The compact design enables a wide field of applications. The solder lugs allow the flexible connection of the electronic.

The Mini-Wheel? encoder is used for the positioning and dimensioning of defects in the scan axis. It can synchronize data acquisition with probe movement. The Mini-Wheel encoder is waterproof and compatible with the HST-X04 scanner, ...

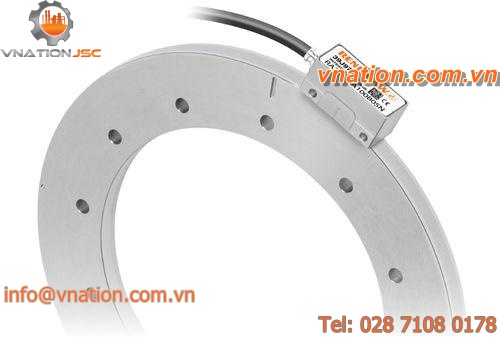

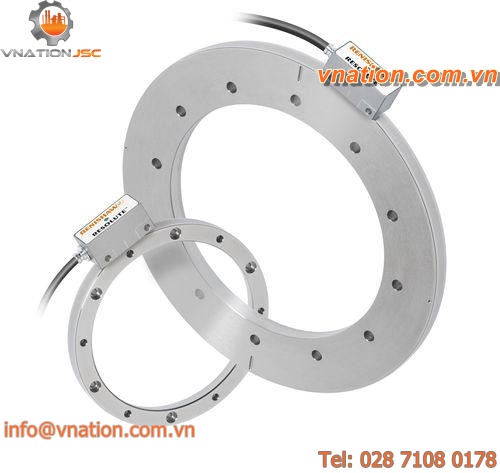

RESOLUTE is a true absolute, fine pitch optical encoder system that has excellent dirt immunity, and an impressive specification that breaks new ground in position feedback. It is the world's first absolute encoder capable of 32-bit resolution ...

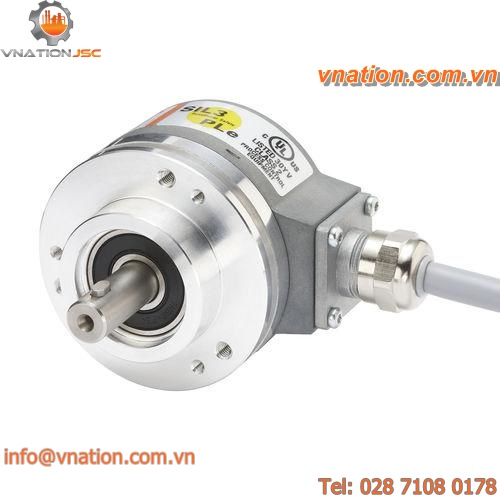

POSITAL has expanded its family of IXARC absolute rotary encoders to include models explicitly designed for use in safety-critical motion control systems. The new encoders are certified to Safety Integrity Level 2 (SIL 2) and Performance ...

RESOLUTE ETR (Extended Temperature Range) is a true absolute, fine pitch optical encoder system that has excellent dirt immunity, and an impressive specification that breaks new ground in position feedback. It is the world's first absolute ...

POSITAL IXARC rotary encoders are now available with a new communication interface, Modbus RTU. Modbus RTU protocols, which are openly published and royalty-free, have emerged as a de-facto standard for simple, robust and cost-efficient ...

?50mm shaft type absolute multi-turn rotary encoders EPM50 series makes possible to realize space saving mounting and to implement various user applications by adding side connector type line-ups. Absolute multi-turn encoders EPM50 series ...

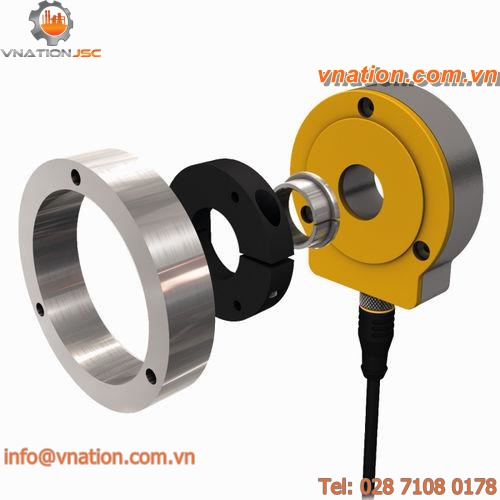

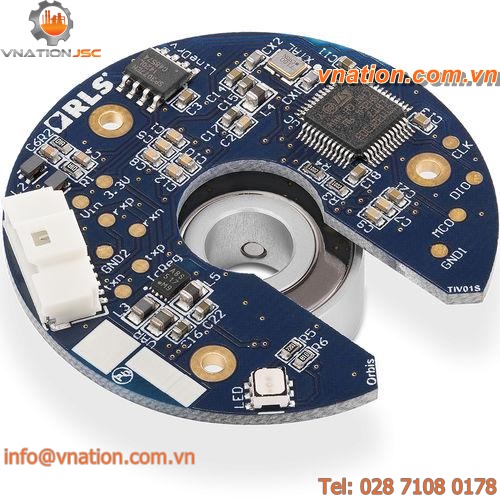

OrbisTM is an absolute, through-hole rotary encoder suitable for applications where a typical OnAxis encoder cannot be mounted at the end of the rotating shaft due to space constraints. The encoder comprises a diametrically magnetized ...

* 12-24VDC power supply of 360 division(Line-up) * Allows to measure absolute variable angle with BCD code * Strong against external impact * Memorizing the absolute position when power is cut off...

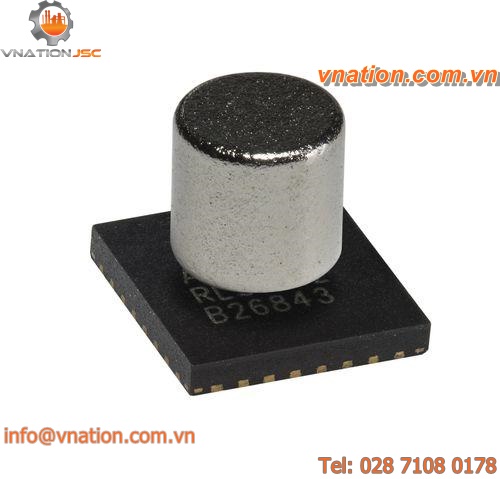

The AM4096Q is a rotary magnetic encoder IC which uses Hall sensor technology for sensing the magnetic field. It offers the same functionality as the AM4096 but comes in a small and compact QFN32 package (7 ? 7 mm). A circular array ...

POSITAL?s new optical encoders with EtherCAT provide high-speed data for positioning and speed control ? they ensure extremely short cycle times of up to 62 ?s. Thanks to their distributed clock function, they allow users to synchronize ...

Absolute encoders using the Hall effect operate contact-free; consequently, they offer very high levels of reliability and a long service life. A variety of models are available on request: Analog output 0 ? 5 V (ratiometric) ...

RESOLUTE? Rotary Absolute Encoders provide up to a total of 36,000 revolutions per minute, as well as a total of up to 32-bit resolution. These encoders are robust and resultant, with an accuracy level of ?1 arc second. They are reliable, ...

The generation of POWERLINK encoder is based on a FPGA solution. Thus, the same design has been achieved at almost the same cost as the Fieldbus design. Cycle times can be up to 400 ?s or reach with a low asynchronous data traffic up ...

Housing diameter: 58 mm

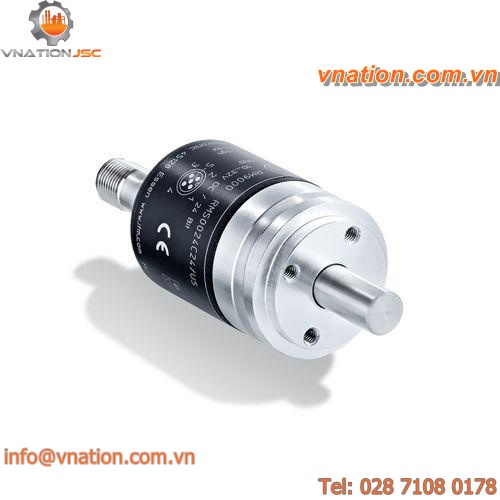

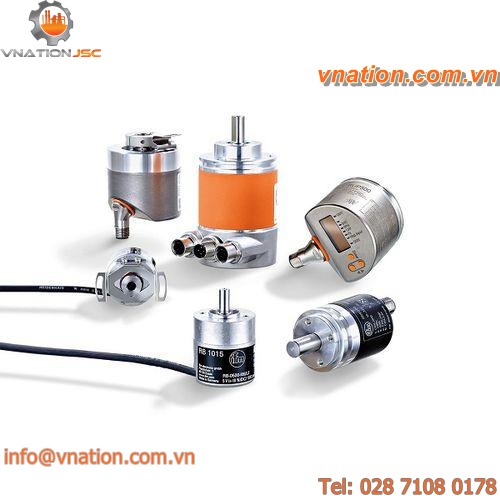

Absolute multiturn encoders for industrial environments from ifm are the latest versions of the magnetic encoder. The use of magnetic sensing principles achieve a very compact design in comparison to optical encoders. At the same time, ...

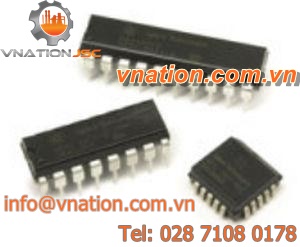

A CMOS Integrated Circuit is a device that performs quadrature decoding, counter, and bus interface functions. Decoder Integrated Circuits are designed to improve system performance in both digital closed loop motion control and digital ...

This equipment is excellently positioned for encoders for mobile applications and can be connected easily through M12 connector. Its LED screen calls for clear display. The parameters of the software included can be set up through CAN ...

Hall effect technology Dual analog output Full redundant function Renforced shielded housing High precision High durability High robustness

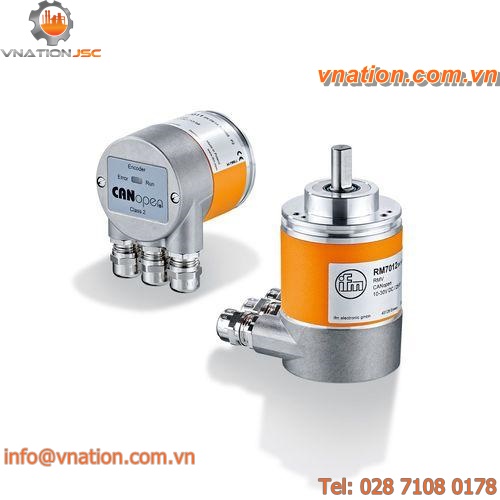

The RN700x, and the RM700x series, which are manufactured by Ifm, are CANopen encoders that provides the position value of each angular position. The value is available even after the occurrence of a power failure. The absolute encoders ...

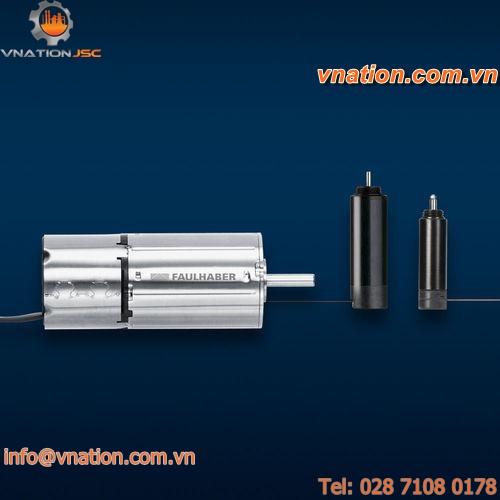

Absolute encoder The absolute encoder in combination with the FAULHABER DC-Motors is ideal for commutation, speed and position control. Absolute means, that each shaft position is assigned to a unique angular value within one revolution. It ...

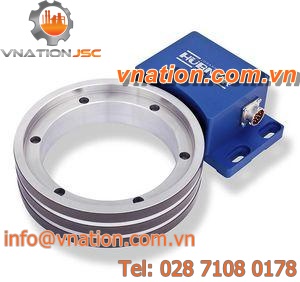

The magnetic absolute encoders MAGA from Johannes Huebner Giessen are available with PROFINET IO, PROFIBUS-DP, EtherCAT and SSI interfaces. Thanks to the magnetic scanning principle these encoders are impervious to dirt and are tolerant ...

Housing diameter: 36 mm
Length: 22 mm

PRA S3 is an absolute magnetic angle sensor. This sensor can pivot and sense objects up to 360 degrees. It is 36 mm in diameter and has a 10 mm shaft. It follows the magnetic principle and is wear free. This product has the protection ...

Housing diameter: 36 mm

This magnetic angle sensor enclosed within flat housing of measurement range approximating to 360?. It is IP67/IP69K protected with stainless steel composition and screw M8 mounting with adequate seawater resistance for external functions. ...

Housing diameter: 50 mm

Housing diameter: 200 mm
Linear encoder resolution: 1 ?m - 20 ?m

Housing diameter: 24 mm - 102 mm

Housing diameter: 36 mm

Housing diameter: 36 mm - 58 mm

Housing diameter: 58 mm

Housing diameter: 36 mm - 58 mm

Housing diameter: 64 mm
Length: 92 mm
Linear encoder resolution: 100 ?m - 500 ?m

The rotary encoders PSENenco are used to determine position and speed. The rotary encoder available in the first expansion phase is an absolute encoder, which is used in the automation system PSS 4000. It supplies diverse, absolute position ...

Bei Sensors' AHK3 is a kind of magnetic rotary encoder that can be used in wind energy, tree harvesting, traction motors for rail equipment and pavement profiling applications. It contains a 4mm shaft, and 30mm blind shaft. The tool offers ...

Besides having 6,000-rpm maximum mechanical speed rates, BEI Sensors' 58" AHM5/AXM5 Magnetic Absolute Single-Turn Rotary Encoders also exhibit standard operating temperature levels ranging from -40 to 85?C. These encoders sport maximum ...

The magnetic rotary encoder provides instant information on the position of a rotating shaft. Developed by Bei Sensors, the blind shaft measures at 36mm with a resolution of 12x13 bits at maximum. From temperatures as low as -40 to highs ...

Housing diameter: 58 mm

Together with Pluto, rotational absolute encoders can be used for safe position determination of machine movements. The encoders are available in both single and multi-turn versions. Main benefits Easy safe communication with the ...

Beckhoff's M3000 absolute encoder enables displacements to be aquired with immunity to failure of power and with a range of measurement corresponding to the length of with a 24 bit measurement range. Manufactured by T+R/Beckhoff, the ...

The HIPERFACE SEK90-HN050AK02 model from SICK, is a motor feedback systems rotary that features a complete position having a resolution of 2,048 increments per revolution. Moreover, it consists of a bearing less motor feedback mechanism. ...

128 sine/cosine periods per revolution are provided by these HIPERFACE? motor feedback systems. They were created for torque and hollow shaft motors. A resolution of 4,096 increments per revolution can be accomplished when the device ...

This is a Motor feedback system for mediocre performance. It enjoys compact design with HIPERFACE interface and Electronic labeling. It also provides compensation of many errors. It has been built sturdily in an isolated version.

The motor feedback system has a body that fits on motors that are 40mm2 in size. It uses 16 sine/cosine periods per revolution and 512 increments per revolution or 4,096 revolutions if the multi-turn system is used. The electronic label ...

The Motorfeedback is fitted with a digital interface HIPERFACE DSL and is a full fledged motor feedback system that is compatible mechanically with the 36 mm SKS/SKM36 housing. It delivers a maximum of 20 Bit resolution per turn and ...

Housing diameter: 58 mm

Model: QR30-090HB-VK Sensor type: Absolute rotery encoder (contactless) Style: External magnet Magnet distance to sensor: 0,5 to 3 mm Measuring range: 90? Output: 0 - 5 V Supply voltage: approx. 8 - 32V dc Resolution: 12 bit (0,09?) Temperature ...

Housing diameter: 58 mm

Housing diameter: 58 mm

Housing diameter: 58 mm

Elap absolute encoders series MEM-Bus comply with the Encoder Profile Specifications V4.1 version 3.162 related to Profidrives. They fulfil the requirements of the Application Classes 3 and 4, that is they provide all functions for scaling ...

Housing diameter: 70 mm

Housing diameter: 58, 63 mm

Housing diameter: 70 mm

Housing diameter: 58 mm

Housing diameter: 63, 58 mm

Housing diameter: 70 mm
