stepper motor controller / compact / programmable / encoder input

Up to 6A, up to 128 microsteps and up to 35v stepper motor controller with built in LCD screen and control interface.

Key Features

?Up to 35v.

?Up to 6A.

?Up to 128 microsteps.

?Modular design, connects to many sister boards that can provide options such as 4-20mA, 0-10Vdc, OEM programmer, RS232 and Optically Isolated inputs.

?Speed control via onboard display, 0-5Vdc analogue voltage, or external pulses.

?Selectable Acceleration settings.

?Selectable Acceleration current.

?Fully programmable with in built LCD and 4 buttons (can be set up as required) enabling complete real time control, easy set up and more.

?Over temperature protections and stall detection.

?Microprocessor controlled enabling exceptional positional accuracy.

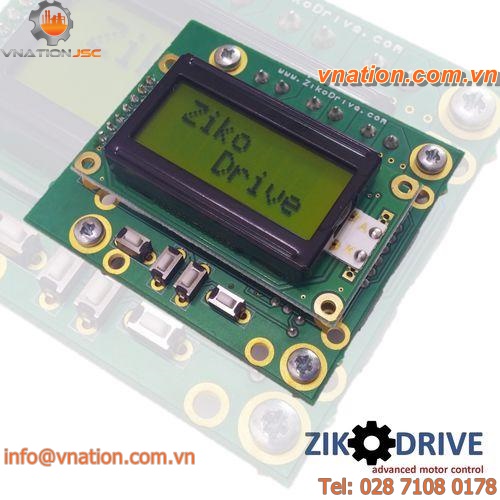

In built LCD screen and buttons are designed around a 2 tier system. The first is the general use or ?user facing? tier in which basic settings can be changed and run (number of revolutions, speed, go). The second is an in depth ?settings? tier which enables calibration of the ?user facing? tier, for use in application such as peristatltic pumps, geared pumps or other similar applications. This enables the ?user facing? tier to be set up to show units such as ml whilst the calibration tier can be used to modify this depending on the application. All of this setup is repeatable so applications such as peristaltics can quickly be recalibrated if using different tubing and/or fluid
