Tool grinding machines

Machine for automatic profile sharpening of band saw blades controlled with 2 CNC axes in wet grinding execution more efficiency and profitability coupled with proven Swiss quality and functionality

Machine for automatic profile sharpening of band saw blades controlled with 3 CNC axes in wet grinding the 3rd axis allows separate sharpening of tooth face and tooth back

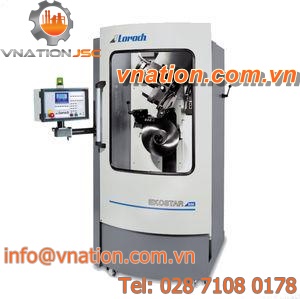

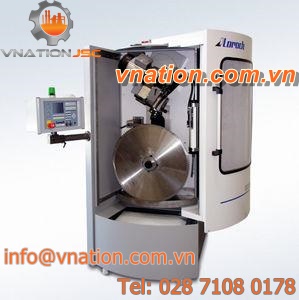

Loroch presents EKOSTAR 500 sharpening machine for metal cutting circular saw blades up to diameter of 500 mm. It uses a cutting edge machine concept for best grinding performance. This latest, completely modern machine concept is useful ...

DESCRIPTION The new M.V.M. band saw blade grinding machine is designed to sharpen band saw blades for wood, bimetallic band saw blades for metals, band saw blades with hard-metal teeth, and special band blades for plastics or food. The ...

EKOSTAR 760 is a premier product which can grind HSS,segmental saw blades and friction saw blades and generate data which can be entered into control panel and through computer calculation tooth pitch and tooth height can be determined ...

COUNTERSINK SHARPENING DEVICE SVR 31 is designed and manufactured with a clamping device, complete with a diametric measurement of ? 10 mm. It is built with a countersink grinding fixture that is commonly suited for the BSG 60. Its integrated ...

Spindle speed: 1400 rpm - 1700 rpm

X travel: 350 mm - 900 mm
Y travel: 190 mm - 250 mm
Z travel: 210 mm - 300 mm

The AF/M provides sharpening, and shaping of straight and profiled knives. These knives are mounted on TAU, and TAUS equipment.

X travel: 400 mm
Y travel: 190 mm
Z travel: 210 mm

The high-output, fully automated WAC 735 QUATTRO is designed primarily for grinding the periphery, clearance angles and T-lands of inserts made from materials that are very difficult to machine, such as carbides, cermets, ceramics, CBN ...

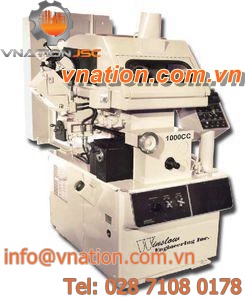

Hopper-loaded machine for jobber-length drills Designed for new drill manufacture only Cam-generated motion and rotation of the drill assures concentric drill points Automatic, self-compensating, tracer-type dresser duplicates dresser ...

High-quantity grinder; production is predictable with electronic "Pace Setter" control Cam-generated motion and rotation of the drill assures concentric drill points Automatic, self-compensating, tracer-type dresser duplicates dresser ...

X travel: 150 mm
Y travel: 75 mm
Spindle speed: 2800 rpm

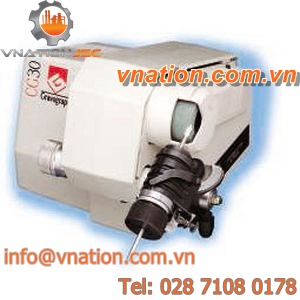

The CG-30 Cutter Grinder Auxiliary Machine utilizes the regarded ideals and know-how of GRAVOGRAPH to offer compact and space-saving grinding services for all kinds of cutters. It employs an automated guiding tool that helps lessen risks ...

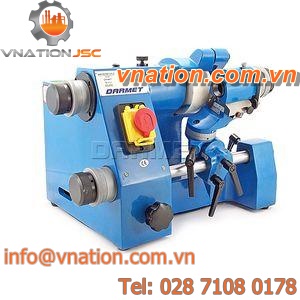

Properties and application: Universal sharpener is used for precision grinding of square tools Equipped with 4 joints with angular scale Possibility for sharpening in any direction Easy to operate Weight - 8 kg

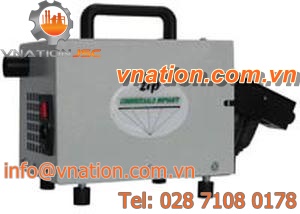

Description Oscillating sharpener for every types and diameters of tungsten electrodes for TIG and Plasma welding Features ZIP is a sharpener for tungsten electrodes that grants the higher precision of sharpening angle from 20? to 65? ...

Spindle speed: 5200 rpm

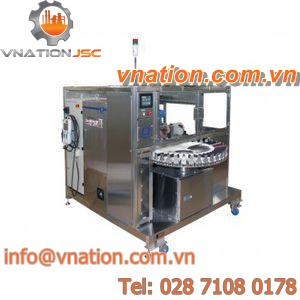

The robot automatically sharpens knives with simple operation. No skilled sharpener is required and any worker can use the machine easily. [Features] ?No skilled labor requirement ?More effective than hand polishing ?Uniformly ...

The Drill sharpener SAE 2000 Series is manufactured by GAMOR. The product is very easy to utilize because it has standard design. The product has rapid and accurate performance with standard sharp, accurate and economical design. Lastly, ...

The SAE1300 Series of Drill Sharpener, manufactured by GAMOR, is specifically designed as portable drill grinder with variable angle. This device is mainly used for HSS and carbide drills. Moreover, this product is configured with ...

The SAE 2500 Model is a drill sharpener developed by Gamor. It is specifically built with portable design and 13 mm to 30 mm diameters. In addition, the framework is supplied with variable angle suitable for HSS and Carbide drills.

The Apollo 13 is an end-mill sharpening machine. It has a shank diameter that ranges from ?4 to ?12. It can accommodate an endmill diameter range of ?4 to ?13 in two flutes and ?6 to ?13 in four flutes. This machine is built with three ...

Description: Milling machine for endshaping to produce halfround, taper, tenons and special shaped ends on round and square wood components with maximum diameter 60 mm. Workpiece under process is blocked through a ...

Description: Special endshaping machine for single or double endshaping operation on straight and slightly bent round items with automatic loading system for connection to further machines for next processings . According ...

Description: Special knife resharpener for knives mounted on the following machines model: TA30, TV45, TV65, TV80, END 50, TS60, TS60CN. This machine is equipped with a specific locking and positioning system for knives ...

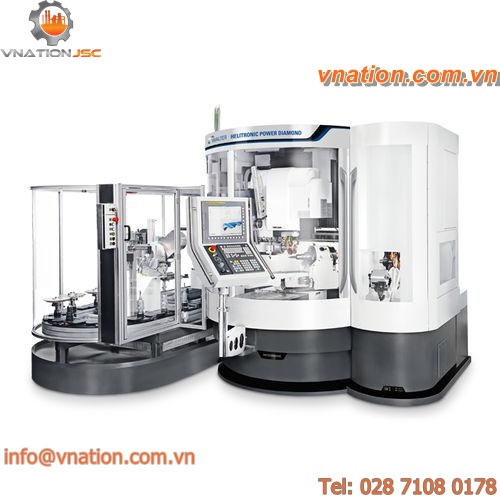

This 5 axis precision tool grinding machine was developed for the manufacturing and regrinding of precision tools. It is equipped with the high speed path control unipos 820-W, a wheel spindle axis and a work piece loader axis as well ...

Interactive screen display and control + Digitalized parameter input + Easy operation + Time saving + Tooth profile selection + Self-diagnosis system + Enhanced memory system

The SG-450 series is manufactured by Soco, and is a chip breaker slotting machine that is integrated with CBN grinding wheel, which has a saw blade diameter of up to 450 mm. It has a maximum tooth pitch of 25 mm that offers an extremely ...

Drill bit sharpener Model 148 for manual operation For re-sharpening paper drill bits from 3.0 to 20.0 mm ?. Accessory 1 hand crank for drill bits from 3.0 - 8.5 mm ? (shaft ? 11 mm) 1 hand crank for drill bits from 9.0 - 14.5 mm ? (shaft ...

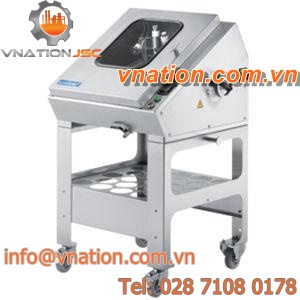

Sharpener KSG processes the blades gently with short setup times thanks to its intelligent sharpening technology. The sharpening unit is positioned via a visor. Sharpener KSG guarantees rapid, reproducible sharpening and has a long service ...

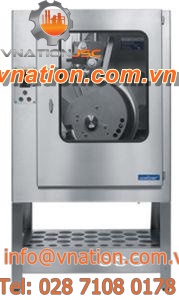

Sharpener SSG is suitable for gentle processing of all Durablade? involute blades with low material abrasion. The compact unit for various sharpening angles ensures constant sharpening of the cutting edge thanks to the rotating contour ...

The Fabris HR254 is a CNC hob sharpening machine manufactured by Seiwa. The unit is designed with swivel angle of grinding head at a maximum of ?20?, out diameter of grinding wheel of 60 - 250 mm, and a tool spindle revolution of up to ...

The Seiwa-Fabris HR355 is a CNC hob sharpening equipment manufactured by Seiwa. It is designed with a maximum diameter size of 350 mm, with a 400 mm length of workpiece. The module of workpiece has a maximum size of 32 mm, while the ...

Spindle speed: 0 rpm - 6000 rpm

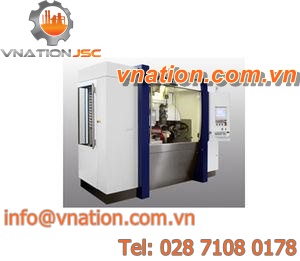

The Gleason-Hurth SRS 410 machine meets or exceeds the requirements for shaved gears with operation simplicity combined with highly sophisticated software. It features a 0.5-15mm nominal module range, 75mm maximum face width and a 400mm ...

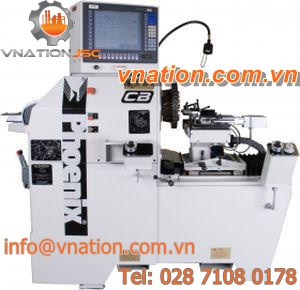

The PHOENIX? CB Cutter Build Machine is the world's first computer-controlled face cutter set-up and measuring fixture. The Machine can be used to build face mill and face hob cutter heads with a minimal radial run-out. It allows you ...

X travel: 460 mm
Y travel: 320 mm
Z travel: 660 mm

Spindle speed: 0 rpm - 10500 rpm
