Other grinding machines

Type KV26 KV36 Grinding Wheel Motor(HP) 5HPx2P 5HPx2P Grinding Capacity(mm) 600 900 Coarse Wheel Size(mm) 10" 10" Weight(kgs) 380 kgs 650 kgs Machine Size(mm) 1430x920x1550 1800x920x1550

The program of KEF tungsten grinders is among one of the biggest and widest on the market. It offers tungsten grinders which are handhold portable, wet grinders and models with powerful dust extraction as portable or stationary.

Cutting and Grinding machine offline The machine has been designed to cut both ends of the pipe and machine the spigot end. The model is designed for pipes of diameters from ND 300 mm up to ND 3000 mm. The machine is equipped with ...

Spindle speed: 4000 rpm

X travel: 90 mm
Y travel: 100 mm
Z travel: 135 mm

The PSM series has been designed as a highly productive travelling column grinding machine. All grinding movements are carried out by the three primary machine axes. This design allows adequate space to develop customer specific applications. Example ...

Spindle speed: 2000, 1000 rpm
Distance between centers: 0 mm - 845 mm

Special-Edge- and Bevelling Grinding Unit Type SKF for shipbuilding parts The so called shipbuilding parts are standardized profiles to strengthen floor and wall parts. These parts are welded in a sandwich-way with the profile in between. ...

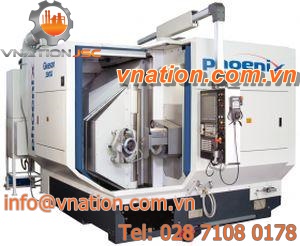

Based upon the highly successful Phoenix platform, the Phoenix? 280G meets the need for improved bevel gear grinding performance with a highly productive new design that?s simpler, more reliable and easier to operate and maintain and ...

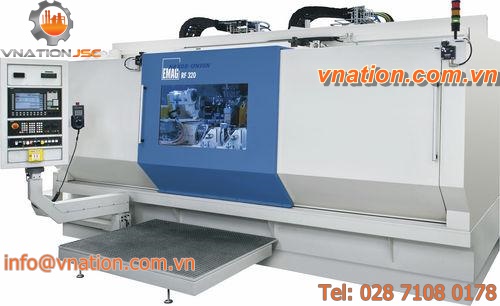

EMAG grinding machines of the RF 310/320 series is used for work on high and low ends of crankshafts with length up to 1,500 mm and weight up to 180 kg. It features a grinding wheel that grinds with single or multiple plunge cuts, and ...

Benefits G6 Series - Maximum output due to an increased motor power and new ventilation concept - Robust machine body, free-of-clearance drives and spring length measurement ensure highest quality and precision - High operational ...

Frame manufacturing, Kuhlmeyer type PBA The Kuhlmeyer type PBA has two L/R adjustable grinding units on a gantry beam. The workpiece, here we work on mould frames, will be fixed on a machine table and moved through the gantry. The upper ...

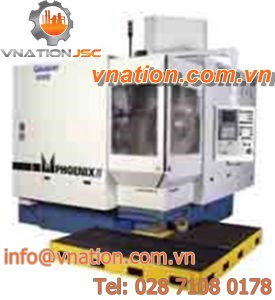

Gleason?s most current inclusion of the PHOENIX?II product line is surely an advanced Bevel Gear Grinding Device that will utilize the brand new monolithic column design. This kind of notion lowers floor space as well as significantly ...

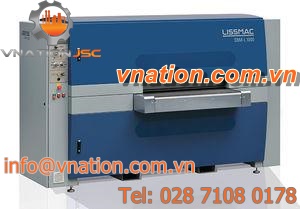

LISSMAC systems for metal processing set benchmarks in innovative sheet metal processing through highly-effective, two-sided deburring and edge rounding of punched, laser and fine plasma cut workpieces using only one work process. Unlike ...

CARBIDE SAW GRINDER MOD.: CSG-660 1) Specially designed for grinding carbide saws easily and efficiently. 2) High accuracy and easy set-up of centerof the blade thickness. 3) Parallelism of saw seat ?0.005mm and with good ...

Distance between centers: 250 mm

X travel: 500 mm
Y travel: 300 mm

UNIGRIND - The integrated machine for stage drill bits The UNIGRIND grinding machine is suited for grinding every type of rotary drill bit consisting of pilot driller and reamers. Every grinding angle needed can be set Always precise ...

Automatic machine specially designed for grinding flat surfaces in continuous process, particularly for the flat sides of knive's handles.

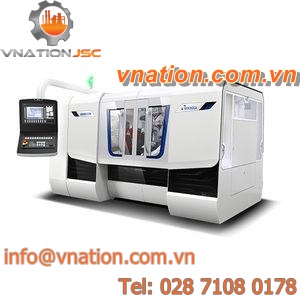

The KRONOS S 250 is designed for plunge cut and throughfeed grinding of workpieces in the diameter range of 1.5 to 35 mm and with a plunge cut width up to 245 mm. The perfect machine for the mass production of small precision workpieces. Machine ...

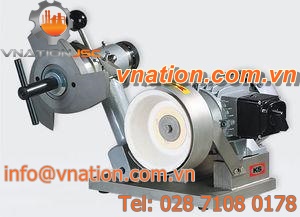

Professional re-sharpening of the insert blades for a parallel knife to the hole plate alignment for KS emulsifiers with cutting housing diameter from 150 - 175 mm, 225 - 248 mm or 320 mm for grinding 3- and 6-winged knife heads with ...

ESP - Grinding machines for flat surfaces Special machines for the continuous process grinding of flat surfaces.

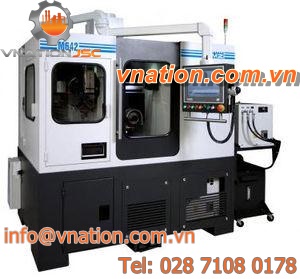

The M642 Evolution is a grinding machine with 7 axis for grinding dental and industrial cutters (rotary cutters). Equipped with funnel magazine for bar sizes and with drum magazine for overend workpieces. Dental cutters and industrial ...

X travel: 300 mm
Y travel: 220 mm
Z travel: 180 mm

X travel: 1300, 700 mm
Y travel: 500, 800 mm

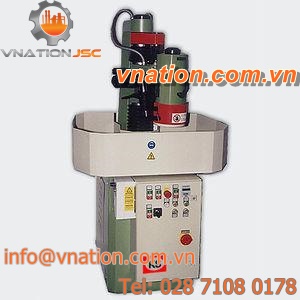

high precision grinding of hole plates with diameter up to 320 mm twin column design with stable cast-iron machine body precise circular table with large splash guard magnetic circular table circular table drive with 0.4 kW

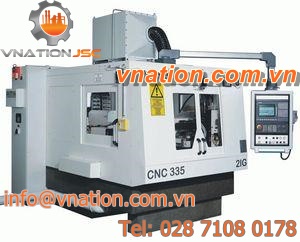

The CNC 335 G Female thread grinding machine has a natural granite machine bed which guarantees high precision. Maximum precision is also ensured due to the CNC controlled radius dresser which has a diamond roller. Metric female threads ...

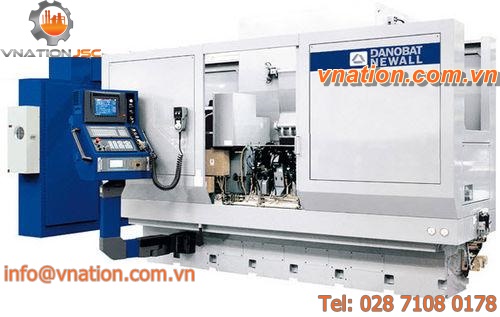

DANOBAT-NEWALL has a vast experience in design, production and re-engineering of High tech Machine tools. DANOBAT-NEWALL offers remanufacturing services tailored to customer requirements that can go from a basic mechanical tune up, ...

Spindle speed: 3 rpm - 35 rpm

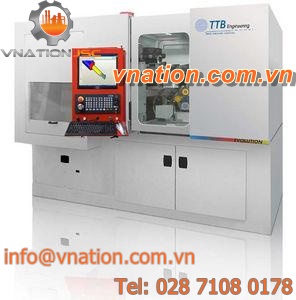

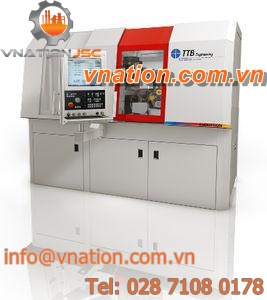

The new design and many new characterstics of the Model TTB Evolution will be on display again at the Grindtec 2016 in Augsburg (Gerrnany). Share with TTB your goals and ask for more information

From the leading company that brought innovations in ophthalmic and precision optic comes the high-production industrial edger with drilling option,the ES-4 by SATISLOH. ES-4 is the newest of its kind,utilizing a reduced shaft diameter, ...

Description The system ATK is an innovative, revolutionary and unique grinding machine, that is able to combine into a single professional machine the capability of sharpening both straight and circular blades. This innovation is made ...

The Model 688 Four Axis CNC TruFlute Helical Grinding System produces straight or helical flutes in one pass and automatically grinds straight and tapered fluted tools such as drills, reamers and end mills. The Model 688 is a rigid and ...

X travel: 290 mm
Y travel: 250 mm
Z travel: 150 mm

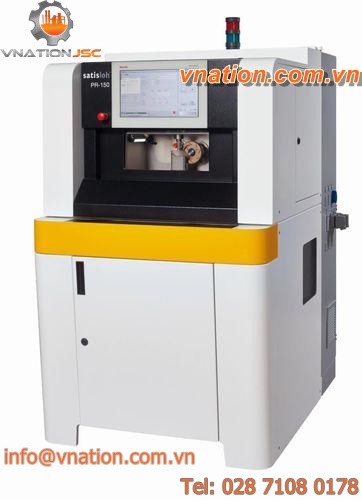

The PR-150-SL guarantees superior precision of prisms and cater to a multitude of surfaces in only a single cycle as well as radii, together with accurate angles and surfaces. Infinite rounding and surfaces up to 360 degrees, this machine ...

Klingelnberg has developed and perfected the dry-cutting process for spiral bevel gears. KIMoS covers all aspects of spiral bevel gear design and optimization throughout the process chain. The entire process chain for ...

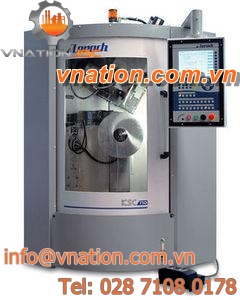

For fully automatic and complete processing coupled with outstanding grinding quality, low grinding, and secondary time, the KSC 710 BASIC is the ideal machine. It is equipped with a powerful direct drive to the grinding wheel to prevent ...

Z travel: 0 mm - 650 mm
Spindle speed: 0 rpm - 10000 rpm
Distance between centers: 14 mm - 750 mm

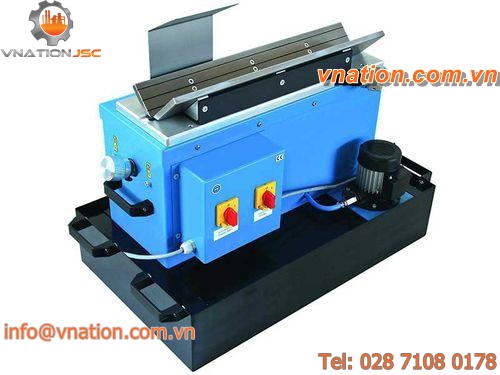

Suitable for precise deburring and chamfering of straight edges at soft and hard workpieces. It is available with wet-grinding or dust extraction device. Application: - Soft and hard materials up to 63 HRC Options: - Mobile ...

Z travel: 0 mm - 400 mm
Spindle speed: 0 rpm - 4000 rpm

Spiral Drill Grinding Machine S-3-50 Field of Application: - Grinding and center point grinding of HSS-spiral drills - By the patented drillgrinding a pointing out is not needed Grinding HSS-drills with the spiral drill grinding machine ...

Z travel: 300, 400, 500 mm
Spindle speed: 0 rpm - 8000 rpm

Universal Flute Grinder (models: UFG-12, UFG-25, UFG-50) Flute grinding is the most time consuming and thus most cost intensive manufacturing step during drill and end mill production. In recent years, grinding machines have become ...

Spindle speed: 2800 rpm

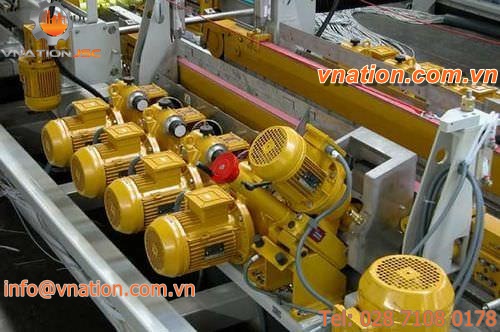

Machine to rectify and chamfer edges on ceramic tiles of various dimensions and thickness. The rectifying process makes the edges of the tile parallel and square. The machine consists of two operat-ing sections equipped with opposed spindles, ...

X travel: 700 mm - 1000 mm
Y travel: 265 mm
Z travel: 250 mm

This new concept in grinding machines was developed for the economic grinding of threads for taps, thread rolls, or other parts requiring a thread with or without relief or precision ring grooves (as used on crush rolls for example). ...

Z travel: 8 in - 63 in

Drill bit grinding machine - For HSS and carbide drills with diameters from 4 to 14 mm - Chamfering of relief angle (rear of drill bit), chamfering of point angle - Point grinding - Free grinding of drill bit center - Optimum grinding ...

SPECIAL FEATURES Total enclosure reducing noise and grinding dust Fully recirculating coolant system Rigid structure incorporating protected grinding wheel spindle and slide Quick set-up time and very ease to use Short grinding ...

M7163 x 12 CNC Surface Grinder Specifications Gross Weight: 13,103 lbs Overall Dimensions: 139"x 85"x 90"

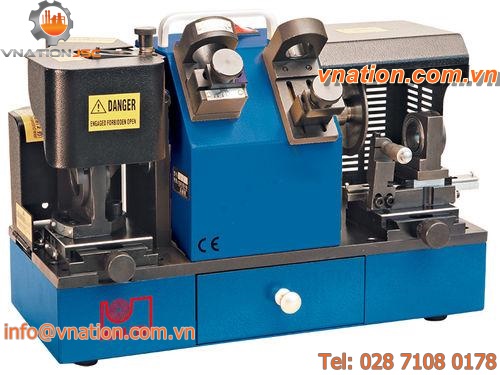

- For grinding of HSS and carbide cutters with diameters from 3 to 14 mm - Grinds 2 to 6 cutter edges (starting at 12 mm diameter) - Easy and safe grinding of circumferential outside spiral cutter edges - Rapid tooling - quick setup of ...

SPECIFICATION: Drill size Point angles (2.5 ~ 51 mm) Straight or taper shank (1 ~ 6 flute) 40? -180? Clearance angle 0? -18?

"Pioneers" of fine grinding process on two-wheel machines are the DUOMAT and ZL models of the Hahn & Kolb series. They have been advanced by the ST?HLI Group and represented thus a successful synthesis of the combined know-how

X travel: 600 mm
Y travel: 400 mm

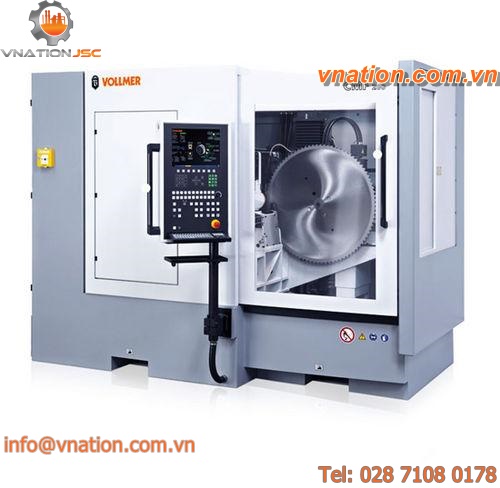

The CMF 200 is a sharpening machine engineered by Vollmer. It is suitable for use in machining the side angle on carbide-tipped circular saw blades. The unit can be used within a diameter capacity range of 200 mm to 840 mm. The machine ...

X travel: 550 mm
Y travel: 920 mm
Z travel: 300 mm

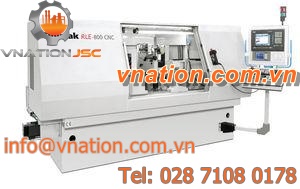

DOIMAK machine for the camshaft grinding, model RLE -800, is last generation machine, which is characterised for its high accuracy and production capacity. It has been designed with the most advanced methods for calculation and CAD design, ...

X travel: 350 mm
Y travel: 220 mm
Z travel: 170 mm
