Tapping machines

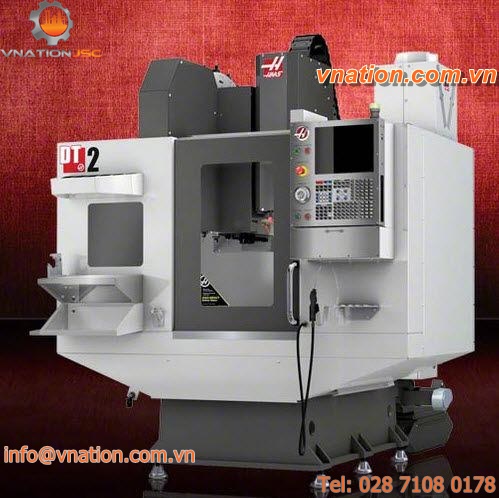

Drill/Tap Center; 28" x 16" x 15.5" (711 x 406 x 394 mm), BT30 taper, 15 hp (11.2 kW) vector drive, 15,000 rpm, 2400 ipm (61 m/min) rapids, high-speed 20+1 side-mount tool changer, power-failure detection module, 1 GB program ...

The drill/tap center in this product series comes with a size of 20" x 16" x 15.5" (508 x 406 x 394mm) and is suitable for various applications in the industry. The BT30 taper and the power of 15hp (11.2kW) for the horse ...

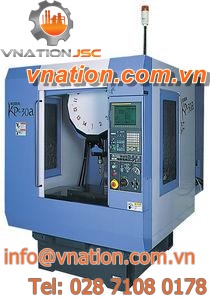

High-Speed Spindle The main BBT30 spindle (two-face contact) prevents the Z-axis displacement and reduces vibrations during high-speed rotations, realizing high-speed, high-precision machining. Direct spindle connection offers minimum ...

The DRILL 300 is designed for multi-setup functions that can be manipulated using its seven CNC axes. Engineered with X,Y,Z and W axes that are capable of support from a tilting table and head, it is ideal for drilling holes in one go ...

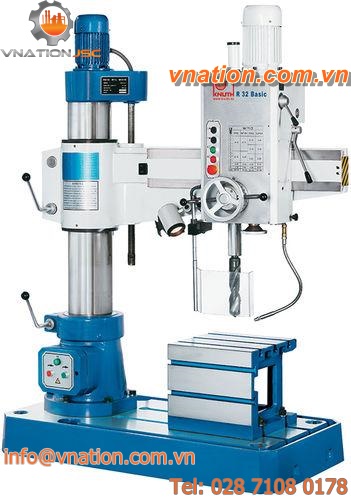

The R 32 Basic Series manufactured by Knuth machine Tools is a type of a radial drilling machine made with a cast iron machine frame. This device is created with an precision ground gear that is used for the low noise level operations. ...

High-Speed Spindle The main BBT30 spindle (two-face contact) prevents the Z-axis displacement and reduces vibrations during high-speed rotations, realizing high-speed, high-precision machining. Direct spindle connection offers minimum ...

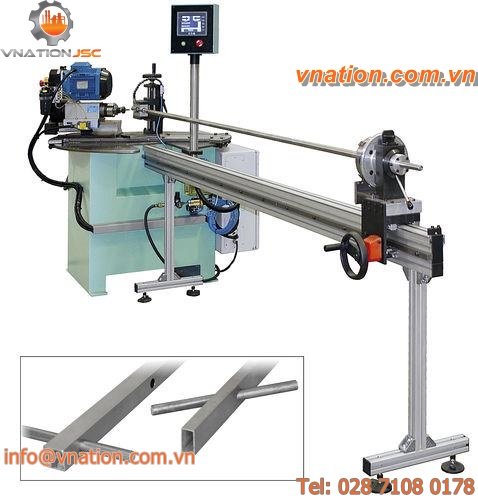

TDM 2 is a drilling machine for round or square tube drilling. This tube drilling machine enables inclined drilling as well as tapping and flow drilling. The two independent drilling units can be set to perform different drilling operations.

Compact and highly dynamic drilling / milling center Solid machine bed made of high-quality Meehanite gray cast iron for optimal absorption of vibrations Highly dynamic drive concept with up to 1.5 G acceleration and max. ...

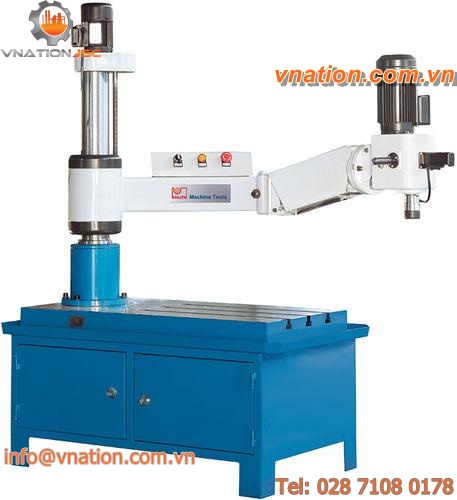

The GTB 1200 is a tapping machine, manufactured by Knuth Machine Tools. The product is made of large and ultra heavy parts that can be machined easily, following the machine set-up table. It is ideal to use in threadcutting. The machine ...

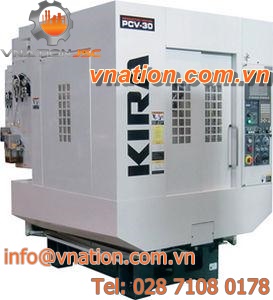

The PCV-30 is an Innovative Performance / New Design PCV series. Advanced Machine, Computer Structural Element Analysis Construction. Packed with features that give exceptional cutting performance, high speed rigid tapping up to 4,000RPM's. ...

Key Features (Drill/Tap) Strong Bed Structure High-Speed Tool Change Time & Chip Change Time Spindle with Speed Ranges from 10,000 to 15,000 rpm Powerful Cutting with Up to 10 hp Motor Rigid Tapping & Direct ...

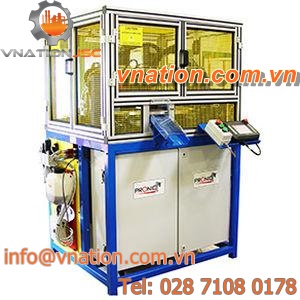

A dedicated and stand-alone means of tapping for parts impossible or undesirable for in-die processing. For manual loading or in-line after the press, based on a turn table, a conveyor or with strip, the PRONIC tapping machines are ...

Rigid tapping 4000 RPM. Direct drive spindle for high speed machining, excellent accuracy and best performance of spindle motor. Optional arm type ATC with high efficiency of tool changing. Standard roller bearings linear ...

1.Controller: FANUC/MITSUBISHI 2.Taiwan Spindle 3.16pcs tool magazine 4.Short delivery time

Software ? Languages: German / English / Spanish (more on request) ? Depth unit: mm / (inch on request) ? Process programs: thread cutting, rethreading, thread forming Option: thread inserts, screwsetting, thread plug gauge ? Grade ...

Software ? Languages: German / English / Spanish (more on request) ? Depth unit: mm / (inch on request) ? Process programs: thread cutting, rethreading, thread forming Option: thread inserts, screwsetting, thread plug gauge ? Grade of ...

ELECTRIC TAPPING ARM MACHINE JT 3750 M8-M36 JT3750 M8 - M36 (5/16"- 1 3/8") Speed: 20-145 Work area :1900mm Spindel :GR3 Product Specification: Triple balanced articulated arm made entirely of aluminum, which guarantees ...

An effective operation of blast furnaces directly depends on an uninterrupted operation of its cast house equipment, including taphole drilling machines. DNEPROHYDROMAСH is one of the leading companies in the area of designing modern ...

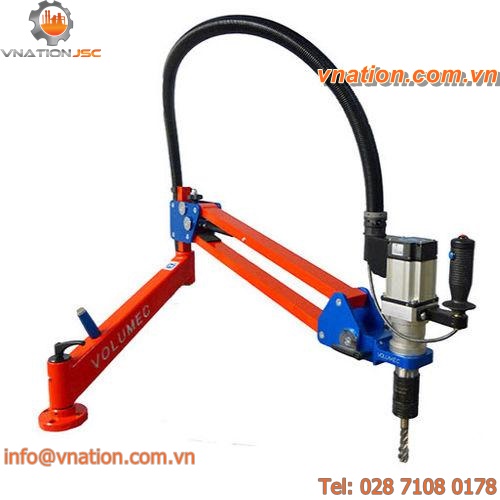

JOYTAP JT3 Triple balanced articulated arm electronic tapping machine. Our experience in the field of mechanical engineering and carpentry of all kinds has led us to develop machines that can reduce work time and increase productivity.

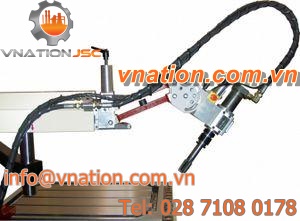

? Pneumatic tapping spindle ? Stretch arm ? Slanted arm ? Table mounting column ? Air unit ? Choose any six safety safety clutch tapping adapters

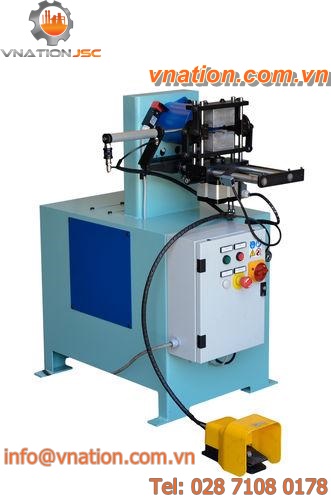

The FIL/R Series of Rotating Threading Machine, is mainly used to thread both straight and conical on broom handles. It is also suitable for use to adjust the device in order to thread various diameters. This machine can be used to operate ...

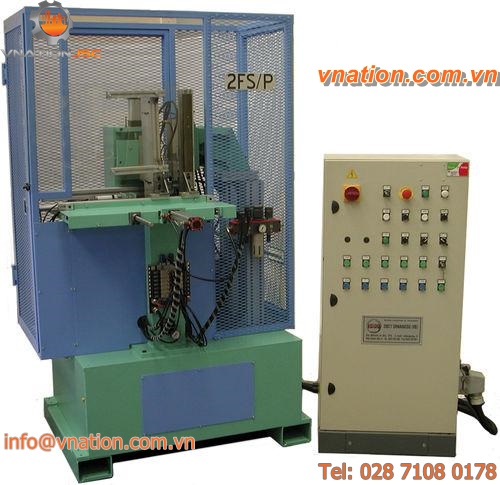

The 2 FS/P Series of Automatic Boring/Chambering Machine, is mainly suitable for paintbrush handles. This machine used to drill, and create the two flaring as well as the chamber on the head of the paintbrush handle. It can generate with ...

The Forus machine, engineered by Garboli, is specifically designed for perpendicular and angle drilling. It is suitable for use on round tubes, rectangular profiles, square tubes and metal plates. The samples can have different sizes, ...

Drilling center, fixed column, travelling worktable structure. Complicated workpieces that need milling, drilling, boring, reaming and countersinking could be finished with one mounting. It is used widely in electronic and vehicle parts industries.

The explorer 1 drilling machine has a 4-axis CNC, of which 2 come with a double-position control so as to obtain high precision. Bar feeding along the x axe is made possible by the automatic control of the clamping rollers locking and ...

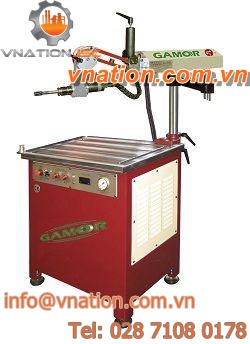

The MT-M16 is a tapping machine from Gamor, It accommodates pressure reaching up to 160 Kg /cm?. Its motor runs at 5.5 CV, and handles voltages of 380/415/440V-III-50/60 hz. This tapping machine uses an electronico speed control, and ...

TAPPING CAPACITY METRIC: M3-M20 INCHES: BSW 1/8 - 3/4 BSP 1/16 - 7/8 TECHNICAL DATA CAPACITY: M3-M20 R.P.M.: 180 a 480 MAXIMUM PRESSURE: 160 Kg /cm? MOTOR: 5,5 CV VOLTAGE 380/415/440V-III-50/60hz ...

TAPPING OF MATERIALS WITH M39 KG/MM?: 120 BRINELL: 352 ROCKWELL HRC: 37 CAPACIDAD DE ROSCADO METRIC: M2-M30 INCHES: BSW 3/32 - 1" 1/8 BSP 1/16 - 1" 1/8 CARACTER?STICAS T?CNICAS CAPACITY: M2-M30 ...

This model is specially indicated for large productions of vertical and horizontal tapping, accurate mechanics, moulds and / or parts requiring a high accuracy in the execution of the tapping, with a full quality guarantee both in the ...

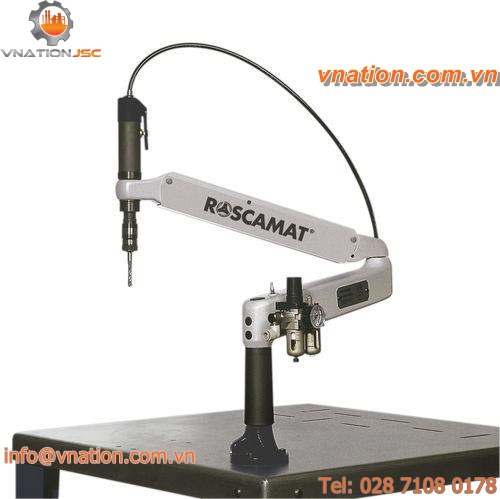

The Roscamat 200 from Tecnospiro is engineered with a pendular parallelogram. This appendage is balanced by a pneumatic spring and a radial arm. The unit attaches the motor head and keeps it orthogonal to the surface. The motor is fitted ...

Diameter: 12 mm - 30 mm

Tapping left and right hand thread in the same time Coolant through the centre of tools Index-table : 180? Load/unload simultaneously with machining The effective and economical solution of very high quality

We have 54 years’ experience on developing and manufacturing radial drilling machines, with world largest production facilities and unique process flows. We mainly supply Z30, Z33, Z31, Z35 and FRD series of drilling machines which ...
