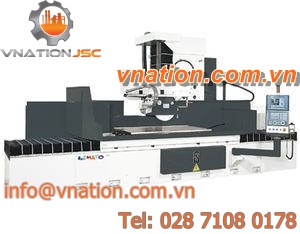

Surface grinding machines

Distance between centers: 250 mm

X travel: 590 mm
Y travel: 570 mm
Z travel: 1660 mm

Distance between centers: 600 mm - 1000 mm

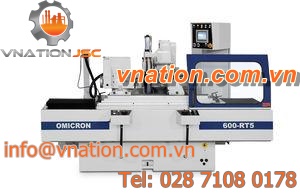

The Omicron RT5 series is a grinding machine that is composed of base, table, workhead and among others. In base, the lubrication plant provides oil to the guides by means of a constant oil flow distributed on the complete length. While ...

Panther 1 multi axis belt grinding machine to grind and finish turbine blades from 50-500 mm length. Ideal for the treatment of : Steam Turbines Gas Turbines Compressors Aircraft Engines Typical applications: The panther 1 was designed ...

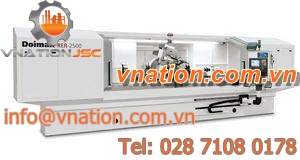

The RER serial belongs to the las generation of CNC grinding machines, designed for the grinding of external threads. Main features: High precision and excellent fiability. Automatic calculus of the wheel profile and of the path ...

Distance between centers: 250 mm

Distance between centers: 200 mm - 600 mm

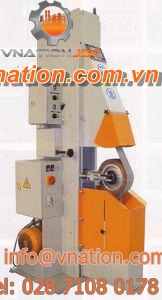

Our panther 1.1 best suits where belt finishing of rotation parts at grain size up to 2000 is requested. Parts like: Crank Shafts Cam Shafts Gear Shafts Piston Rods Hardend Shafts can be excellent and cost-effective ...

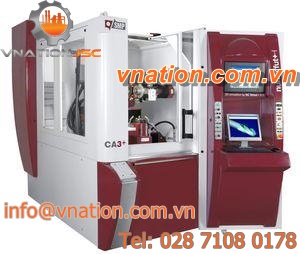

With its vertical tool holder axis, the CA3+ enables a quick and an ergonomic loading of the tool. This machine ideally suits the manufacturing or the resharperning of special tools.

Distance between centers: 60 mm

Distance between centers: 2000 mm - 5000 mm

MicroCenter 21 For highest concentricity requirements Automatic outer diameter and concentricity grinding machine for ferrules, tubes, canons, with a reachable concentricity value from the bore to the outer diameter of < 0.5 ?m

ADVANTAGES : Compact, plug and play : Cube 1,2 meters side. Easy : AVYAC's software with user friendly interface. Ergonomic : No need to open the door to load the drill. Automatic : The loader option (90 drills) is very ...

Spindle speed: 3800 rpm - 20000 rpm

Distance between centers: 300, 700, 500 mm

Distance between centers: 2000 mm - 7000 mm

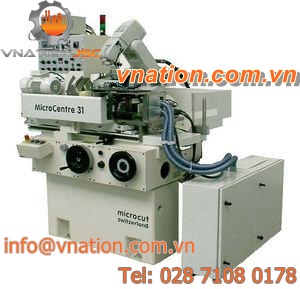

MicroCenter 31 For the machining of glass scribers (flat screen market) Automatic outer diameter and concentricity grinding machine with a 6-axes robot for tungsten carbide and PCD glass-scriber

Speciality Long drills grinding (up to 1m25), especially Gundrills Automatic The robot option allows for automatic loading of gundrills and cylindrical shank drills Simple to operate AVYAC 's software with user friendly interface

X travel: 400 mm
Y travel: 310 mm
Z travel: 400 mm

Distance between centers: 500 mm - 1000 mm

X travel: 520 mm
Y travel: 560 mm
Z travel: 600 mm

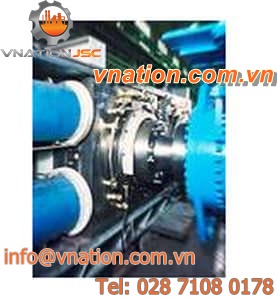

One of the principal reasons for the outstanding success of the high-pressure grinding roll in the cement industry is its low power requirement. Today, this mill is employed all around the world for the grinding of cement raw material, ...

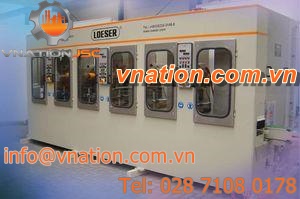

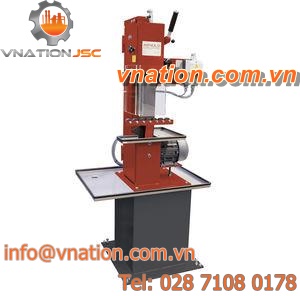

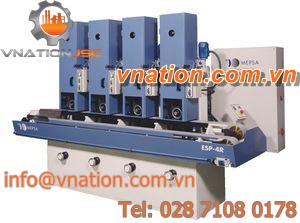

ESP - Grinding flat surfaces Automatic belt grinding machine for flat surfaces in continuous process. ESP can be supplied with several belt grinding heads depending on the quality requiered.

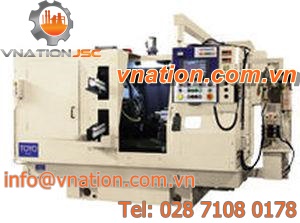

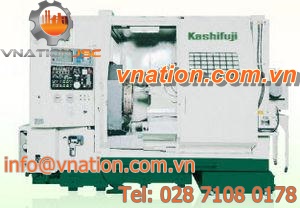

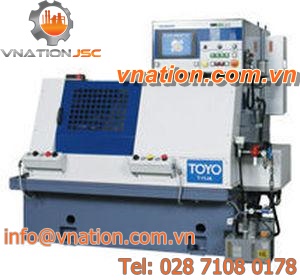

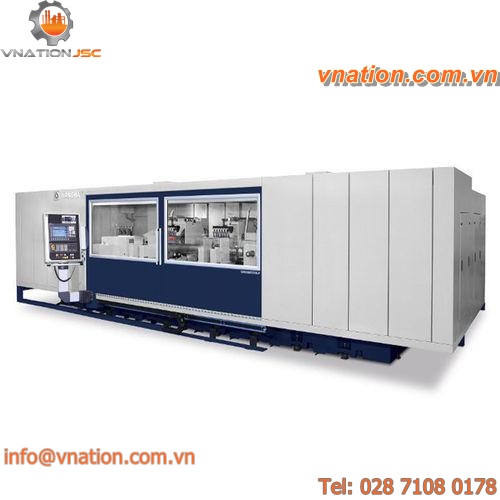

High-performance CNC internal grinding machines capable of continuous grinding of multilevel surfaces and external surface grinding, as well as machining of products with an external diameter of up to 350 mm and an internal diameter ...

Distance between centers: 300 mm - 500 mm

Internal grinding machines combining high precision and high rigidity for superior productivity. Their excellent performance has earned them a large market share in the household appliance and automotive sectors. Five types are available ...

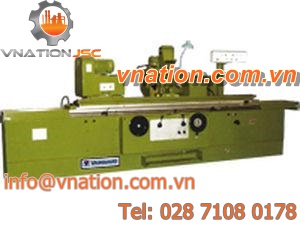

The ME13 series of cylindrical grinding machines are used for the external grinding of the cylindrical and conical surfaces of parts. The ME13 grinders are suitable for use in tool shops, machinery repair facilities and small batch process ...

X travel: 0 mm - 560 mm
Z travel: 0 mm - 400 mm
Spindle speed: 40 rpm - 2000 rpm

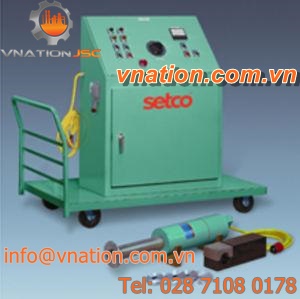

The SETCO!" Spark Erosion Grinding (SEG) System is a portable electronic discharge machining system that precisely removes metal stock using AC current. The SEG process utilizes EDM technology to arc-grind a profile on metal parts. For ...

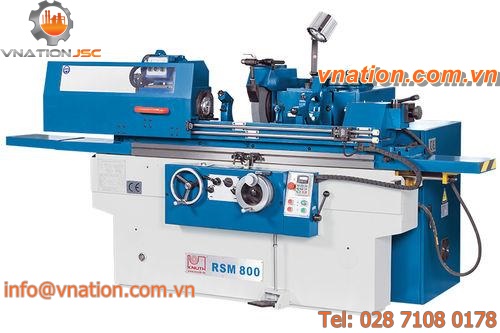

Min/Max External Cylindrical Grinding Diameter w/ steady rest: 0.6" / 5.9" Min/Max External Cylindrical Grinding Diameter, w/o steady rest: 0.6" x 12.6" Min/Max Internal Cylindrical Grinding Diameter w/ steady rest: 1.2" / 3.9" Min/Max ...

The Genesis? 200GX and 260GX Threaded Wheel Grinding Machines combine maximum productivity with minimized idle and set up times. With a two-spindle concept it is the ideal machine for customers in high-productivity, high-quality environments. Highlights: ...

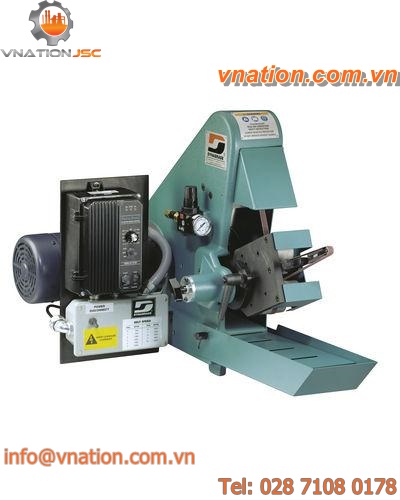

The 64881 is a belt grinding machine engineered by Dynabrade. It is specifically designed for use on various materials, such as castings and forgings, turbine blades, medical implants, investment castings and more. The unit offers ...

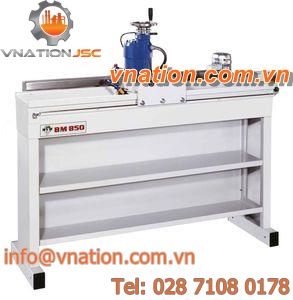

DESCRIPTION The BM series is a versatile small knife grinding machine. It is available in two grinding lengths, either 650mm or 850mm, it has many options and accessories and can sharpen many different types of smaller blades like: planer ...

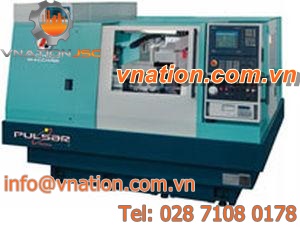

PULSAR C1.60 is suitable for several grinding applications and turns out to be a very versatile machine, which can be easily customized by a wide range of supplementary accessories. Its usage flexibility is assured by the swivelling ...

KS universal grinding and polishing center At any time expandable Inexpensive and space-saving by multi-functionality - fast and simple changes - ideal for small enterprises and small serie manufacturing - suitably proven quality ...

The Titan? 1200G provides new dimensions in gear grinding for manufacturers of large gears who expect gear grinding machines to produce excellent quality gears with considerably increased productivity and maxium process reliability at ...

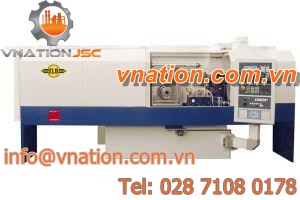

High precision internal profile grinding of stators for hydraulic pumps, using plated or vitrified CBN grinding wheels. The machine utilizes two separate grinding arms, one for roughing and the second for finishing operations with each ...

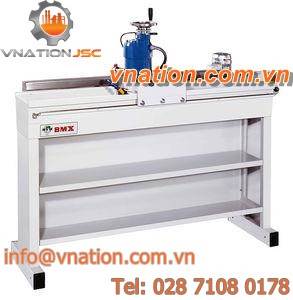

Description The BMX grinding machine, available in versions with length of 650 mm and 850 mm, with automatic downfeed of the grinding wheel and mechanical chuck with T-slot, is the ideal grinding machine for sharpening: Planer knives, ...

X travel: 150 mm
Y travel: 100 mm

The profile grinding center with swiveling grinding head and CCD camera technology was developed in cooperation between Japan und Europe. This technology opens up various new possibilities for automated ?3 D? profile grinding. All ...

Spindle speed: 2905 rpm

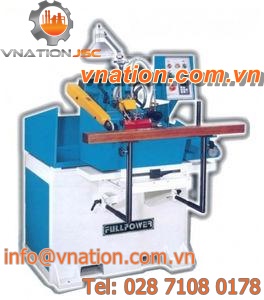

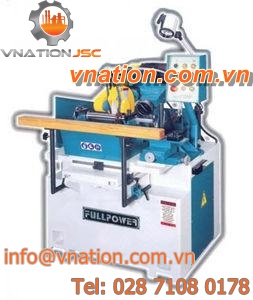

PROFILE COPY GRINDER MOD.: PCG-1010 1) Worktable back-front, left-right are moved with ?9,?6mm linear bearing cross roller rail sets, accuracy ?0.005mm, grinding length is up to 250mm. 2) Grinding wheel head is micro-adjustable ...

Distance between centers: 445, 406 mm

The top-selling optical profile grinding machine in the world with high-precision projector. Fast implementation of the required tasks through teach-in playback technology. Optimum suitability for small batches, single item production and repairs.

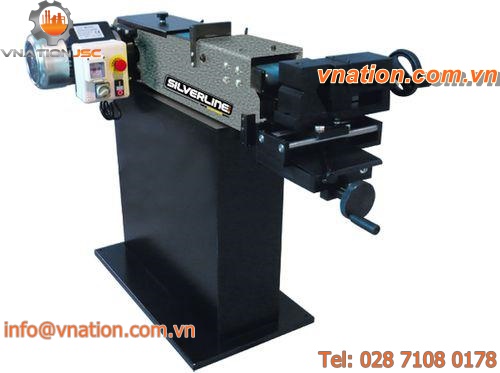

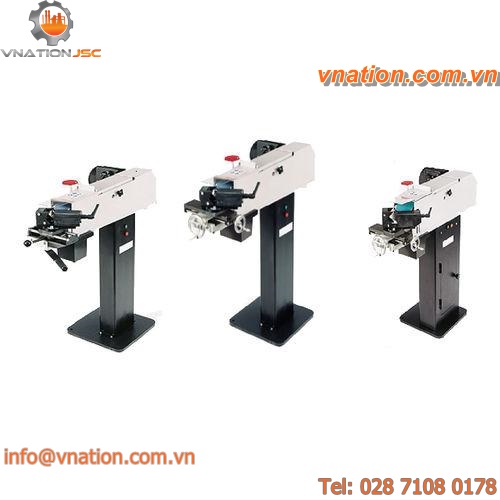

The most robust construction on the market. The jaw is massive. For smaller pipe diameters this can be reversed. Delivery is made via a spindle, this allows an accurate grinding out without effort and under constant pressure. ...

PROFILE COPY GRINDER MOD.: PCG-1212 1) Work table back-front, left-right are moved with?9,?6mm linear bearing cross roller rail sets, accuracy ?0.005mm, grinding length is up to 300mm. 2) Water splash guard and coolant tank are stainless steel.

Distance between centers: 0 mm - 600 mm

The CamGrind S can operate circular and non-circular workpieces with length of 650 mm and height of 175 mm. This machine has diverse features such as single-slide function with 2 grinding wheels, 480 mm ? CBN grinding wheels, WOP-S program ...

Spindle speed: 1600 rpm

I SPECIFICATION: BMT 80150 / 80200 / 80300CNC BMT 100150 /100200 / 100300CNC 1 Grinding surface of table 800 x 1500 / 800 x 2000 / 800 x 3000mm 1000 x 1500 /1000 x 2000 /1000 x 3000mm Table travel 850 x 1600 / 850 x 2100 / 850 x 3100mm ...

The machine comprises of quite a large electro-welded steel base. The fixed shoulder and the pair of linear guides made of anti corrosive material and protected by upper stainless steel guards and bellows, for the movement of the mobile ...

SCHAUDT CamGrind L1 series camshaft grinding machines feature a grinding length up to 1,100 mm, and center heights up to 220 mm, with a grinding wheel diameter of maximum 480 mm, and 80 mm width. They can easily handle various workpieces ...

X travel: 160, 200, 240 mm
Y travel: 600, 1100, 1600 mm
Spindle speed: 25 rpm - 460 rpm

Grinding machine with 4 CNC axes and a total of 6 mechanical axes. This enables universal use to regrind shaft tools, side milling cutters, hob cutters and special tools. Both the breast and the tooth back can be reground. PLC programs ...

X travel: 200 mm
Z travel: 500 mm
Spindle speed: 100 rpm - 750 rpm

Spindle speed: 25 rpm - 380 rpm

Distance between centers: 0 mm - 350 mm
