Standard parts for mold making: Sprue nozzles

The pneumatically or hydraulically actuated machine needle shut-off nozzles type HP are used in processing of thermoplastics, principally with low viscosity materials such as: PA, PPS, PE, POM,PP. In this nozzle?s favour are: Cycle ...

The EXAIR family of Air Nozzles provides impeccable executions of blowoff operations. From the innovative Model 1108SS Atto Super Air Nozzle that packs in a sharp blast of 2 ounces (56.7 grams) in its tiny frame, to the ultra high-powered ...

The spring actuated machine needle shut-off nozzle s type A(S) are used in processing of thermoplastics , principally with low viscosity materials such as: PA, PPS, PE, POM, PP. Finds application in: Packaging, automobile and leisure ...

Whether you?re looking for an effective proto-type option or a solution for a high production single cavity system, the Mold-Masters Accu-Line offers exceptional value in a comprehensive design. Available with our Master-Series line ...

Orifice diameter: 11 mm

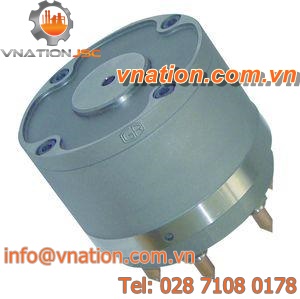

The Melt-Disk offers optimal heat control in the gate area. The disk acts as a ?mini-manifold? in applying heat to the runners right up to the hot tip seals. The Melt-Disk delivers advanced performance with its leak-proof seal. When cooled, ...

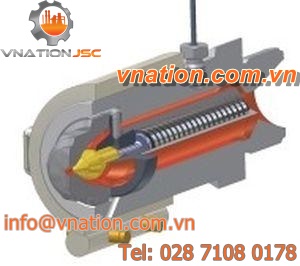

For the plastic processing industry hotset offers with the hotspring? Machine Nozzle (type BMD - formally hotcone) the optimal possibility for optimising the production process. The even thermal processing of different plastics and the ...

Guaranteed to be free of problematic, production-related ?cold slugs?, these particularly cost-effective and space-saving multi-tip nozzles in the OktaFlow? series in either radial or linear design allow direct side gating. Both designs ...

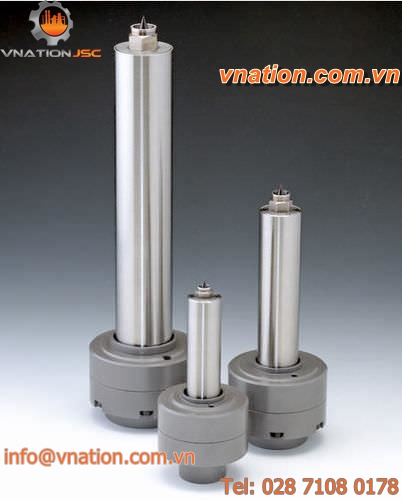

The heated sprue nozzle brings the point of thermal separation to the mold-parting surface and eliminates the major of the sprue excess material. Cycle times decrease up to 40 % and provide better part quality. Up to 40% reduced ...

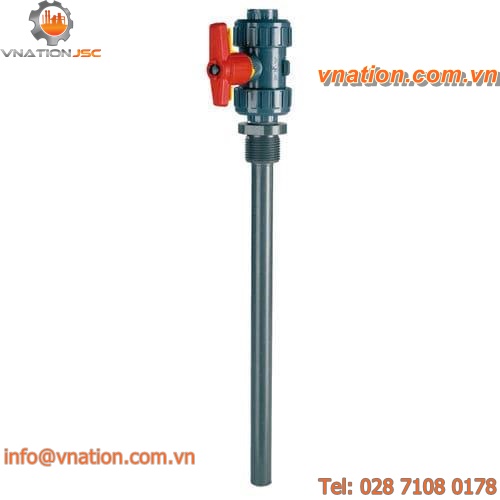

The injection nozzles for chlorine are appropriately combined fittings via which the chlorine solution (hypochloric acid) supplied by the full-vacuum chlorinators is introduced into the water to be treated. The injection nozzle assembly ...

The SMN Injection Molding Static Mixing Nozzle creates homogeneous mixing of polymer melt during injection. The resulting high viscous polymer melt flow is homogeneous with regard to colorant, additives and temperature.

REF. 6895 MULTIPOINT HEATED SPRUE NOZZLE

Orifice diameter: 22 mm

Suitable for processing almost all standard thermoplastics Large selection of nozzles designs for a wide array of applications

Orifice diameter: 4 mm - 25.4 mm

Orifice diameter: 4.5 mm - 12 mm

Orifice diameter: 6 mm - 12 mm

Lever-, hydraulic-, pneumatic- or electrical operated These designs have a flanged operating unit with active pin opening and active pin closing. Ideal for close installation conditions An intelligent pin design (little exposed surface ...

The MT - Multitech Standard is considered as the most commonly used device which has the ability to function in a wide variety of applications and tasks. It consists of 3 nozzle sizes including the MT22, MT29 and MT39. The MT22 is built ...

The Multitech Fast product line is ideally used in dealing with applications that are concerned with operating at fast cycle times below 8 seconds. This unit allows operators to deal with such processes without compromising the quality ...

The Rheo-Pro? M05 Model, manufactured by Mold Hotrunner Solutions, is a multi-point nozzle which features a space-efficient yet low-cost design. This instrument is specifically applicable for small as well as for micro-molded plastic ...

Orifice diameter: 0.7 mm - 1 mm

Orifice diameter: 4 mm - 22 mm

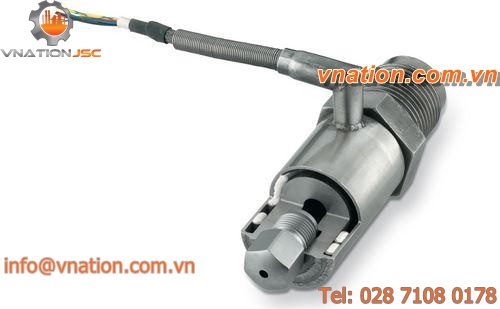

More recent technologies for the more environmentally compatible use of large engines include gas and dual-fuel operation. The internal gas mixture formation from gas injection at 250 bar in combination with a diesel oil pilot injection ...

Orifice diameter: 0.3 mm - 30 mm

The all-rounder increases flexibility In process engineering, the prevailing conditions change frequently. For this reason, SCHLICK Multispray can be used with all current atomisation technologies for two-substance nozzle (flat spray ...

E.M.P. srl offers sprue multiple injection nozzle, which has dimension of129 mm x 73 mm x 33 mm manifold. It is also equipped with mini tubular heaters. There are also available small nozzles model UGCL2001MA. This type is the one with ...

This sprue multiple injection nozzle is developed by E.M.P. srl. It is a direct injection nozzle specifically designed to cater multiple cavity applications and not for color change. In addition, the nozzle is suitable to aim a nearly ...
