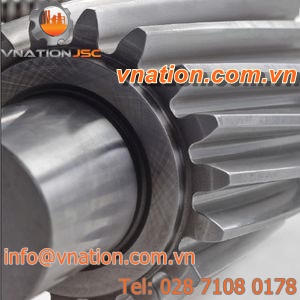

Technical Details With more than 1000 girth gears sold over the world FLSmidth MAAG Gear is a leading supplier in the cement and mineral industry. Technical description As member of AGMA (American Gear Manufacturers Association), we ...

Atlanta’s HPR - High Precision Rack is manufactured out of carburized, 16MnCr5 materials. The tool showcases hardened teeth induction systems that are ground on all sides after the hardening processes. It features a maximum pitch ...

The Precision Bevel Gear by Reliance Precision Limited is mainly designed to provide a good quality performance and functionality. It is built with a single gear precision to AQ10 which is ideally provided in pairs. The Precision Bevel ...

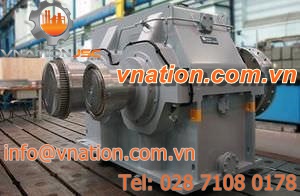

MAAG? WA one-stage gear unit Parallel cylindrical wheel reduction gear units, type WA, are designed for torque transmission from electric drive motors to ball, rod, SAG, AG or other types of horizontal mills. Technical Data Gear wheels All ...

90° and 180° version material C45 Teeth induction-hardened and ground Ground on all sides after hardening Total pitch error GTf/1000 ≤ 0,048mm Tooth thickness tolerance: -37µm Module 2 to 4 helical toothed 19°3142" Pitch ...

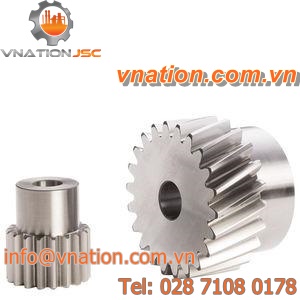

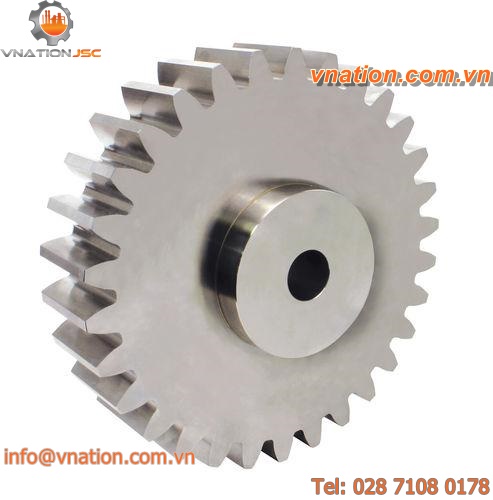

NEW FOR 2016! ENGRENAGES HPC has now added spur gears with modules from 3 to 6 to its catalogue. General characteristics: - Made from C45 steel - Pressure angle 20? - N? of teeth: From 12 to 48 (depends on module) - Supplied ...

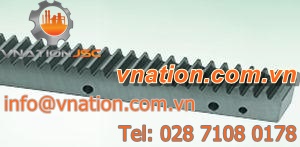

The BR, Basic Rack is manufactured out of C45 material, and features milled teeth with total pitch error of GTf/1000 ≤ 0.150mm, thickness tolerance of -110µm and 19°31’42" helical and straight toothing in addition ...

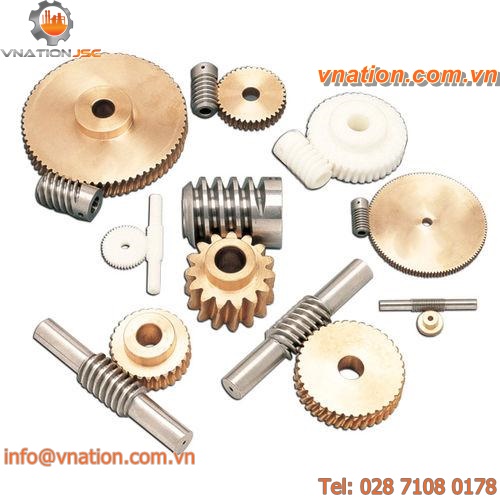

Engrenages HPC has a full range of worms/wheels with modules in the range of 0.4 to 4. Worms are available either with shaft or bore. They can be in steel, hardened steel or machined Delrin. Lead angle is right handed, with left handed ...

The Ultra-High Precision Rack and Pinion Drive System from Atlanta Drive Systems can be used for rack and pinion applications, which require an ultra-precise positioning and repeatability. The system backlash can be removed with the two ...

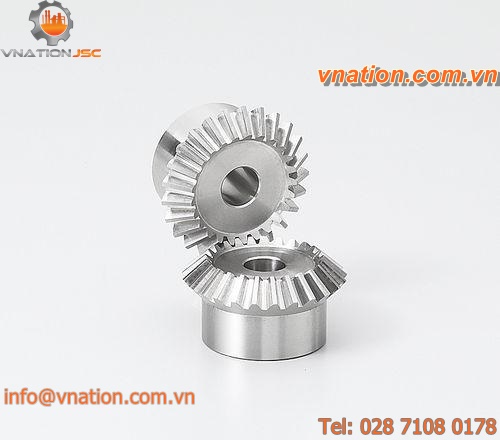

The Engrenages HPC are equipped with a full-range of bevel gears. Those include the C43 steel, that contains 16 teeth, and module from 1.5 to 5. Second is the 60C40 steel, that has a 15 gleason-type of teeth and a module from 0.8 to 6. ...

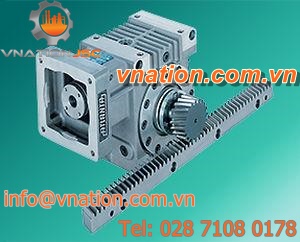

Atlanta's High-Precision Rack & Pinion Drive Systems use planetary and servo-worm reducers. These reducers have backlash levels to support a hardened and ground pinion. The system also employs a hardened and ground rack. The drives ...

The ZR, ZTR series is manufactured by Atlanta Drive Systems. This high-performance rack-and-pinion drive system, has a nominal transmission ratios of i= 4:1 to 100:1, and maximum thrust force of 28200 lb. It is available with helical ...

Atlanta presents medium-precision rack and pinion drive systems. The systems are based on Atlanta's precision planetary and servo-worm reducers for solid support and driving a hardened & ground pinion. These systems utilize Quenched ...

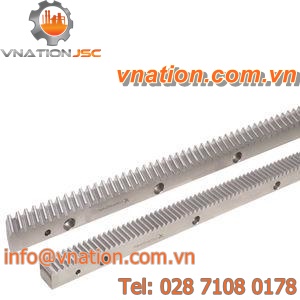

Racks - Stock Programme: Racks Ground, Straight & Helical, Toothing Quality 5 - NEW Racks Ground, Straight & Helical Racks Quenched and Tempered, Straight & Helical Racks Induction Hardened, Straight & Helical - incl. ...

Gambini Meccanica S.r.l. is glad to inform that now, we are able to produce a very special and particular type of Rack: “MAGNUM”. The most important technical characteristics are: Series: 100 / 100H Quality: 5 ...

Length: 1000 mm - 3000 mm

Racks - Custom Made Parts: Due to our extensive manufacturing capabilities, we offer a wide range of custom made racks: Racks with Ground Teeth - Straight or helical teeth - Max. length is 3 000 mm - Gearing up to module 16 - Racks ...

Master Gears - Product Range: Type: Material: steel 1.7131 [16MnCr5] Carburized Teeth induction hardened 60 HRC Ground teeth Straight teeth or Helical, left hand, helix angle 19? 31?42?? Pressure angle 20? Toothing quality 6 e25 Module: ...

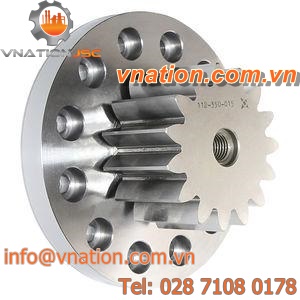

NEW! Flange Pinion Material: steel 1.7131 [16MnCr5] Case-hardened 58+4 HRC Straight teeth or Helical, left hand, helix angle 19° 31´42´´ Pressure angle 20° Toothing quality 6 e25 Module: 2 - 5 In addition ...

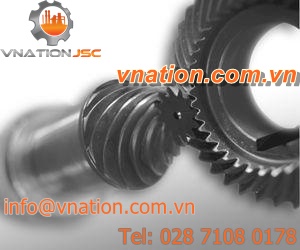

These Bevel Gear Sets are made specifically in spiral-toothed designs. They are made from high quality standards and supplied from stock. These are enclosed within a housing to avoid excessive sagging of the shafts during operations. ...

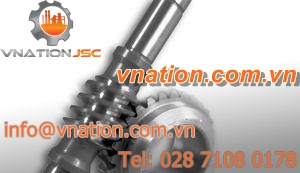

This worm gear sets from Atek is designed for applications where series-fabricated gearbox is not needed. These sets' principle is suitable for coping with minimal adjustment errors in assembly, without decreasing the tools' efficiency. ...
