Differential pressure flow meters

Process temperature: -15 ?C - 70 ?C

Process pressure: -20000 Pa - 20000 Pa
Process temperature: -20 ?C - 50 ?C
Flow velocity: 3 m/s - 50 m/s

The operation of the Oriflow Compact Orifice is based on the measurement of differential pressure, which is created across that section of a pipe where its cross section is reduced. This is then taken as a measure for the flow. Reliability ...

Application The flow switch body houses a spring-loaded valve plate (vane) which pivots off-centre in a hemispherical cavity. Thus the vane and cavity have a variable area orifice relationship. This gives both high flow range and a ...

The Venturi Differential Pressure Flow Meter is made from A105 and steel and stainless steel. Special materials can be availed upon request. The sizes available are 3"~42" and the beta ratio ? is 0.3~0.75. The minimum recommended Reynolds ...

Process temperature: 0 ?C - 50 ?C

Nominal diameter: 125 mm - 315 mm

Nominal diameter: 125 mm - 315 mm

Flow rate: 57 m?/h - 905 m?/h
Pressure: 0 Pa - 60 Pa
Nominal diameter: 100 mm - 400 mm

Process pressure: 0 Pa - 1600000 Pa
Process temperature: 40 ?C - 200 ?C
Volumetric flow rate: 44 m?/h - 29653 m?/h

Process temperature: -20 ?C - 40 ?C

Compatible with the majority of pitot tubes and thermocouples on the market, Flowtest St performs the measurement and records velocity, temperature and pressure point-by-point. In accordance with UNI EN 13284, ISO 9096, UNI 10169, USEPA ...

Process pressure: 10 bar
Process temperature: 70 ?C
Volumetric flow rate: 7200 l/min

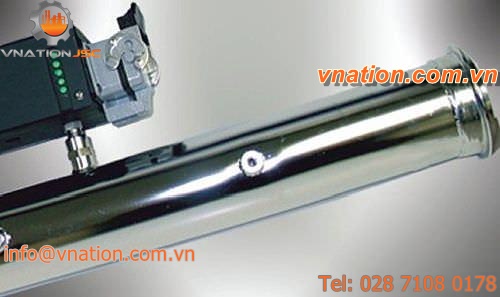

The SEMTECH-FEM is a brand new fuel economy meter with accuracy that is yet to be surpassed coupled with ease of access. The yet to be patented design is a perfect blend of high speed, high performance, exhaust flow meter with CO/CO2 ...

EFM-HS is a system that is able to internally sample differential pressure channels, at frequencies of up to 2,500Hz, accounting for every pressure pulse from the engine from idle to the maximum rotational speed. In addition to this, ...
