Chamfering machines

The CD 350 H is ideal for chamfering and deburring cylindrical spur and helical gears in a single operation before heat treatment. Moreover, cylindrical spur and helical gears can also be simultaneously chamfered, rolled and deburred ...

The 45? | CB-01 Series of Pneumatic Chamfering Machine, manufactured by Nitto Kohki Deutschland, is mainly used for chamfering machine and mold component parts. This machine needs a 6.8 mm diameter hole for chamfering during operation. ...

Chamfer width and chamfer angle can be adjusted precisely and reproducible. Precise working thanks to great support edge. Indexable insert is simple to change and to adjust (4-side blade) and practices good, efficient economy. Pipe outer ...

Handy quality tools for simple and fast external chamfering (15?) of pipes. Plastic pipes ? 16?250 mm, ? 3/4?10" Wall thickness ? PN 16.

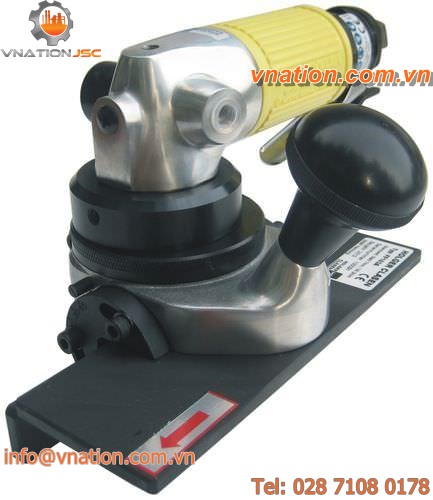

The CB02 is an edge milling tool from Holger Clasen, and can be used for internal and external chamfering of curve-lines. It can easily be positioned continuously based on the chamfer angle. There is an option to accurately adjust ...

h The UZ 15 shears the bevels ready for welding on the linear plates of any type of shearable materials from 5 to 40 mm. in thickness, with a minimum width of 70 mm. and minimum length of 150 mm. i bevelling angle is possible to adjust ...

The Chamferingbreton BC provides rectifying, and chamfering of lines for marble and granite tiles. The unit functions through the use of the chamfering spindle, and the rectifying spindle. The chamfering spindle operates with pneumatic ...

Rotational speed: 3500 rpm
Power: 0.37 kW

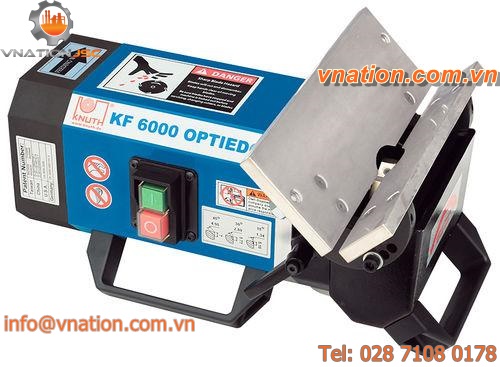

Compact, powerful servo-motor, infinitely variable from 2000 to 6000 rpm - Proven under rough, commercial use conditions - For deburring, chamfering, bevelling, and cost-effective weld seam preparation at straight workpiece edges - One ...

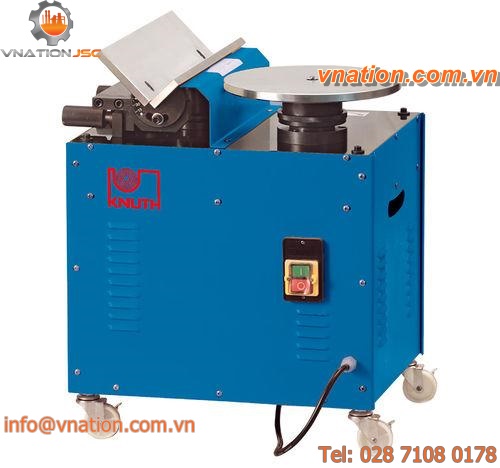

Universal functionality for precise bevelling of contours and edges - Beveller combination for production and workshop operations - Precise vee-block gap adjusts from 15 to 45? for chamfering, deburring, and edge bevelling - Vertical ...

Power: 1.5 kW
Chamfer width : 32 mm - 40 mm

Chamfer width : 6 mm - 38.1 mm

Chamfer width : 6 mm - 38.1 mm

Chamfer width : 8 mm - 50 mm

Rotational speed: 0 rpm - 750 rpm
Power: 4 kW
Chamfer width : 5 mm - 36 mm

Rotational speed: 750 rpm
Power: 4 kW
Chamfer width : 5 mm - 33 mm

Power: 1.48 kW
Chamfer width : 58 mm - 219 mm

Power: 0.37 kW
Chamfer width : 11 mm - 28 mm

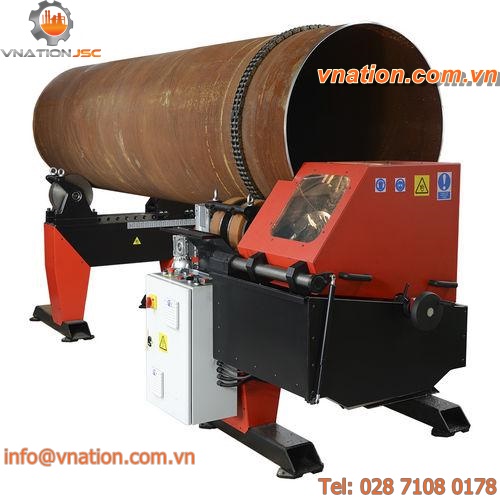

PRO 40 PBS is designed for beveling and facing pipes, tanks or tubes in a range of diameters from 200mm to 1000mm (8-40). High-speed rotary milling head with replaceable inserts enables effective and efficient machining with bevel widths ...

Rotational speed: 500 rpm - 2920 rpm
Power: 7.5 kW
Chamfer width : 30 mm

Power: 450 W

Single Head Chamfering Machine is used for chamfering pipe or pipe end. One cutter with 3 knives. Chamfer outer and internal angle of pipe at the same time. Chamfer end of pipe in one time, it's especially suitable for large ...

1. Tee Chamfering Machine is used for chamfering pipe or pipe end with three head. 2. Each head with one cutter, and 3 knives in each cutter. 3. Each head can chamfer outer and internal angle of pipe at the same time. 4. Chamfer ...

1. Elbow Chamfering Machine is used for chamfering pipe or pipe end with double head. 2. Both head with one cutter, and 3 knives in each cutter. 3. Each head can chamfer outer and internal angle of pipe at the same time. 4. Chamfer ...

Chamfer width : 15 mm
