Centrifugal Casting Machine / For Dental Applications

centrifugal casting machine / for dental applications

SuperCast D series

Vnation JSC

centrifugal casting machine / for dental applications
Contact us for advice solutions and equipment provider
captcha contact product

  • Options:

    centrifugal, for dental applications

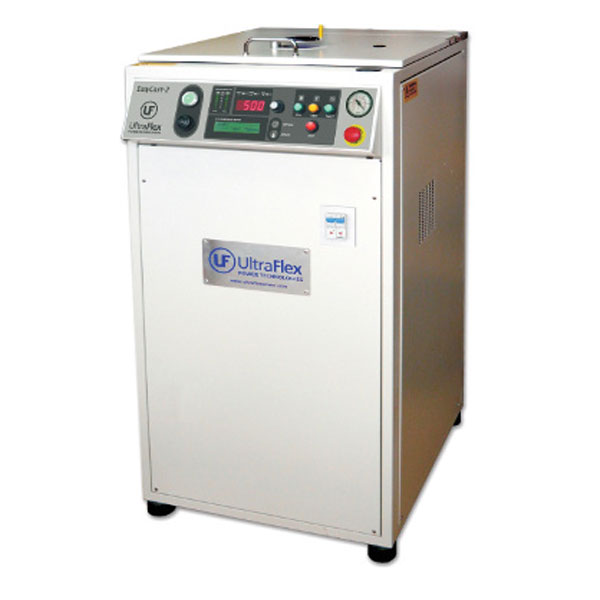

EasyCast EC


Cast all dental alloys: precious and non-precious. Automatic frequency setting.

Highly efficient technology. Low energy consumption.

Fast melting by Induction heating generator utilizing the latest technology.

Complete protection from oxidation by using vacuum and gas argon atmosphere.

Reliable, modular system, easy to maintain and service.

Error and status messages for easy service and remote diagnostics.

FEATURES

* Advanced digital control panel with status and diagnostics messages

* Centrifugal injection casting with pneumatic movement for fast coil decent

* Integral water cooling system with pressure and water temperature control

* Centrifugal arm balancing with adjustable counterweight

* IR temperature reader/ regulator (EC-1T and EC-2)

* Melting power regulation

* DC motor with reduction gear: 0.1 to 1 sec.

* Max rotating speed ? 500 turns/min. Rotation time pre-set at 40 sec.

* Auto locking of the chamber lid during centrifugal phase for maximum safety

* Normal atmospheric operation

* Integral vacuum pump (EC-1V and EC-2)

* Inert (Argon) gas circuit included (EC-2)

APPLICATIONS
Casting-centrigugal


BENEFITS

* Improved energy efficiency

* Higher degree of controllability

* Increased repeatability

* Low maintenance requirements

* Increased productivity
