Assembling machines, screwing machines

Automatic, process-sure, fitting of minute O rings 1,7 x 0,7 mm with the automatic machine MOSA-800-RT4 made by us. Because of the modular technique, we can change over the automatic machine less than 30 min. so that we can gentle, torsion- ...

Crimping force: 33 kN

The Rotosonic 250T series is manufactured by Cera France, and is an ultrasonic seaming machine that has a rotary process, which enables an excellent sliding of the fabric to get waterproof welding with a width of 8 mm. It has a speed ...

Crimping force: 0 kN - 1000 kN
Diameter: 0 in - 1 in

The SPIROL Model PMX Extra Heavy Duty Manual Pin Inserter is ideally suited for low to moderate levels of production for assemblies that require insertion force up to 26.6 kn (6,000 lbs). The Model PMX easily accommodates quick change-overs. ...

To produce cages up to 12 m length, for piles with a diameter from 300 mm to 1400 mm and spirals from 8 to 16 mm in diameter.

The OMEC SCA1200 automatic carpenters clamp for drawers was designed to assemble drawers with five separate elements, dovetails or lockpins-type drawers. The machine is equipped with a numeric control that lets you automatically adjust ...

Clinching is an innovative manufacturing process, aimed at the junction of sheet metal through a cold plastic deformation. This manifacturing process provides more considerable advantages than traditional technologies used to date ...

Automatic assembly machine for automatic loading and fitting of outside O-rings 3,5 - 30,0 mm by short-term changeover.

It is a semi-automatic screwing station able to screw handles on cookware. It is a flexible machine, easy to use and developed to guarantee a high output. Handles and cookware positioning operation is carried out by the operator, while ...

Overview The Uni-A is a new generation crimp applicator for use in both automatic or semi-automatic benchtop crimping machines. With its innovative uni-body design, the Uni-A universal or mini-style applicator guarantees highest precision. ...

Pressing force: 491 kN - 1962 kN

The Model CRD Semi-Automatic Dual Pin Inserter is based on SPIROLs standard Model CR design and is a very strong and stable dual vertical pin insertion machine. Able to install two pins simultaneously, it is ideally suited for moderate ...

Pressing force: 7.5, 5.6, 3.7 kN

TruTool F 300 closes Pittsburgh seams in straight or bent ducts in an independent roll-glide process. The sheet thickness range extends from 0.75 mm to 1.25 mm construction steel. The seam closer works conveniently and quietly; the infeed ...

??????For single profile processing. Automatic screwing of the reinforcement profile by means of foot pedal switch. Adjustable according to different profile cross sections. Pneumatic clamping during processing. Automatic ...

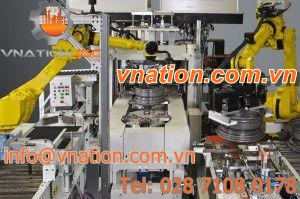

Wheel assembly line The final step of the rim production process is the assembly line. This process starts with disc and rim orienting. The second step is the Assembly Press where a disc is assembled to the profiled rim, followed by ...

Pressing force: 785 kN - 2943 kN

Diameter: 18 mm - 42 mm

Titus engineers can provide solutions to the most demanding challenges in automated assembly of precision components. The machines are designed to improve productivity and product quality in a wide range of industries. Work stations ...

The Mikron G05? linear assembly cell is based on the use of standardized building blocks which offer flexibility and modularity. The proven and stable G05 platform ensure speed, precision and reliability of your automation solution. The ...

Work stations are located around a rotary indexing table. Automated quality check can be positioned on all workstations. Composition of two or more rotary indexing tables allows for compact design and more sub assembly stations when space ...

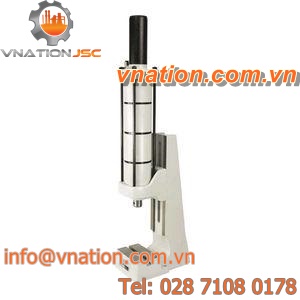

Features the narrow profile Model 220 press/thruster and Dynamic Process Controller. Like the Model 210, the Model 220 can be used as a benchtop press or as a thruster mounted in multihead or automated systems. Narrow 4.5" (114mm) ...

Pressing force: 100 kN - 200 kN

Automatically inserts corners into both ends at once and crimps them into place. The optional adjustable model accepts 4- to 6-foot sections. Rigidize Duct Flanges Strengthen Duct-Connections Strengthen Duct Seams Reduce Duct Assembly ...

Pressing force: 250 kN - 2000 kN

This spindle combines user-friendly, function-oriented configuration with compact construction. The maintenance-friendly design makes it possible to reduce downtimes for maintenance and retooling to a minimum. The latest production processes ...

Lama FastFit machine is a solution for factory insertion of cams and dowels. It can be integrated into the existing panel processing lines or used on a stand-alone basis. Key features - modular construction - flexibility of throughput ...

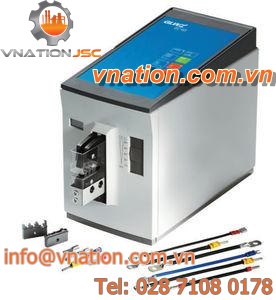

JQ-1 Full Automatic Terminal Crimping Machine Product Info COMPACT AND HIGH SPEED AUTOMATIC TERMINAL CRIMPING MACHINE.HIGH PRODUCTIVITY AND RELIABILITY WITH SERVO MOTOR AND FEEDBACK CONTROL.THE OUTSTANDING PERFORMANCE OF THE MACHINE ...

Crimping force: 8140 kN
Diameter: 350 mm

The Automatic Tubesetter is an industrial assembly tool that inserts a fitting into the end of a flexible tube automatically. This unit uses smart relay technology and pneumatic action to achieve precise repeatable action. Saves operators ...

Crimping force: 784532 N
Diameter: 4 mm - 43 mm

Assembly and inspection processes meet highest requirements of precision Flexibility for several part types by intelligent changeover conception Short cycle times Tracing of product data while the complete assembly process

Diameter: 8.5 mm - 50 mm

Pressing force: 10 kN - 30 kN

The pin inserter is an off-line semi-automatic machine specially designed for assembling both PVC and aluminium roller shutters. It can work with any slats between 600 and 3000 mm long. It is a modular system and can include the following ...

Flexible convertible line for the assembly of 5 several product types Fully automated function control of the remote control by means of a force controlled actuator for buttons, knurled wheel and scroll wheel Fully automated ...

automatic assembly machine 3ways stopcock functioning based on the use of a rotary table 16 positions, working in double. Productivity 3.600pcs/h Assembly processes fully automated. Quality check foreseen: - components presence ...

Crimping force: 132 kN
Diameter: 37 mm

Crimping force: 882599 N
Diameter: 6.8 mm - 47 mm

Specifications Joins the corners of aluminum profiles by crimping the corner of the profile into the wedge. Hydraulic operating system sustains high pressure power. Hydraulic clamps enable maximum profile fixation. Ability ...

Thermal Presses heat the staking post/insert while applying pressure axially to permanently set the parts. Advantages of the thermal heat staking/inserting process include: Reliable permanent inserts No particulates or noise Multiple ...

Crimping force: 1863 kN
Diameter: 113 mm

The complete processing equipment for crimp and insulation displacement technology (IDT) connector systems. Depending on your needs, choose from manual, semi and fully automated solutions for low, middle or high volume production.

For single profile processing. Automatic screwing of the reinforcement profile by means of foot pedal switch. Adjustable according to different profile cross sections. Pneumatic clamping during processing. Automatic ...

Crimping force: 0 N - 10 N

Pressing force: 150 kN
Opening: 240 mm - 1550 mm

Crimping force: 1677 kN
Diameter: 67 mm

For assembling LCD cell panels and back light units in the TFT LCD module production process, this system has an ergonomic design and optimal layout to maximize production efficiency.

Pressing force: 60 kN

SEALING TECHNOLOGY WITH NEW DIMENSIONS The automated sealing of insulating glass units is a crucial step in improving product quality and increasing the number of produced units. As a customer of Bystronic glass, you can choose between ...

IMPI-34 The Mikron IMPI-34 refill assembly machine has proven to be a highly reliable, easy to operate and extremly productive refill assembly machine. This machine is especially suited for economical capillary refills. It assembles the ...

The Fittingshaper contributes vitally to reduce the leakage rate in the ventilation system, resulting in reduced energy consumption costs! The Fittingshaper is a flexible machine made for mounting rubber gaskets to fittings in small ...

This production line carries out the automatic assembly of ball valves in sizes: 1/4 "+ 3/8" + 1/2 "- 3/4" + 1 ", with 2 different types of lever. It consists of a sturdy electrowelded structure with 10 stations equipped with a mechanical ...

The Ball Valve Assembly Machine, manufactured by Mensi A., is an automatic assembly equipment for ball valve bodies. This machine consists of an electromechanical table having twelve stations and complete with processing housings. The ...

DYNAMIC INTERACTION OF POWER AND PRECISION The units are assembled in the penultimate step of insulating glass production process. The correct amount of pressure and utmost accuracy are both crucial at this point. With Bystronic glass ...

This complete plant allows the assembly and testing of residential gas meters fully automatically. The entire system is constituted by 8 machines in line connected by a pallet transport system and a storage unit for the polymerization ...
